Dovedale Estate Fencing/ Welded Panel Metal Railing
Verified by manufacturer 3 months ago
Estate fencing.
Application
Suitable for:
- Country estates.
- Parkland.
- Wildlife parks.
- Farmland.
Description

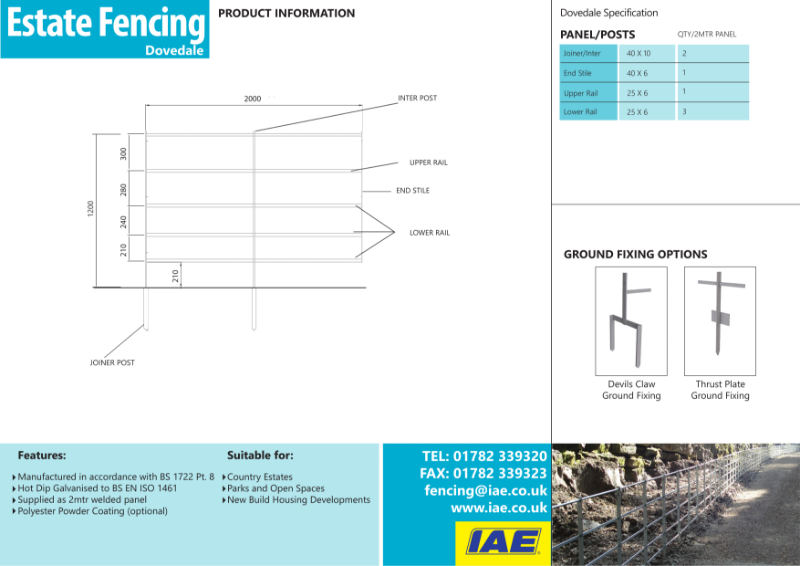

Estate fencing supplied as a 2000 mm wide welded panel, 1200 mm high as standard with a choice of ground fixing options.
Features and benefits:
- Manufactured in accordance with BS 1722-8.
- Polyester powder-coated option available.
- Low security level.
- 1200 mm and 3600 mm wide single leaf gates and kissing gates are available from stock with other sizes available on a made to order basis.
- Laser cut and robotically welded using modern folding and bending machines.
General information
Color | Silver Other |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | 2000 mm |
Height | 1200 mm |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q41/135 Proprietary protective barriers Q41/130 Protective barriers Q41/110 Pedestrian restraint systems in metal Q40/430 Proprietary fencing Q41/130 Protective barriers Q41/110 Pedestrian restraint systems in metal |
Specification data - Metal post and rail barrier systems
Standard | To BS 1722-8. |
Posts | 40 x 10 mm (flat set). 50 x 10 mm (flat set). Manufacturer guidanceMild steel. |
Rails | 20 mm diameter (top rail). 25 x 6 mm flat (lower rail). Manufacturer guidanceMild steel. |
Site applied finishes | Hot dip galvanized. Guidance for specification option: To BS EN ISO 1461. Polyester powder-coated. Guidance for specification option: Insert colour requirement. |
System accessories | Not required. 1200 mm single leaf gate. 1200 mm kissing gate. 3600 mm single leaf gate. 3600 mm kissing gate. Bespoke single leaf gate. Guidance for specification option: Made to order. Bespoke kissing gate. Guidance for specification option: Made to order. |
Ground fixings | Devils claw ground fixing. Thrust plate ground fixing. |
Centres | 1000 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.16 kg CO₂ eq/unit |
Recyclability | 100 |
