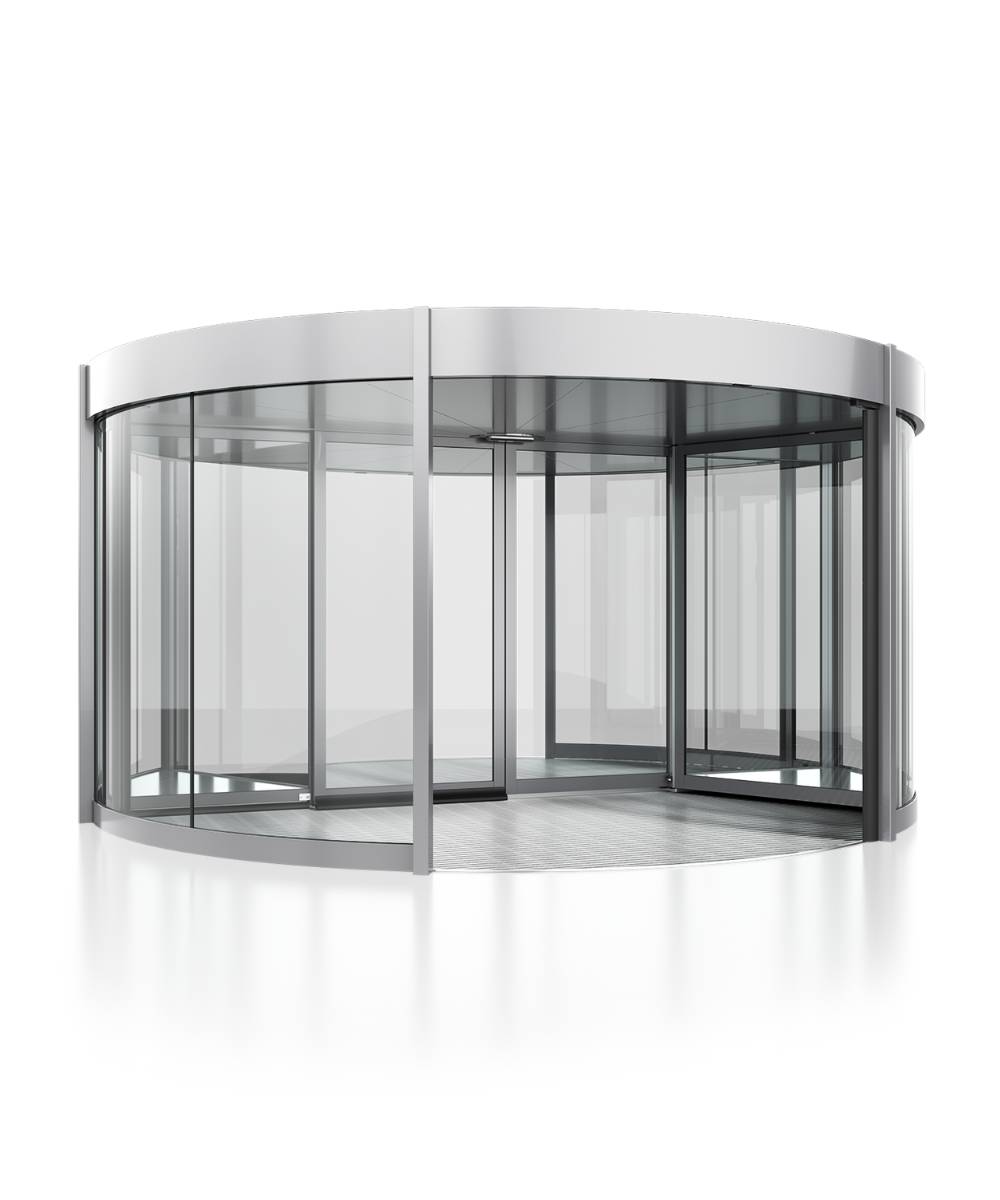

Boon Edam Duotour | Rotating Revolving Door

Name: Boon Edam Duotour | Rotating Revolving Door
Brand: Boon Edam Limited
SKU: 5M6G1skegN9h3koDebL8go

Verified by manufacturer 2 days ago

Swing door - 3600 mm diameter

Boon Edam Limited

Product certifications:

ADSA
Certificate type
smas WORKSAFE
Certificate type

A two wing automatic revolving door with spacious compartments which easily accommodate large objects such as shopping and luggage trolleys, stretchers and wheelchairs.

Jump to:

BOS

+44 (0) 1233 505 900 Website

Application

Suitable entrance solution for supermarkets, hotels, banks and airports; it is also well suited to hospitals and many types of public buildings.

Description

A two wing automatic revolving door with spacious compartments which easily accommodate large objects such as shopping and luggage trolleys, stretchers and wheelchairs. It provides simple, bi-directional, straight-line access and has a high capacity throughput of people. The unique design of the Duotour turns an ordinary entrance into an environmentally friendly and attractive one.

Features and Benefits:

Versatile high capacity entrance solution.
Incorporating central sliding or swinging doors within the two wing door set, the Duotour can be used as a fully automatic revolving door, an automatic sliding entrance or left completely open as traffic flow or special circumstances dictate.
Showcases for displays and advertising are available without jeopardizing compartment space or capacity.

General information

Finish	Anodized Powder-coated Brass Brushed Coated Mirrored Satin Show more Manufacturer guidance Special order options available, can be clad with stainless steel, bronze, brass or other metals; contact manufacturer for more information.
Material	Aluminium
Shape	Circle
Width	4800 mm
Height	2200 mm
Warranty description	One year

Uniclass	Pr_30_59_24_04 Automatic revolving doorsetsPrimary
CAWS	L20/480 Doorsets L20/55 Doorsets L20/495 Automatic revolving doors

Product range	Door Systems / Automatic Revolving Doors

Specification data - Automatic revolving doorsets

Classification data
Standard	In accordance with BS 7036-5.
Configuration	Two wing with central swing doors.
Materials and finishes	-
Doors	Aluminium sections.
Drum walls	Aluminium to match doors. Guidance for specification option: Slim aluminium profiles with laminated glass, High grade solid aluminium sandwich panels.
Glazing	-
Type	9 mm laminated glass.
Manifestation	As drawings.
Canopy	Manufacturer's standard.
Activation and control system	-
Safety devices	Safety rail bent wall, safety rail turning wall, end buffer sensors, horizontal boon sensors and emergency stop. Guidance for specification option: Safety rail bent wall (SRB): Active safety rubber buffers to prevent persons and objects being trapped between the leading edges of the rotating door wing and the stationary bent wall (leading mullion). Safety rail turning wall (SRT): Active safety rubber buffers on the leading edges of the rotating door wings. The Duotour stops immediately when the buffers are activated. End buffer sensors (EBS, stationary and rotating) prevent people being hit by the rotating door wing when they are trying to enter the Duotour at the last moment. Horizontal boon sensors (HBS, slow and stop) safeguard the area in front of the door wings and the showcases. If the door wing or showcase is nearing a person, the door first slows down and then stops if it gets closer. Emergency stop which immediately stops the Duotour when activated.
Locking mechanism	Manual locking. Automatic locking.
Accessories	Not required. Air curtains. Authorized night entry. Ceiling lighting with halogen lamps. Ceiling lighting with LED lamps. Dust covers. Floor mats. Glass protection sheets. Push-button temporary low speed. Roof covering for outside use. Showcases.
Canopy height	300 mm. 400 mm. 500 mm. 600 mm.
Capacity	40 people. Guidance for specification option: x 2 - per minute (3600 mm diameter).
Diameter	3600 mm.
Operation	Automatic revolving doorset.
Frame finish	Anodized aluminium. Powder coated aluminium. Clad with stainless steel. Clad with wood.
Height	2200—2600 mm. Guidance for specification option: Height under canopy. 3600-4800 mm diameter.
Opening	Anti-clockwise rotation.
Operating temperature range	-20 to +50°C.
Throat width	1654 mm.
Power supply	200–240 V AC, 50/60 Hz.
Ceiling	Sound insulated folded aluminium panels.
