Bodgrid™ Geocomposite - Geocomposite Layer
Verified by manufacturer 2 days ago
A geocomposite with a stiff biaxial geogrid bonded to a nonwoven geotextile for soil stabilization, separation, and filtration.
Application

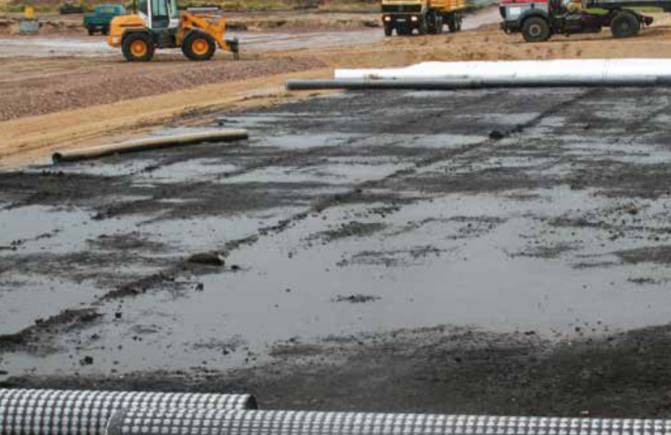

Terram Bodgrid is used for separation and filtration applications in paved and unpaved roads, car parks and hardstandings, haul roads, and temporary working platforms.
Description
Terram Bodgrid is a geocomposite consisting of a stiff biaxial soil stabilising geogrid thermally bonded to a nonwoven needle punched Terram geotextile filter/separator.
Features and benefits:
Features and benefits:
- Single layer of Terram Bodgrid instead of separate geotextile and geogrid layers is much quicker to install saving time and money.
- Separation, filtration and reinforcement function reduces sub-base thickness and extends design life.
- Manufactured from polypropylene giving excellent long term durability in all soil types.
General information
Color | Grey |
Material | Polypropylene |
Shape | Other Guidance for specification option: Roll. |
Length | 50000 mm |
Width | 4800 mm |
Uniclass | |
CAWS | D20/555 Geogrids Q25/365 Geotextile sheet Q25/64 Geotextile sheet |
SKU Code | Bodgrid Geo |
Specification data - Plastics geogrids
Classification data | |
Material | Polypropylene. |
Configuration | Biaxial. |
Grid geometry | 37 x 40 mm |
Properties | |
UV resistance | Weathering (UV Exposure) to EN 12224: 30 days. |
Tensile strength (minimum) | 30 kN/m. |
Elongation | 7%. |
CBR puncture resistance | 2 kN. |
Pore size | 65 µm. |
Permeability | 65 L/mm²s. |
Ageing | Combined ageing (Oxidaton, temperature and moisture) to EN ISO 13438: 100 years. |
Thickness: | 3.4 m (nodes). 2.4 mm (ribs). |
Weight | 360 g/m². |
Roll length | 50 m. |
Roll width | 4.8 m |
Sustainability data
Material | Polypropylene |
Expected Life | 100 year |

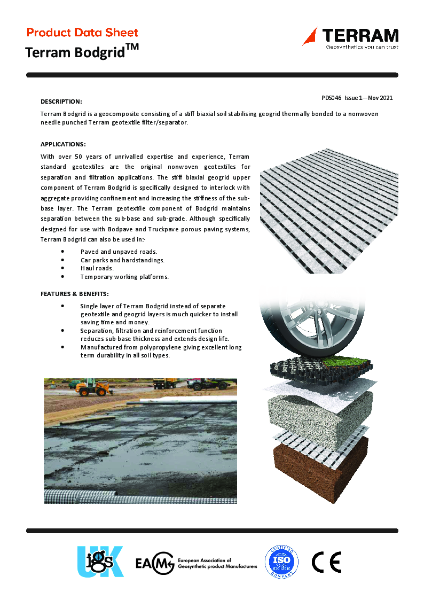

Literature
Bodgrid™ Geocomposite
