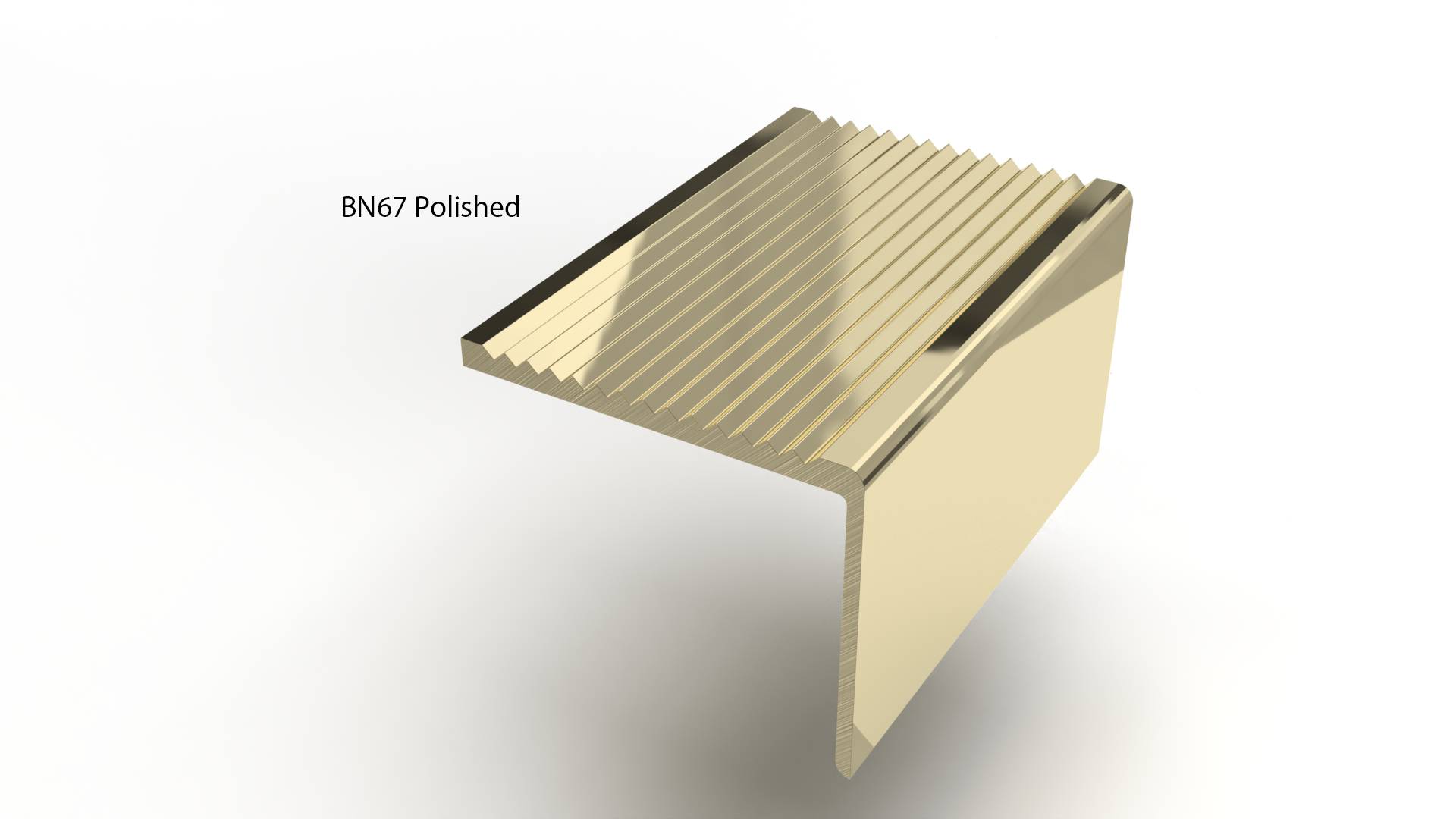

BN67 Brass Stair Nosings - Stair Nosings

Verified by manufacturer 5 months ago

Polished brass

CAT (Carpet Accessory Trims) Limited Variant:
Third party certifications:
  • Made in Britain

    Made in Britain

    Certificate type

Brass stair nosings 4.6 mm gauge with ribbed tread for carpet, carpet tile and resilient flooring.

Jump to:
BIM object icon
+44 (0)1582 561500 Website

Application

  • For abutting to carpet and carpet tiles, to finish the nose edge of stairs.
  • Can be rebated to sit flush in wooden steps.
  • Suitable for medium to high traffic areas.

Description

Solid brass stair nosing with ribbed treads. Suitable to butt up to flooring, or used with BNE brass nap lock profile, for use with broadloom installations.


Features and benefits:

  • Suitable for use where a heavy duty 50 x 50 mm visual stair nosing is required.
  • Available in a range of four colours.
  • Typically installed with carpet or resilient flooring, such as Amtico or Karndean.

General information

Finish

Available Finishes:

  • Polished Brass
  • Satin Brass
  • Antique Brass
  • Antique Bronze


-

Material

Brass

Solid brass: Grade H/H CZ108.

Length

Max Lengths

  • Polished       3.2m
  • Satin          2.7m
  • Antique Brass   2.7m
  • Antique Bronze 2.7m


3200 mm

2700 mm

Width

67 mm

Height

55 mm

Uniclass

Pr_35_90_31_74 Rigid stair nosingsPrimary

CAWS

L30/30 Proprietary stairs

L30/310 Proprietary stairs

L30/590 Applied stair nosings

M50/75 Stair nosings and trims

M50/750 Stair nosings and trims

M51/550 Stair nosings and trims

Specification data - Rigid stair nosings

Profile

Solid ribbed tread/ square front.

Base section

-

Material

Solid brass grade H/H CZ108.

Finish

Average LRV.

Polished brass, LRV 71.45.

Size

-

Rise x going

55 x 67 mm.

Gauge

4.6 mm.

Installation

To be supplied pre-drilled and countersunk for flush fit screws.

To be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive.

Length

Maximum.

3200 mm.

Environmental information

Country of material origin

Europe

Country of product manufacture

United Kingdom

Recyclability

100% recyclable at suitable disposal centres

Recycled content

100 %

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Made in Britain

Made in Britain

Made in Britain
