Application

  • Suitable for military applications as well as for use in high security areas such as petrochemical plants, banks and embassies.
  • For security reasons, fabricators require special approval to construct this system.

Description

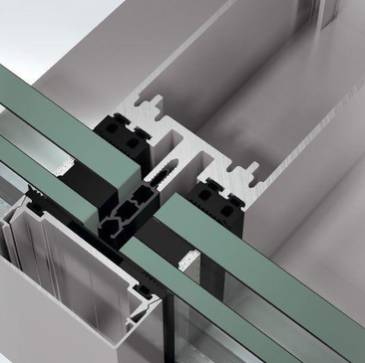

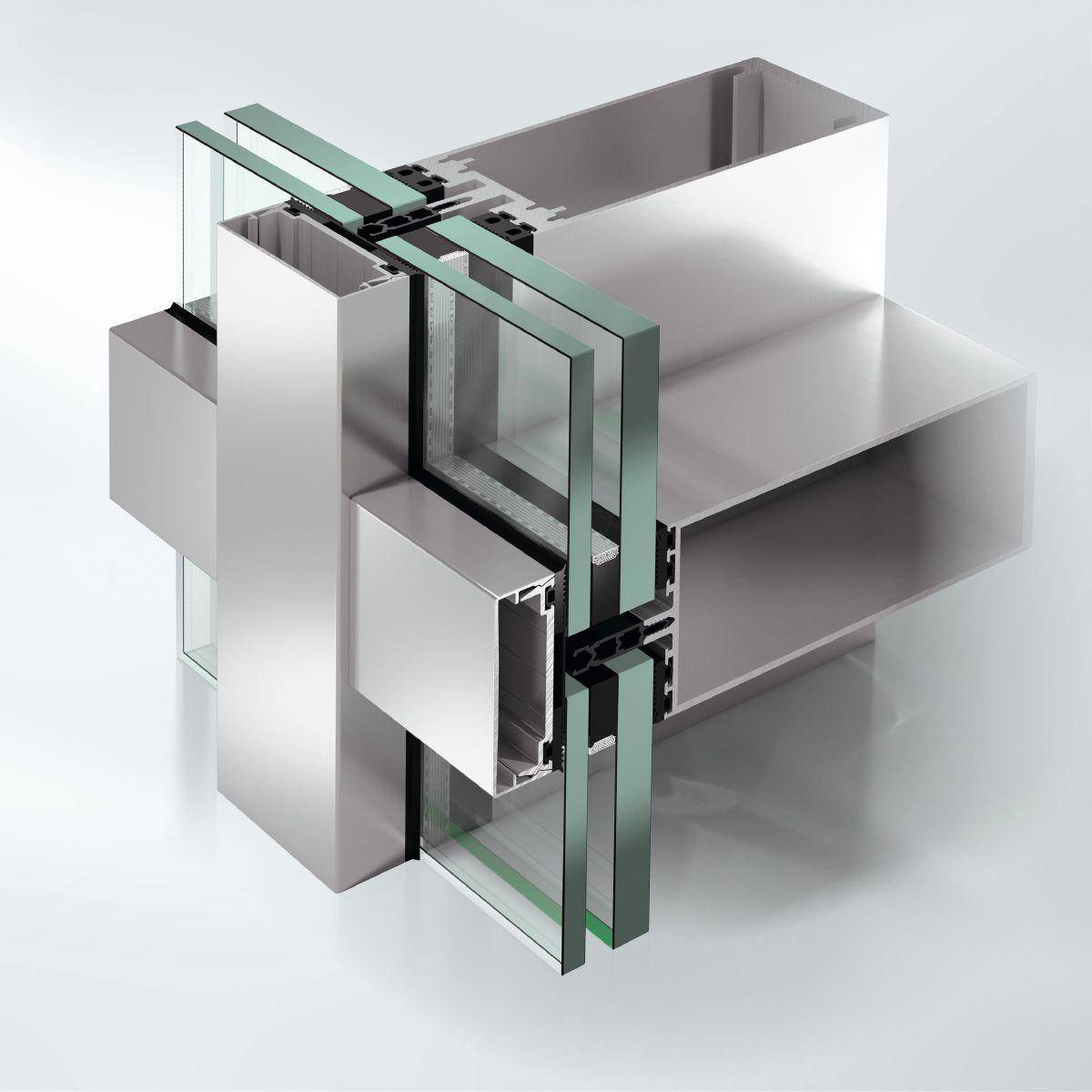

Blast-resistant façade system that can withstand a shock wave of 169 kPa generated by an explosion 15 m from the unit (hazard level D “Very low hazard”), as well as meeting all the requirements of standard facades in terms of thermal insulation, sound reduction and weathertightness.


Features and benefits:

  • Tested security in accordance with ISO 16933.
  • Excellent thermal insulation.
  • Extended area of application based on calculations possible.
  • Can be used in combination with blast-resistant Schüco window and door systems.
  • All assemblies to include a Schueco Internet of Facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records creating a project’s digital twin.

General information

Color

Silver

Other

Finish

Powder-coated

Anodized

Material

Aluminium

Glass

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_10_20_85 Stick curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Specification data - Stick curtain walling systems

System performance

Insert requirements. Consult manufacturer for module sizes available etc.

-

Framing

-

Frame members

Aluminium curtain wall frame sections, polyester powder-coated.

Insert colour requirements.

Aluminium curtain wall frame sections, anodized.

Frame accessories

Consult manufacturer for options and insert requirements, or omit.

-

Fasteners

Manufacturer's standard.

Cladding units

-

Glass units

Insert requirements, including overall thickness, 22–44 mm.

-

Glazing accessories

Consult manufacturer for options and insert requirements, or omit.

-

Fasteners

Manufacturer's standard.

Perimeter seals

Manufacturer's standard.

System accessories

Consult manufacturer for options and insert requirements, or omit.

-

Size

Max tested glass size.

1565 x 2000 mm.

Module sizes.

1565 x 1325 mm.

Module sizes.

Face width

80 mm.

Minimum.

Thermal transmittance (U-Value)

Insert requirements or consult manufacturer for values.

Uf value of frame: ≥1.2 W/m²K.

-

Burglar resistance

Consult manufacturer for options and insert requirements (up to RC 2), or omit.

-

Air permeability

Class AE.

Watertightness

Class RE 1200.

Resistance to wind load

2.0/ 3.0 kN/m².

Impact resistance

Class 5.

Blast resistance

In accordance with ISO 16933.

Consult manufacturer for details.

Label

Schueco ‘IoF’ ID tag with QR code.

Internet of facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records.
