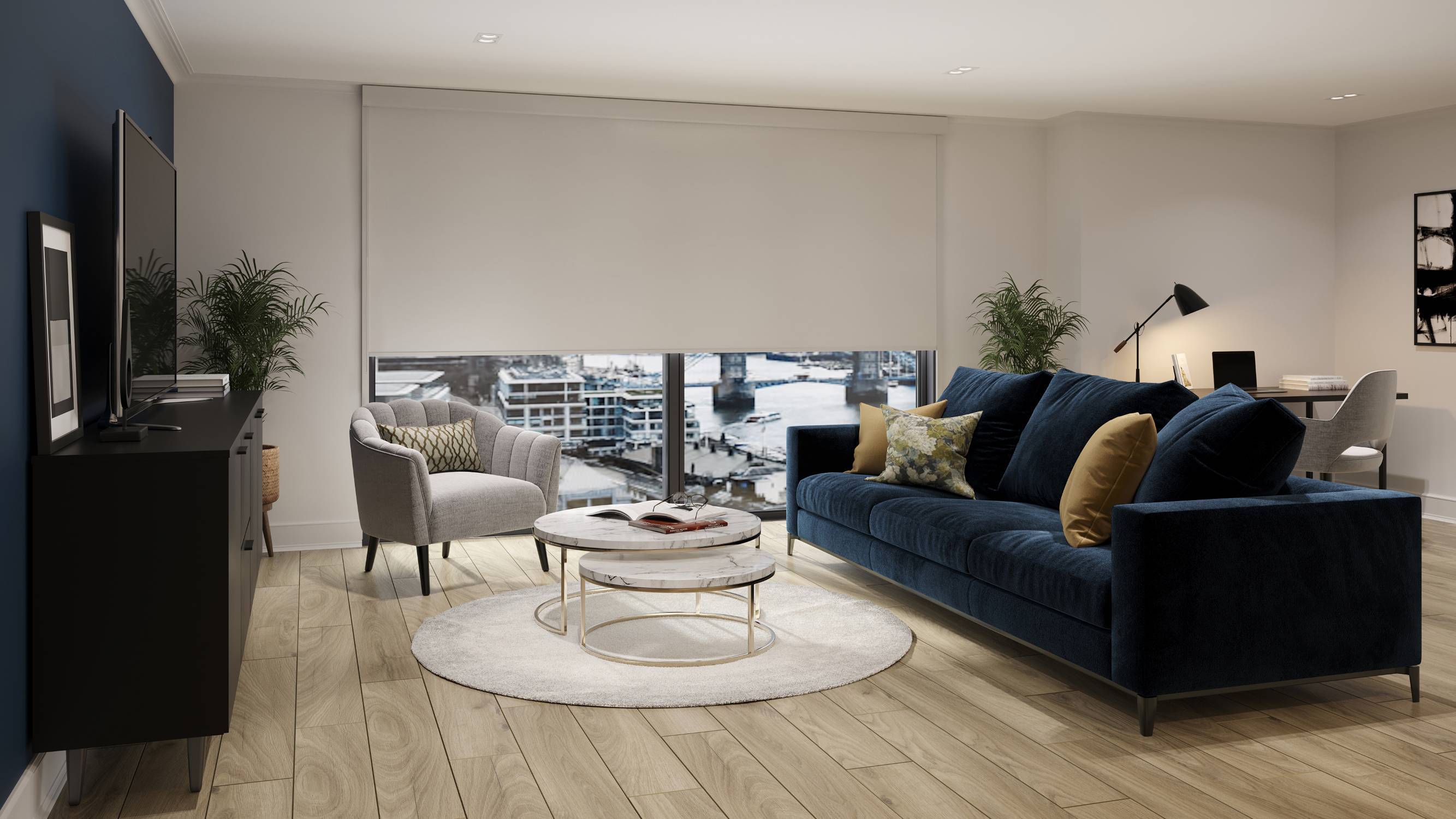

The blackout blind 4100 Series system has a head box and side guide tracks which capture and retain the fabric.
Suitable for multiple applications, from attachment to doors through to large areas of glazing, and rooflights. Suitable for use in the most demanding environments from laboratories to schools and industrial applications
The blackout blind 4100 Series system has a head box and side guide tracks which capture and retain the fabric.
Features and benefits:
Color | Black White |
Finish | Powder-coated |
Material | Aluminium Guidance for specification option: Extruded aluminium tubes. Fabric |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year Guidance for specification option: 12 months from the date of installation. |
Material | Aluminium Guidance for specification option: Extruded aluminium tubes. Fabric |
Uniclass | |
CAWS | N10/70 Blinds N10/240 Blinds |
Standards | To BS 5867-1, BS 5867-2 and BS EN 13120. |
Position | Internal to glazing. |
Dimensions (minimum width x depth) | Guidance for specification option: Insert requirements. |
Headrail | |
Material | Aluminium extruded light-tight cassette. |
Colour | White.Guidance for specification option: RAL 9016. |
Blinds | |
Blackout function | Solar shading.Screening and privacy.Dim-out and blackout. |
Colour | White.Guidance for specification option: White as standard. Custom RAL available. |
Pattern | Cassetted roller blind. |
Tube | |
Material | Extruded aluminium. |
Diameter | 75 mm. |
Tube covers | |
Material | Aluminium extruded hembar. |
Colour | White.Guidance for specification option: RAL 9016. |
Operation | Manual chain operation.Manual crank operation.Electric motor operation (240 V).Manual rooflight crank operation.Electric rooflight motor operation (240 V). |
Operating effort | To BS EN 13120, class 1. |
Testing | Solar transmittance. |
Mechanism endurance | To BS EN 13120, class 1. |
Accessories | Aluminium extruded slimline side guides finished as PPC RAL 9016. |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Guidance for specification option: Extruded aluminium tubes. Fabric |
Recyclability | Manufacturer guidanceSubject to fabric specified. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
