BL-WH Fixed Ladder with Safety Cage
Verified by manufacturer 2 months ago
BL-A-WH1
BL-A-WH1
Galvanized steel fixed vertical ladder with safety cage.
Application
Designed to sit below a roof access hatch.
Description
Industrial standard fixed vertical ladder available to suit floor to ceiling heights of between 2–6 m (special sizes available upon request), supplied with a fixed safety cage designed to sit below a roof access hatch.
Features and benefits:
- Manufactured to meet the requirements of BS 4211:2005.
- Available in aluminium (BL-A models) or galvanized steel (BL-S models).
General information
Color | Other |
Finish | Galvanized |
Material | Steel Guidance for specification option: Carbon steel. |
Width | 488 mm |
Warranty description | Manufacturer guidanceManufacturer's warranty. |
Uniclass | |
CAWS | L35/130 Ladder system |
Specification data - Permanently-fixed vertical ladder systems
Stiles | 50 x 10 mm flat bar. |
Rungs | 20 mm round bar. |
Safety cage | Galvanized steel cages above 2200–3000 mm, 50 x 10 mm flat bar, five straps as BS 4211:2005. |
OverallWidth | 488 mm. |
Height | 2000–2800 mm. |
Weight | 15–18 kg. |
Sustainability data
Material | Steel Guidance for specification option: Carbon steel. |
Literature

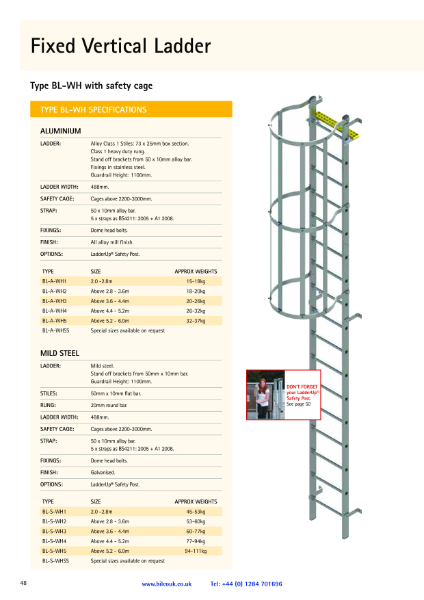

TYPE BL-WH Fixed Ladder with Safety Cage
