BIOTRAP-IBG & IBG(R) Indoor Below Ground (Recessed) - Grease Trap
Verified by manufacturer 4 days ago
BIOTRAP-IBG-9050 - Flat Top Lid
BIOTRAP-IBG-9050 - Flat Top Lid
Indoor below-ground grease trap with the option of recessed load bearing lids, integrated riser, variable inlet / outlet locations and bespoke sizing.
Application
- BIOTRAP-IBG is suitable for indoors. Both above and below ground.
- BIOTRAP-IBG(R) is suitable for indoors. Below ground only.
Description

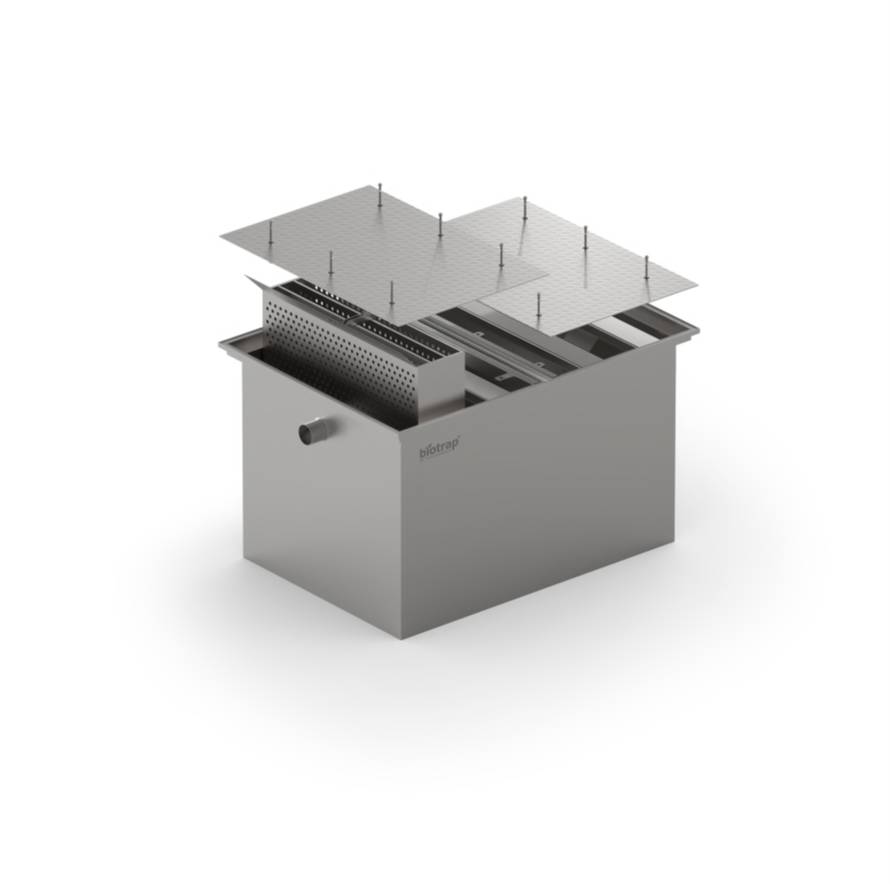

BIOTRAP-IBG is an indoor below-ground grease trap with a flat top or a recessed lid.
The compression seals ensure a 100% airtight seal, so they are well suited for indoor (underground) locations such as kitchens, basements, store rooms and corridors.
Standard flat top lids and recessed lids will accommodate pedestrian traffic or light goods trolleys and pallet trucks. HGV and car lids are also available. The lids are easily removed to provide unrestricted access to all areas of the greasetrap.
The IBG range is available in standard and non-standard sizes from NS1 to NS50.
Features and benefits:
- Double seal for zero malodours.
- Non-slip stainless steel lids.
- Recessed lids to accept tiles, vinyl, timber, etc.
- Lids for forklifts and delivery vehicles.
- Removable baffle.
- Optional daily bacterial treatment.
- Variable inlet and outlet locations.
General information
Color | Silver |
Finish | Mill |
Material | Stainless steel |
Shape | Rectangle |
Length | 924 mm 1024 mm 1416 mm 1616 mm 1836 mm |
Width | 624 mm 724 mm 996 mm 1116 mm 1296 mm |
Height | 496 mm 596 mm 606 mm 706 mm 960 mm |
Warranty description | Two year |
Uniclass | |
CAWS | R12/419 Grease traps and converters |
SKU Code | BIOTRAP-IBG-9050 |
Specification data - Below-ground grease separators and converters
Classification data | |
Standards | To BS EN 1825-1 and BS EN 1825-2. |
Certification | CE marked. |
Material | Stainless steel. |
Size (nominal) | 1 L/s. |
Connections | |
Inlet pipe diameter | 40 mm. 50 mm. 110 mm. 160 mm. 220 mm. 254 mm. |
Outlet pipe diameter | 40 mm. 50 mm. 110 mm. 160 mm. 220 mm. 254 mm. |
Electrical supply | Not required. |
Integral accessories | Removable lid, removable baffle, variable inlet and outlet locations. |
Accessories | Not required. Automatic dosing system. Guidance for specification option: The system is comprised of a dosing pump, FAT ATTACK® bacterial treatment, and wall mounted stainless steel lockable box. Refer to the manufacturer's literature for details. Integrated riser. Guidance for specification option: Integrated riser allows easy connection to existing pipe work. |
Dimensions | 924 x 624 x 496 mm. |
Capacity | 199 L. |
Lid | Integrated pedestrian lid. Integrated load-bearing lid for cars or HGVs. Independent load-bearing lid for cars or HGVs. |
Sustainability data
Material | Stainless steel |
Literature
Literature type

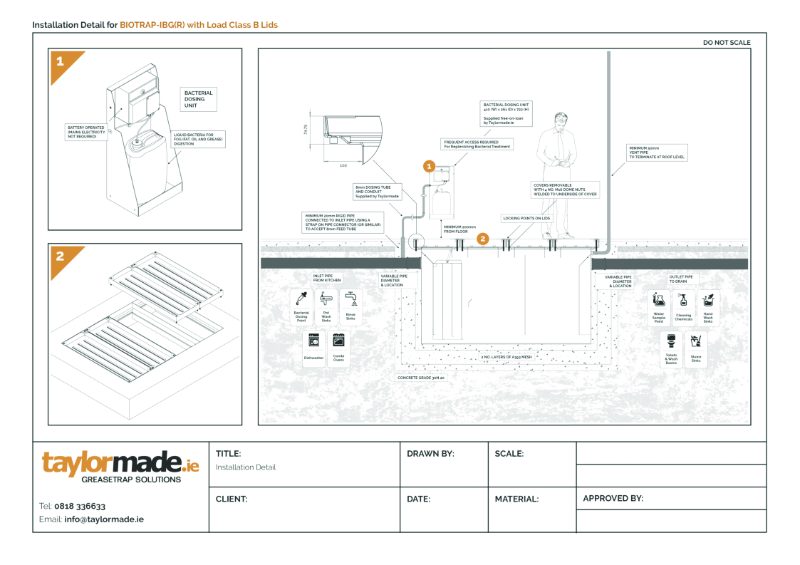

BIOTRAP-IBG(R) Installation Detail Recessed Load Class B Indoor

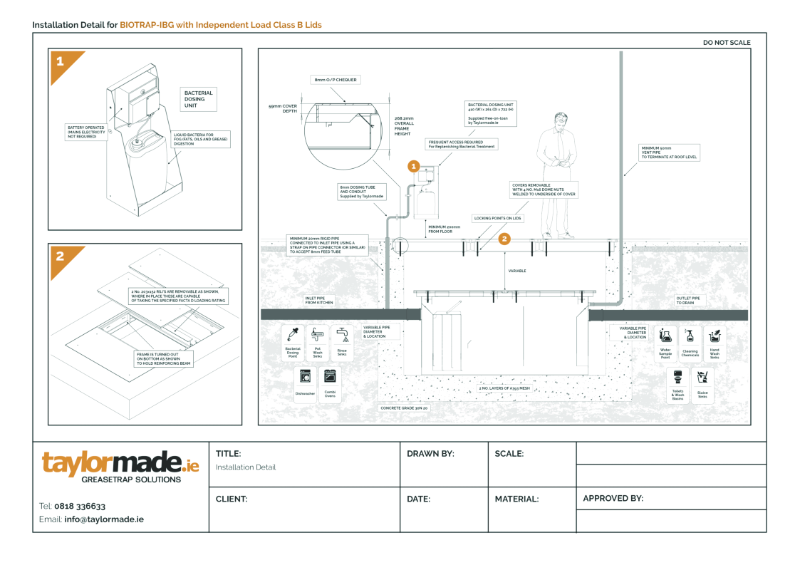

BIOTRAP-IBG Installation Detail Independent Load Class B
BIOTRAP-IBG & BIOTRAP-IBG(R) Indoor Below Ground Brochure
