Biobloc Plain - Mineral Tile Suspended Ceiling System
Verified by manufacturer 5 months ago
Board edge infills
Board edge infills
Suspended ceiling system with lay-in mineral ceiling tile combining excellent cleanability, resistance to disinfectants and antimicrobial performance. Suitable for healthcare environments.
Application
Suitable for healthcare environments with average to severe risk of infection.
Description
Biobloc Plain combines excellent cleanability and resistance to disinfectants. Along with its antimicrobial performance it is a solution for healthcare environments.
Features and benefits:
Tiles:
- Available in plain surface with enhanced water repellency.
- High light reflectance: 87%.
- Washable.
- Safe for use with disinfectants.
- Cleanroom, ISO 4.
Grids:
- Choice of grids including corrosive-resistant and clean room (varies based on edge detail required).
General information
Color | White |
Finish | Mineral |
Material | Mineral Steel |
Shape | Square Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Warranty description | 30 year System guarantee. 15 year Product guarantee. |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system |
Specification data - Modular suspended ceiling systems
System performance | Insert requirements. |
Ceiling support | Prelude 24 XL² / TLS, Global White.Prelude 24 XL² Cross Tees are designed to work with the Prelude 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with a Superlock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required. Baked polyester paint finish. Prelude 24 XL² / TLS, White RAL 9010.Prelude 24 XL² Cross Tees are designed to work with the Prelude 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with a Superlock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required. Baked polyester paint finish. Prelude 24 XL² / TLS, Silver RAL 9006.Prelude 24 XL² Cross Tees are designed to work with the Prelude 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with a Superlock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required. Baked polyester paint finish. Prelude 24 XL² / TLS, Black.Prelude 24 XL² Cross Tees are designed to work with the Prelude 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with a Superlock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required. Baked polyester paint finish. Prelude 24 Corrosive Resistant, Global White.Consult manufacturer for options and insert requirements. Prelude 24 Corrosive Resistant TL+ Cross Tees are finished with a special corrosion resistant paint for better performance in high humidity environments - recommended when system is to be installed in areas >90% relative humidity. These cross tees are Durability Class C (EN 13964:2004 + A1:2006) and have completed a 700 hours salt spray test (EN ISO 9227). Clean Room 24, Global White.Exposed 24 mm co-extruded grid system for clean rooms and non-magnetic areas. They can be used in clean rooms with ISO 4 classification in accordance with ISO 14644-1:1999. |
Support fasteners | Insert requirements to suit substrate. |
Ceiling units

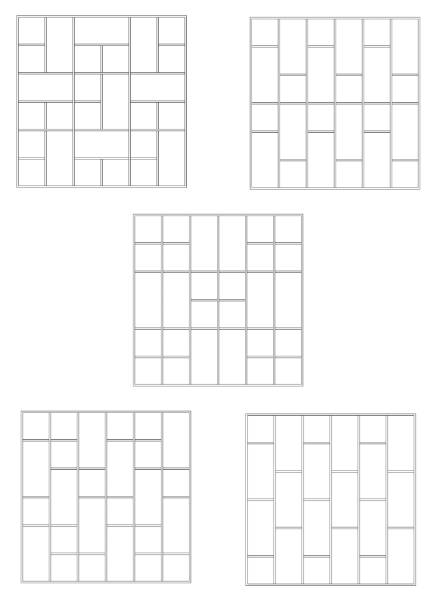

| 600 x 600 x 15 mm, board edge, Global White (2221M).1200 x 600 x 15 mm, board edge, Global White (2222M). |
Barriers in ceiling void | - |
Fire barriers | Consult manufacturer for options and insert requirements, or omit. |
Acoustic barriers | Consult manufacturer for options and insert requirements, or omit. |
Plenum barriers | Consult manufacturer for options and insert requirements, or omit. |
System accessories | Consult manufacturer for options and insert requirements, or omit. |
Weight | Infill units: 3.6 kg/m². |
Reaction to fire | To EN 13501-1, infill units: Euroclass A2-s1, d0 (limited combustibility); support grid: Euroclass A1. |
Thermal Conductivity: | Infill units: 0.060 W/m·K. |
Sound attenuation | Infill units: Acoustic attenuation (weighted suspended ceiling normalized level difference): Dnfw = 35 dB. |
Weighted sound reduction index, Rw | Infill units: 19 dB. |
Noise reduction coefficient | Infill units: 0.20. |
Sound absorption | Infill units: αw = 0.20(L); Class E. |
VOC emissions | The VOC emission performance in accordance with the French labelling requirements: A+/A (depends on thickness, edge detail and size of tile). |
Formaldehyde emissions | Infill units: Formaldehyde emission level (E1 = Best test result possible). |
Colour (Light reflectance value (LRV) | Infill units: 87%. |
Cleanroom classification | To ISO 14644-1, ISO 5. |
RelativeHumidity | Infill units: 95%. |
Sustainability data
Recyclability | 100 Recyclable. |
Recycled content | 31 % Infill units only; consult manufacturer for details of grids etc. |
BIM objects
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
