Billi Quadra 460 Instant boiling and chilled filtered water tap system

Billi Quadra 460 Instant boiling and chilled filtered water tap system

Billi UK Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

The world's first water-cooled under counter system leads the market on technology. Allowing highly compact dimensions, requiring no ventilation and offering market leading instant dispense rates.

Jump to:
+44 (0) 20 7456 6789 www.billi-uk.com
Application

Suggested for use in medium traffic areas approximately 60 people. Can provide:

  • 180 cups of boiling water per hour.
  • 175 cups of chilled water per hour.

Description

Instant filtered drinking water system.

Features and benefits:

  • Provides both boiling and chilled water.
  • The energy reclaim system recovers waste heat energy generated by chilling water, and reuses the energy to preheat the boiling water, therefore saving electrical energy. The stand-by mode also conserves power by switching off after two hours of inactivity.
  • Low carbon footprint.
  • Does not require the use of cupboard ventilation or a cooling fan.
  • SplashFree™ system electronically varies the boiling water flow, adjusting to eliminate splashing.
  • Includes a safety switch.
  • Boiling water is dispensed at 98.5°C as standard, with lower temperatures available if required.
  • The temperature adjustment can be controlled on the screen of the under-counter unit. The chilled water temperature can be raised to 15°C or lowered to 6°C for differing refreshment needs. Required temperatures are quickly reached and maintained.
  • The filtration system removes sediment and chemicals, allows the flow of minerals through and suppresses harmful bacteria in the water. Fibredyne™ technology gives filters a longer life, higher flow rate and lower pressure drop.
  • Supplied with a 1 m flex cord and plug.
  • 24-month warranty.

Compliance:

  • WaterMark™ and WRAS approved.
  • Certified to AS3498 and AS/ NZS 4020.

General information

Color

Silver

Gold

Bronze

Black

Grey

Show more

Finish

The standard dispenser and finish is XL Levered (L) in chrome (CH) - 904010LCHUK. Consult manufacturer for further details.

-

Size

340 x 315 x 465 mm

WarrantyDescription

1 year

24 month parts and labour warranty

Uniclass 2015

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N11/30 Sinks, taps, traps and wastes

N11/350 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

Specification data - Instant boiling and cold water taps Enhanced data

Third party certification

WaterMark™

WRAS approved

Duty

-

Electrical connection

-

Power

13 A.

Product Reference

Quadra 460 (904060)

Type

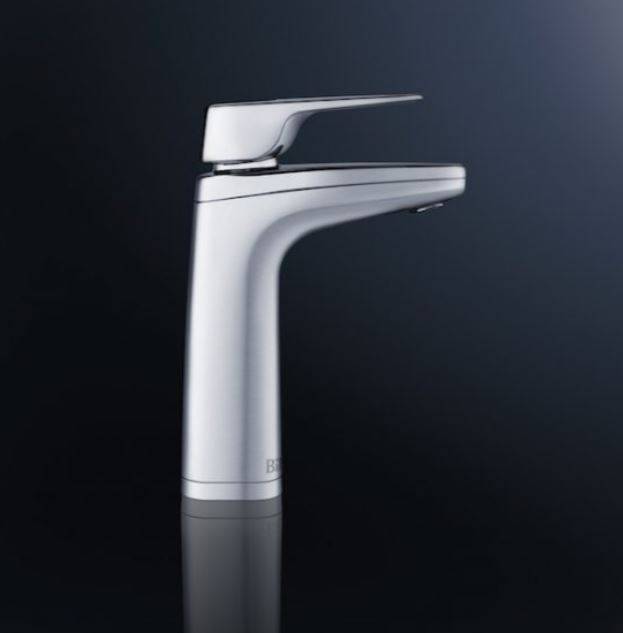

XL Levered (L)

Standard.

XT Touch (T)

XR Remote (R)

Finish

Brushed Chrome (BR)

Available for XL Levered and XT Touch only.

Brushed Rose Gold

Available for XL Levered only.

Chrome (CH)

Standard. Available for all dispenser types.

Florentine Bronze

Available for XL Levered only.

Gloss Black

Available for XL Levered only.

Show more

Font with 120 mm riser

Most accessories are available in Chrome (CH), Brushed Chrome (BR), Matte Black (MB), Matte White (MW), Rose Gold (RG) or Special Finish (SP). Consult manufacturer for further details.

Required

Not required

120 mm riser

Required

Not required

Tubing extension kit (990720)

Required

Not required

Water pressure

2.5–10 bar.

Water supply

A single 15 mm (1/2") stop-tap with a male thread should be installed.

Connection

Drainage connection

1 1/2" upstand or appliance spigot on sink waste.

Digital objects
Platform Compatible Version Certified to
Revit

Revit 2017

2

2.1
IFC
-

2

2.1
Download now from NBS National BIM Library
Third party certifications
  • WRAS: Certificate: 1806056
  • WaterMark™: Certificate: 21525
