Application

Suggested for use in high traffic areas of approximately 100 people. Can provide:

  • 250 cups of boiling water per hour.
  • 175 cups of chilled water per hour.

Description

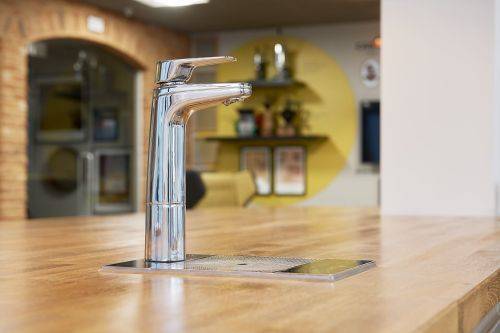

Instant filtered drinking water system.

Features and benefits:

  • Provides both boiling and chilled water.
  • The energy reclaim system recovers waste heat energy generated by chilling water, and reuses the energy to preheat the boiling water, therefore saving electrical energy. The stand-by mode also conserves power by switching off after two hours of inactivity.
  • Low carbon footprint.
  • Does not require the use of cupboard ventilation or a cooling fan.
  • SplashFree™ system electronically varies the boiling water flow, adjusting to eliminate splashing.
  • Includes a safety switch.
  • Boiling water is dispensed at 98.5°C as standard, with lower temperatures available if required.
  • The temperature adjustment can be controlled on the screen of the under-counter unit. The chilled water temperature can be raised to 15°C or lowered to 6°C for differing refreshment needs. Required temperatures are quickly reached and maintained.
  • The filtration system removes sediment and chemicals, allows the flow of minerals through and suppresses harmful bacteria in the water. Fibredyne™ technology gives filters a longer life, higher flow rate and lower pressure drop.
  • Supplied with a 1 m flex cord and plug.
  • 24-month warranty.

Applications:

Suggested for use in high traffic areas of approximately 100 people. Can provide:

  • 250 cups of boiling water per hour.
  • 175 cups of chilled water per hour.

Compliance:

  • WaterMark™ and WRAS approved.
  • Certified to AS3498 and AS/ NZS 4020.

General information
Color

chrome

Features

boiling and chilled water, high performance, maximize available space under the sink, no cupboard ventilation required, safety lock, 7 day timer, internal leak detector, filtration system, choice of colours, low energy consumption, standby mode

Size

15

WarrantyDescription

24 month parts and labour warranty

Uniclass 2015 Instant boiling and cold water taps (Pr_40_70_23_42)
Specification data
Product Reference

Quadra 4100 (904100)

Dispenser -
Type

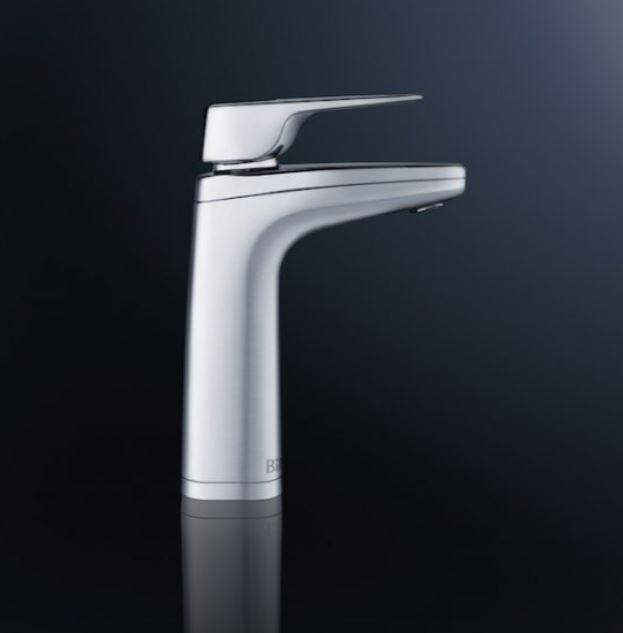

XL Levered (L)

Standard.

XT Touch (T)

XR Remote (R)

Finish

Brushed Chrome (BR)

Available for XL Levered and XT Touch only.

Brushed Rose Gold

Available for XL Levered only.

Chrome (CH)

Standard. Available for all dispenser types.

Florentine Bronze

Available for XL Levered only.

Gloss Black

Available for XL Levered only.

Gun Metal Grey

Available for XL Levered only.

Matte Black (MB)

Available for XL Levered and XT Touch only.

Matte White (MW)

Available for XL Levered and XT Touch only.

Platinum

Available for XL Levered only.

Rose Gold (RG)

Available for XL Levered and XT Touch only.

Special Finish (SP)

Available for XL Levered only.

Urban Brass

Available for XL Levered only.

Accessories/ Other requirements -
Font with 120 mm riser

Required

Not required

120 mm riser

Required

Not required

Tubing extension kit (990720)

Required

Not required

Standard product features

Size (h x w x d):

340 x 315 x 465 mm.

Technical characteristics:

  • Power outlet: 20 A double pole outlet.
  • Water pressure: 2.5–10 bar.
  • Water supply: A single 15 mm (1/2") stop-tap with a male thread should be installed.
  • Drainage connection: 1 1/2" upstand or appliance spigot on sink waste.

Consult manufacturer for further details.

Product Options

Dispenser:

The standard dispenser and finish is XL Levered (L) in chrome (CH) - 904100LCHUK. Consult manufacturer for further details.

Accessories/ Other requirements:

Most accessories are available in Chrome (CH), Brushed Chrome (BR), Matte Black (MB), Matte White (MW), Rose Gold (RG) or Special Finish (SP). Consult manufacturer for further details.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2017 2 2.1
IFC
- 2 2.1
