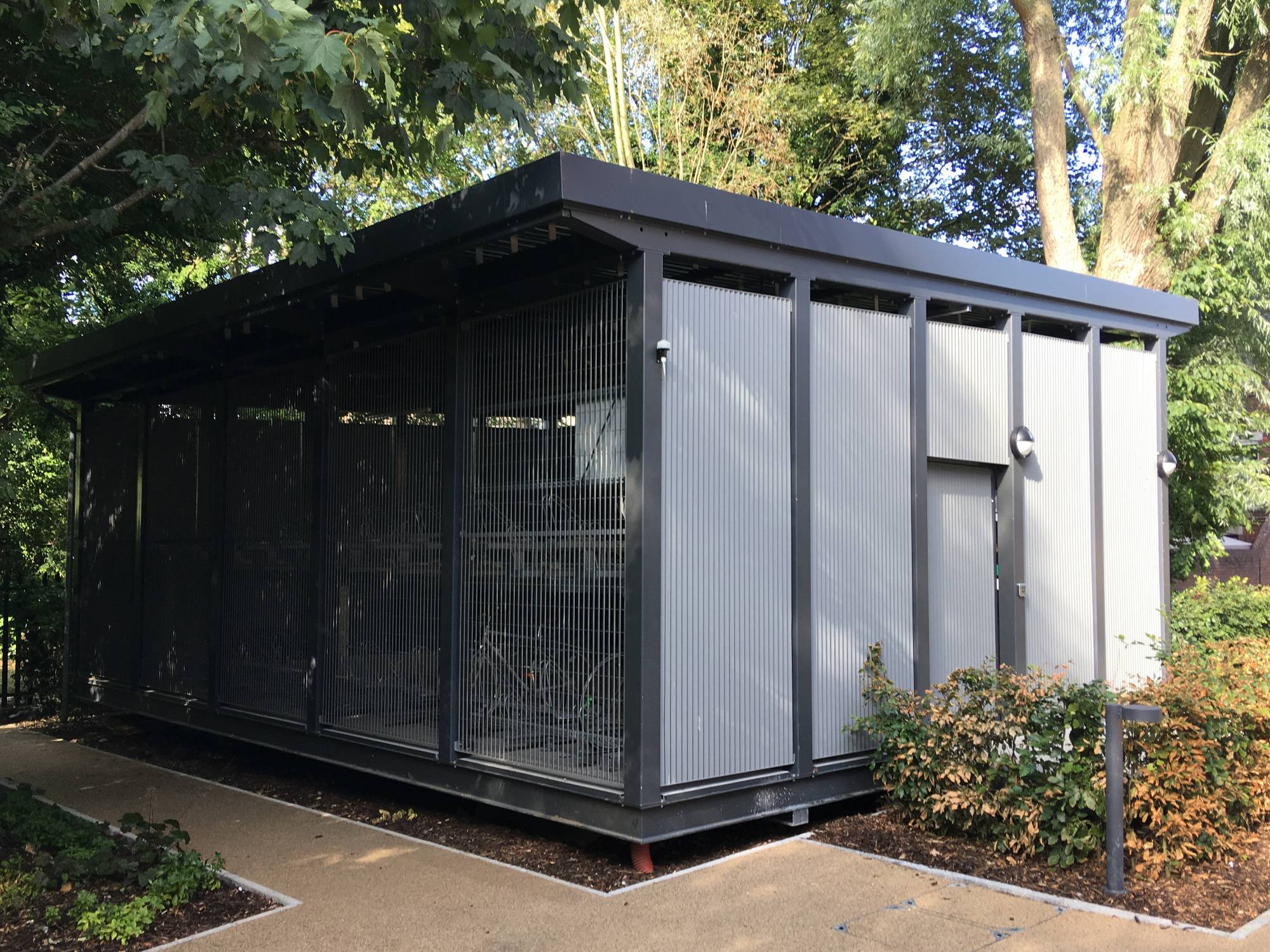

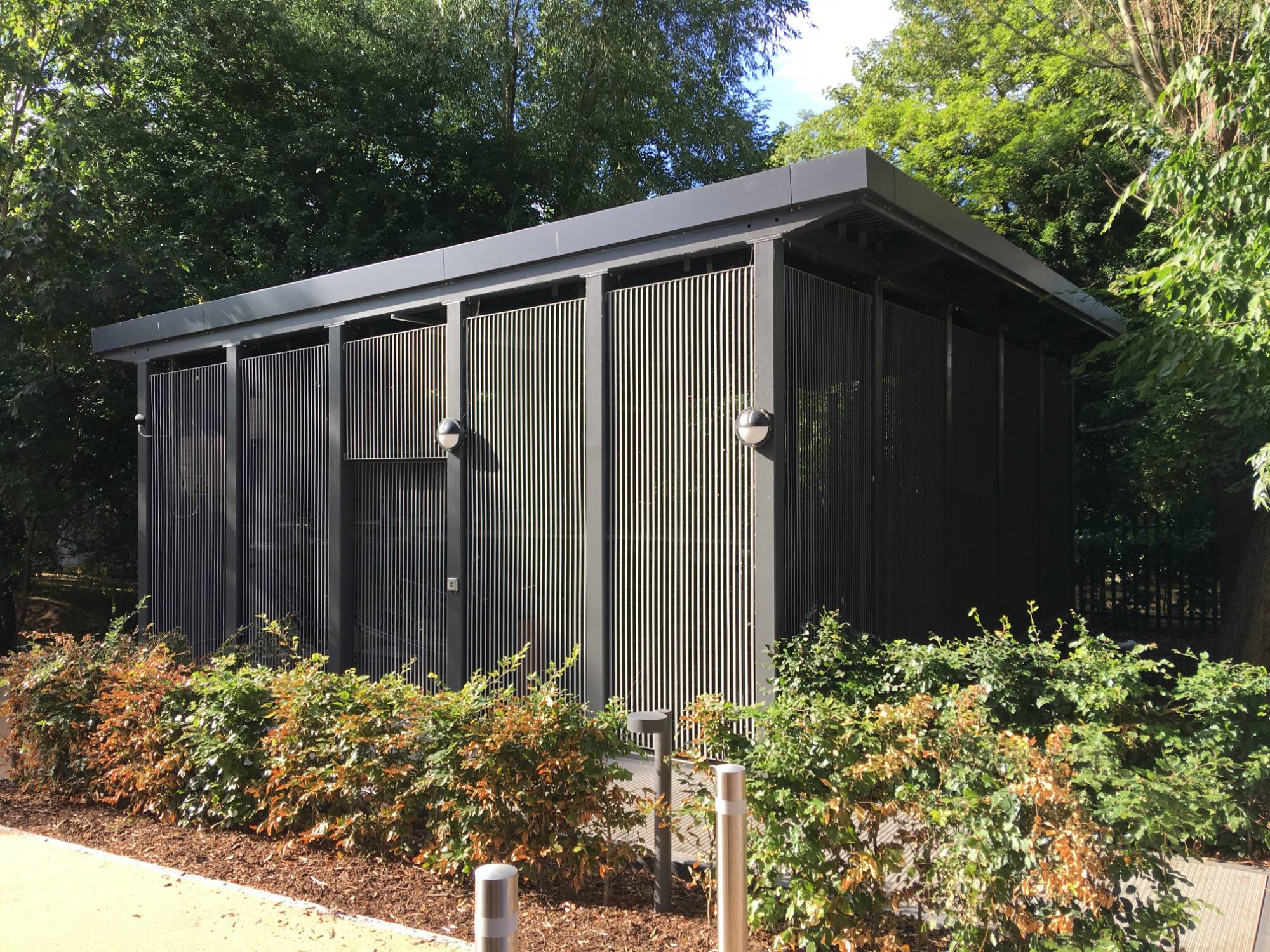

Bike Stores and Secure Bicycle Hubs - Bicycle Secure Storage Compound
Verified by manufacturer 1 month ago
Bike stores, cycle hubs and secure partitions for bike storage with a robust steel construction.
Application
Suitable as bike storage shelter.
Description
Bike stores supplied as a complete package, which includes all support steelwork, accessories and fabrication drawings for quick assembly. Rectangular hollow section (RHS) posts, square hollow section (SHS) corner posts fitted with base plates and doors with euro-profile cylinder Locinox locks as standard. Lang+Fulton also design and supply custom-sized partition screens for enclosing areas within under-crofts and car parks, for the secure storage of bikes.
Features and benefits:
- Solid steel construction.
- Can be clad with panels from a choice of open mesh steel gratings or louvred panels.
- Louvred panels from the Italia or Delta ranges have the benefit of providing total or partial visual screening.
- Roofing is constructed from single skin profiled steel with Plastisol coloured finish.
- All steelwork is hot-dip galvanized for optimum durability.
- An optional polyester powder coating can be provided in any RAL colour.
General information
Color | Orange Purple Turquoise Grey Beige |
Finish | Galvanized Guidance for specification option: Hot-dipped to BS EN ISO 1461. Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | B91/395 Storage unit Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Product range |
Specification data - Semi-closed shelters
Shelter description | Bike stores supplied as a complete package, including all support steelwork, accessories and fabrication drawings.Guidance for specification option:
|
Dimensions | |
Plan size | Manufacturer guidanceInsert requirements. |
Height | Manufacturer guidanceInsert requirements. |
Frame | |
Material | Mild steel S235JR. |
Finish | Hot-dipped galvanized.Guidance for specification option: To BS EN ISO 1461. Hot-dipped galvanized and polyester powder coated.Guidance for specification option:
|
Colour | Orange.Purple.Turquoise.Grey.Beige.Black.Blue.Bronze.Brown.Copper.Gold.Green.Red.Silver.White.Yellow.Other.Guidance for specification option: Hot-dip galvanized and powder-coated to any RAL/BS colour. Insert requirements. |
Cladding | |
Material | As frame. |
Finish | As frame. |
Colour | As frame. |
Roof covering | Single skin profiled steel with Plastisol coloured finish. |
Openings | |
Doors | Doors with euro-profile cylinder Locinox locks, self closers.Guidance for specification option: Standard. |
Rainwater drainage | Manufacturer guidanceOptional gutters available. |
Accessories | Not required.Rainwater gutters.Secondary support steelwork.Guidance for specification option: Designed and supplied as required. |
Arrangement | Guidance for specification option: Insert requirement, or type 'As drawing'. |
Panel | DeltaWing-45. Guidance for specification option: Louvre; 45% visual screening. Deltawing-70. Guidance for specification option: Louvre; 70% visual screening. DeltaWing-90 Guidance for specification option: Louvre; 90% visual screening. DeltaWing-100. Guidance for specification option: Louvre; 100% visual screening. Italia-80. Guidance for specification option: Louvre; 80% visual screening. |
Panel size | Manufacturer guidanceBespoke, insert requirement. |
Framing | 50 x 4 mm flat bar. 60 x 30 mm angled bar. |
Ironmongery | Euro-profile cylinder Locinox lock. Guidance for specification option: Standard. Locinox mechanical code lock. Maglock. Padlock and sliding latch. Self closers. |
Fixing | M10 stainless steel bolts grade A2. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.42 kg CO₂ eq/m Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 56 % |
Literature
Case Studies: Steel Louvred Screening, Plant Housing, Bin Stores & Fencing
Louvred Gratings for Screening, Ventilation and Security

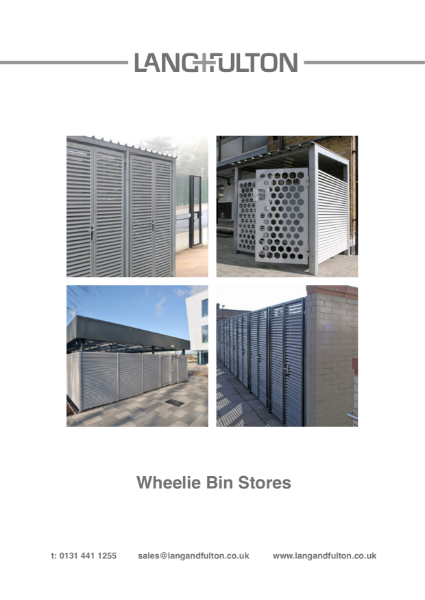

Wheelie Bin Stores and Bike Storage
