Bike-S Bike Module

Verified by manufacturer 1 month ago

Bike-S 6

urbanspec Variant:
Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

Low-profile design with a maximum height of 1485 mm. The module depth enables positioning within standard car parking bays.

Jump to:
01227 200404 Website

Application

A compact, space-efficient street cycle locker.

Description

BIKE-S is the secure, stylish, standalone bike storage unit with minimal visual impact on the street scene. Each low-profile module is fitted with integral wheel trays that incorporate security locking points and is customisable for finishes, graphics, door type and access control types.


Features and benefits:

  • The clean design aesthetic of BIKE-S communicates intent with clear cycle parking graphics, and choice of colours from SSAB Greencoat steel range with its Bio-based Technology coating. The unique slot pattern vision panels ensure clear lines of sight are maintained through the store for personal security. Plain panels can be specified as a no cost option.
  • Engineered for security, the BIKE-S locker module achieves Sold Secure Bronze accreditation as standard (with the exception of mechanical keypad access control). Shielded locks, reinforced hinges and steel external panels with an innovative interlocking design that has no external fixings. All bolted internal frame and ground fixings have shear type security fixings and welded security locking points at the front of the store makes loading and securing cycles easy.
  • The locker module framework, doors and cycle racks are hot dip galvanized coating for long life in tough urban environments.
  • Adjustable base plates enable the unit to accommodate uneven surfaces for installation.
  • Optional lightweight sedum or wildflower green roof with integrated liner, reservoir and growing medium.

General information

Color

Black

Brown

Green

Grey

Red

Show more

Finish

Powder-coated

Galvanized

Material

Steel

Timber

Shape

Rectangle

Length

2200 mm

Width

2200 mm

4220 mm

6330 mm

1060 mm

Height

1490 mm

Warranty description

Five year

Uniclass

Pr_40_30_21_11 Carbon steel cycle lockersPrimary

CAWS

B91/340 Cycle shelter

B91/395 Storage unit

Q50/212 Cycle lockers

Product range

Cycle Parking

Specification data - Carbon steel cycle lockers

Stand type

Cycle.

Dimensions

-

Width

2550 mm.

Depth

2225 mm.

Height

1488 mm.

Finish as delivered

Firenze Freestyle - Colour powder coated.

Guidance for specification option:

  • Polyester powder coated steel.
  • RAL or BS colour selection 30% gloss finish.
  • Laser cut hole pattern design.

Firenze - Colour powder coated.

Guidance for specification option:

  • Polyester powder coated steel.
  • RAL or BS colour selection 30% gloss finish.

Firenze - Anthracite grey.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.

Firenze - Nordic night black.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.

Firenze - Leaf green.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.

Firenze - Walnut brown.

Guidance for specification option:

  • Pre-coated steel.
  • SSAB Greencoat Pural BT finish.

ForestPanel - SW slat.

Guidance for specification option:

  • Sustainably sourced European redwood PAR slat.
  • Pressure treated preservative (green).

ForestPanel - Cedar slat.

Guidance for specification option:

  • Sustainably sourced hardwood PAR slat.
  • Untreated finish.

ForestPanel - Iroko slat.

Guidance for specification option:

  • Sustainably sourced hardwood PAR slat.
  • Untreated finish.

Manufacturer guidance

Cladding panels finish and colour options:


(Insert requirements or colour code where necessary. Consult with manufacturer for more details.)

Storage

Six cycles.

Locking

Latch and Euro-cylinder lock.

Guidance for specification option:

  • Self-latching daybolt.
  • Euro-cylinder key-operated self-latching bolt lock.
  • 100% stainless steel mechanism with aluminium handles.


Latch and code secure lock.

Guidance for specification option:

  • Code secured entrance.
  • Mechanical code lock.
  • 100% stainless steel mechanism and push buttons with aluminium handles.


Slide bolt and padlock.

Guidance for specification option:

  • Self-latching daybolt.
  • Integral slide bolt and handle with padlock provision.


Latch and RFID lock.

Guidance for specification option:

  • Self-latching daybolt.
  • RFID-operated Euro-cylinder lock release.
  • User control via app or web portal.


Manufacturer guidance

urbanspec products are available with a range of robust locking options to suit the specific operational requirements. Manufactured in stainless steel with aluminium external handles and options for internal release.

Security

Not required.

Guidance for specification option:

urbanspec cycle storage modules can be specified at factory order certified to Sold Secure SS104 - Bronze Specification for Mechanical Security Systems for Pedal Cycles.

Required.

Roof

Standard.

Green roof system.

Guidance for specification option:

urbanspec products are designed to accommodate biodiverse green roof systems from the outset and BIKE-S can be specified with a lightweight system that integrates into the roof panel structure with a unique steel liner pan. This incorporates the EPDM membrane liner, composite drainage reservoir mat, growing substrate and a pre-planted vegetation mat.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Steel

Timber

Manufacturing plant location

Recyclability

All non-production steel is 100% recycled and separated at source from fabrication and sheet metal processes.
All timber cladding products are sustainably sourced and certified with non-production material separated at source for 100% recycling.

Expected Life

Ten year

Third party certifications

Secured By Design

Secured By Design

Bike-S Steel Unit

Secured By Design

Secured By Design

Bike-S Timber Unit

Alcumus SafeContractor

Alcumus SafeContractor

Alcumus SafeContractor

CHAS

CHAS

CHAS Advanced

Constructionline

Constructionline

Constructline Gold Member

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System

smas WORKSAFE

smas WORKSAFE

smas WORKSAFE

Literature

Bike S  Module Data sheet

Bike S Module Data sheet

Case studies

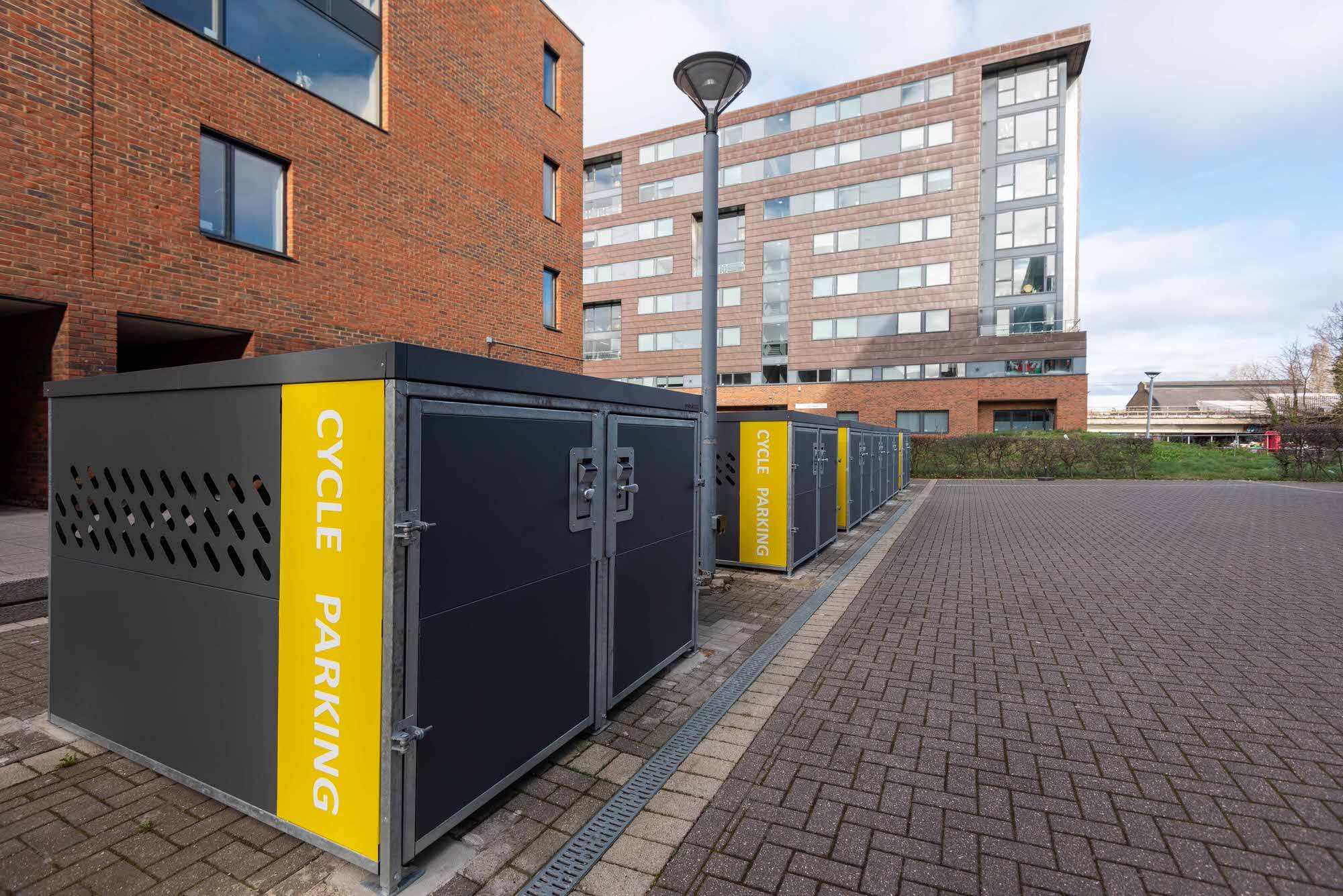

Queen Mary University London, Mile End Campus, London

Queen Mary University London, Mile End Campus, London

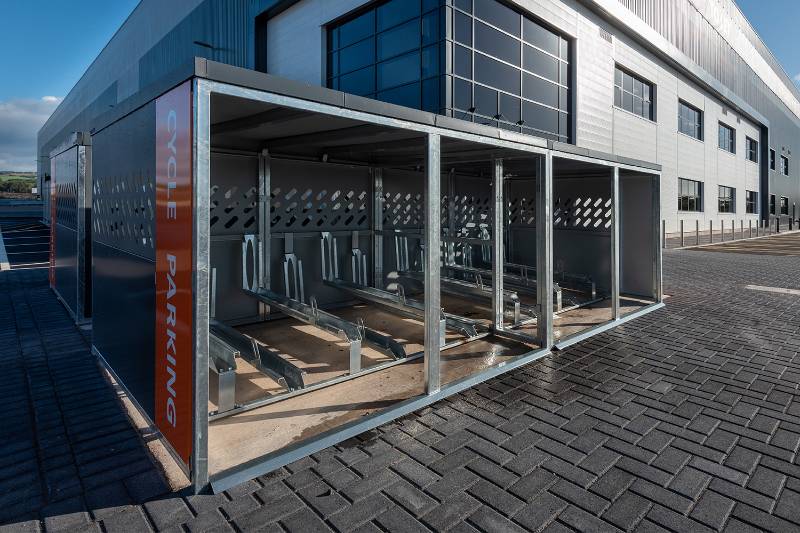

Cathedral Hill Industrial Estate, Guildford

Cathedral Hill Industrial Estate, Guildford

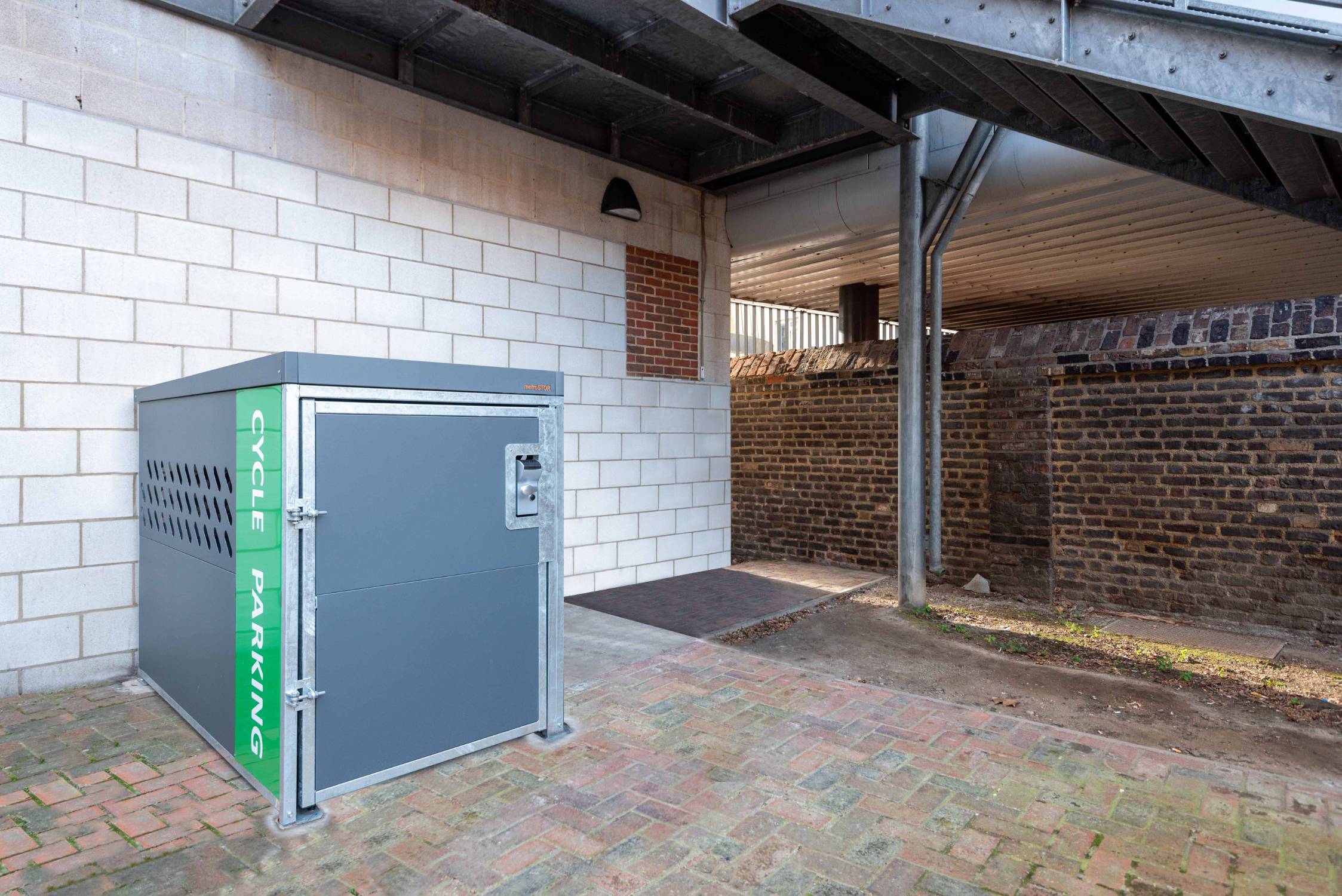

St Modwen Park, Newport

St Modwen Park, Newport
