Big Foot Light Duty
Light duty load support systems for air conditioning systems/ heat pumps/ small AHU's.
The Big Foot Systems Light Duty range offers an array of solutions to support a variety of air handling units and air conditioning systems. Frame kits for most major manufacturer’s mini splits, heat pumps and VRV/ VRF units are available from stock.
Big Foot Splits Modular Frame:
For supporting air conditioning plant on flat roofs. As standard There are three basic modular frameworks available in 1, 2 and 3 m versions. The modular frameworks come with 305 mm or 450mm feet which are provided with anti-vibration mats. The frame is constructed from 40 x 40 mm box section. For heavier loads refer to Big Foot's HD range of products.
Big Foot VRV/ VRF Modular Frame:

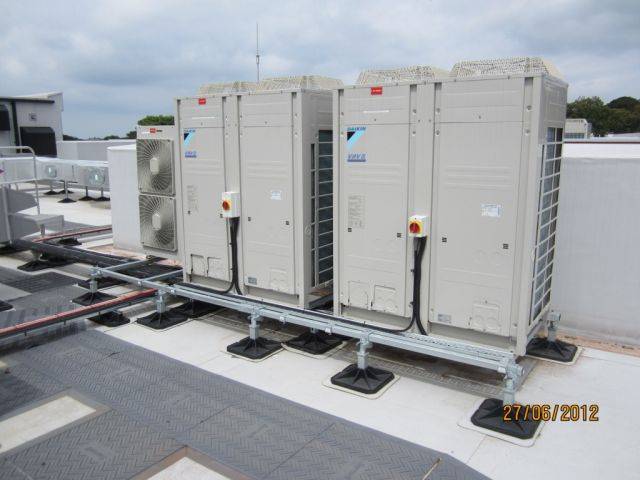

Developed for the siting of most major manufacturer's VRV/ VRF systems. This lightweight and easily assembled Modular Frame system is quick to install and provides a robust and secure method of support.
Features/ benefits:
- Non penetrative load management.
- Cost effective, pre-fabricated support system.
- Versatile modular frameworks.
- Quick to install, robust and secure.
- Optional independent warranty available.
Standards:
Constructed to:
- BS8000-4: Workmanship on building sites. Code of practice for waterproofing.
- BS6229: Code of practice for flat roofs with continuously supported coverings.
- BS EN 1107-1: Flexible sheets for waterproofing. Determination of dimensional stability.
- BS EN 1850-1: Determination of visible defects.
- Building Regulations (E & W) Part L: Conservation of Fuel and Power.
| Uniclass 2015 |
| Product Reference | Big Foot Splits Modular Frame, B60751 m. Big Foot Splits Modular Frame, B60772 m. Big Foot Splits Modular Frame, B60783 m. Big Foot VRV/ VRF Modular Frame |
| Standard product features | Components: - Plastic foot: Nylon 6 B601L 30% glass fibre filled. - Anti-vibration mat: SBR-recycled rubber. Bound using a ratio of high quality moisture curing polyurethane pre-polymer. BS 7188 and BS 5696-3. - Metal framework:
|
| Product Options | Product reference: - B6075:
