BEWI Pro-Foil Cavity Wall Insulation

Name: BEWI Pro-Foil Cavity Wall Insulation
Brand: BEWI UK Insulation
SKU: nTZKsqhmaZdJoh23C6sipV

Verified by manufacturer 20 hours ago

BEWI UK Insulation

Product certifications:

KIWA BDA
Certificate type

A high-performance partial fill and full fill cavity wall insulation with improved thermal resistance.

Jump to:

+44 (0)870 600 3666 Website

Application

Suitable for partial and full fill cavity walls.

Description

A high-performance partial fill and full fill cavity wall insulation with improved thermal resistance.

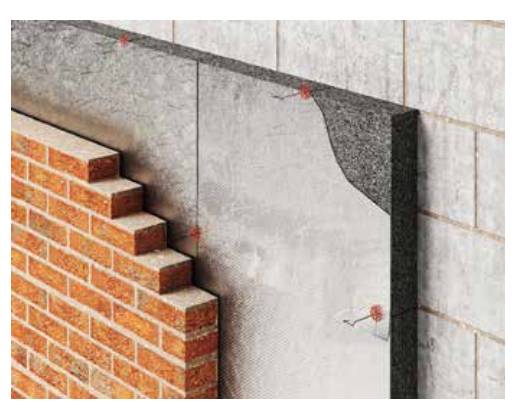

BEWI Pro-Foil Cavity Wall board is an EPS board (grade 70 E HP) with a laminated air cushioned film and a reflective aluminium foil-facing. This provides a superior thermal resistance that lowers U-values enabling a reduction in cavity wall thickness. The board also provides a higher vapour resistance and a rainwater barrier. It can be installed below DPC and contributes to the reduction of the thermal bridge at the junction of the ground floor and the external wall. For further guidance refer to BS 5250 and Building Regulations.

Features and benefits:

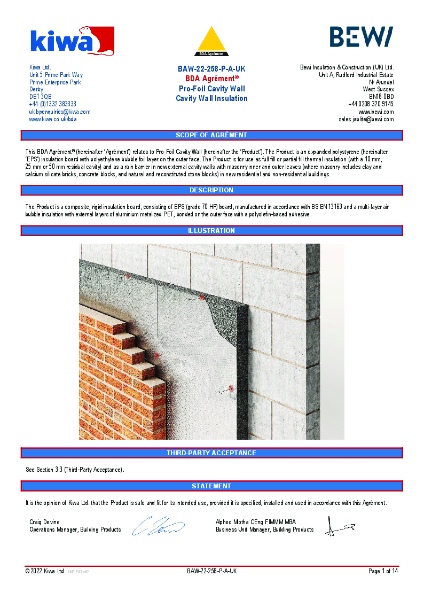

KIWA Certificate BAW 22 258 P A UK.
Declared Thermal Conductivity (λD): 0.030 W/mK.
Suitable for partial-fill (25 or 50 mm residual cavity) or full-fill (10 mm residual cavity).
Lightweight and easy to install.
Acts as cavity rainwater barrier.
Durable and rot-proof.
Permanent insulation for the lifetime of the building.
Can be installed below DPC level.
100% recyclable.
UKCA, UKNI and CE marked.
Foil emissivity 0.03 declared.

General information

Color	Silver
Finish	Foil
Material	Expanded polystyrene (EPS) Aluminium
Shape	Rectangle
Length	1200 mm
Width	450 mm
Height	- Manufacturer guidance Thickness: 55–170 mm.

Uniclass	Pr_25_71_63_26 Expanded polystyrene (EPS) boardsPrimary
CAWS	F30/150 Full fill cavity insulation F30/10 Full fill cavity insulation F30/12 Partial fill cavity insulation F30/155 Partial fill cavity insulation

Specification data - Expanded polystyrene (EPS) boards

Classification data
Standard	To BS EN 13163.
Third-party certification	BAW-22-258-P-A-UK BDA Agrement (KIWA).
Fire performance	To EN 13501-1: Class E.
Thermal conductivity (maximum)	0.030 W/m·K.
Thickness	- Manufacturer guidance 55–170 mm. Consult manufacturer for details and insert requirement.
Face size (nominal length x width)	1200 x 450 mm.
Facing	Aluminium foil.
Thermal resistance	Thermal resistance of the foil 0.12 m² K/W. Thermal resistance of the 10 mm airgap To BS EN ISO 6946: 0.365 m² K/W. Thermal resistance of ≥20 mm airgap To BS EN ISO 6946: 0.713 m² K/W.
