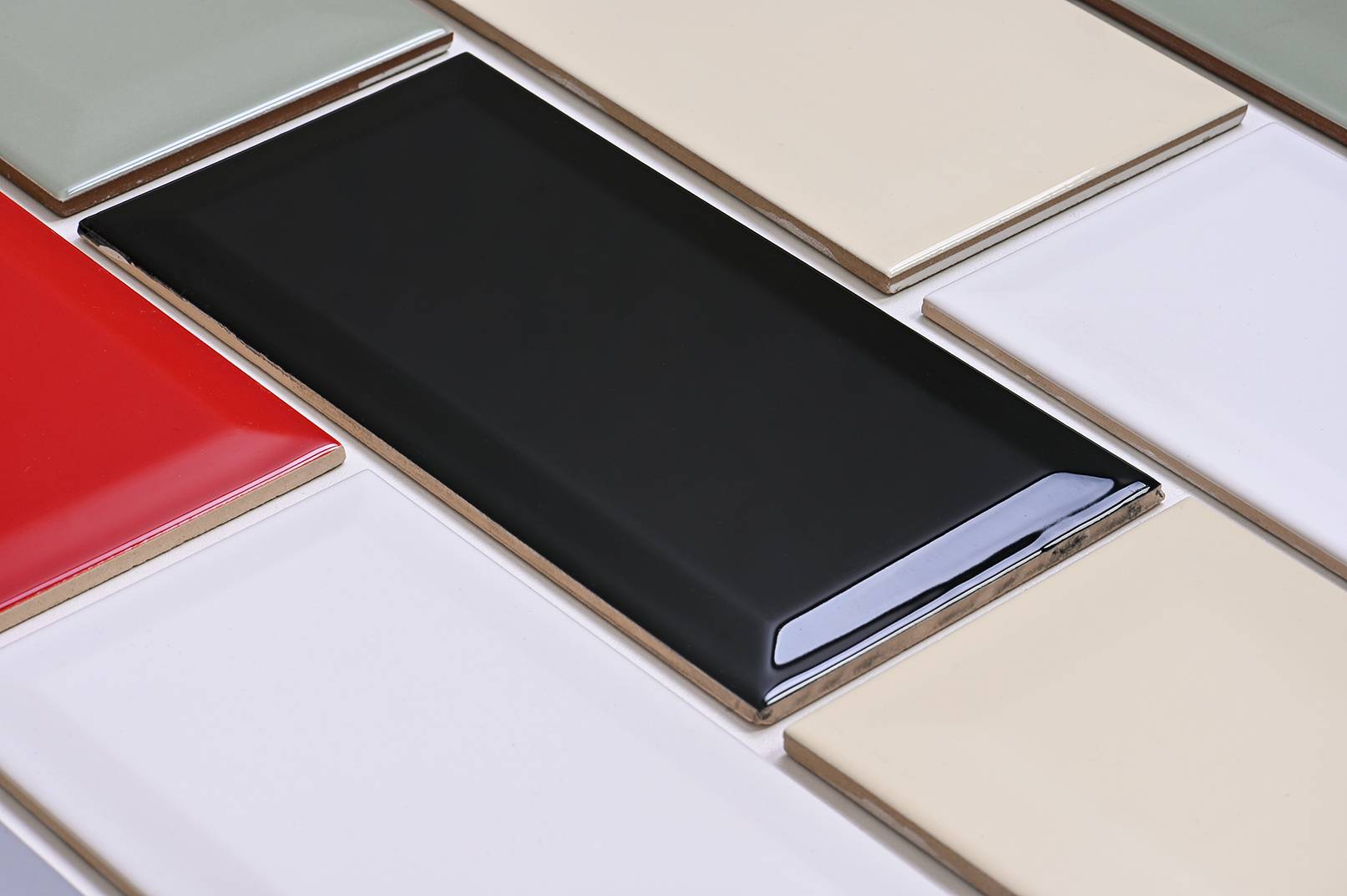

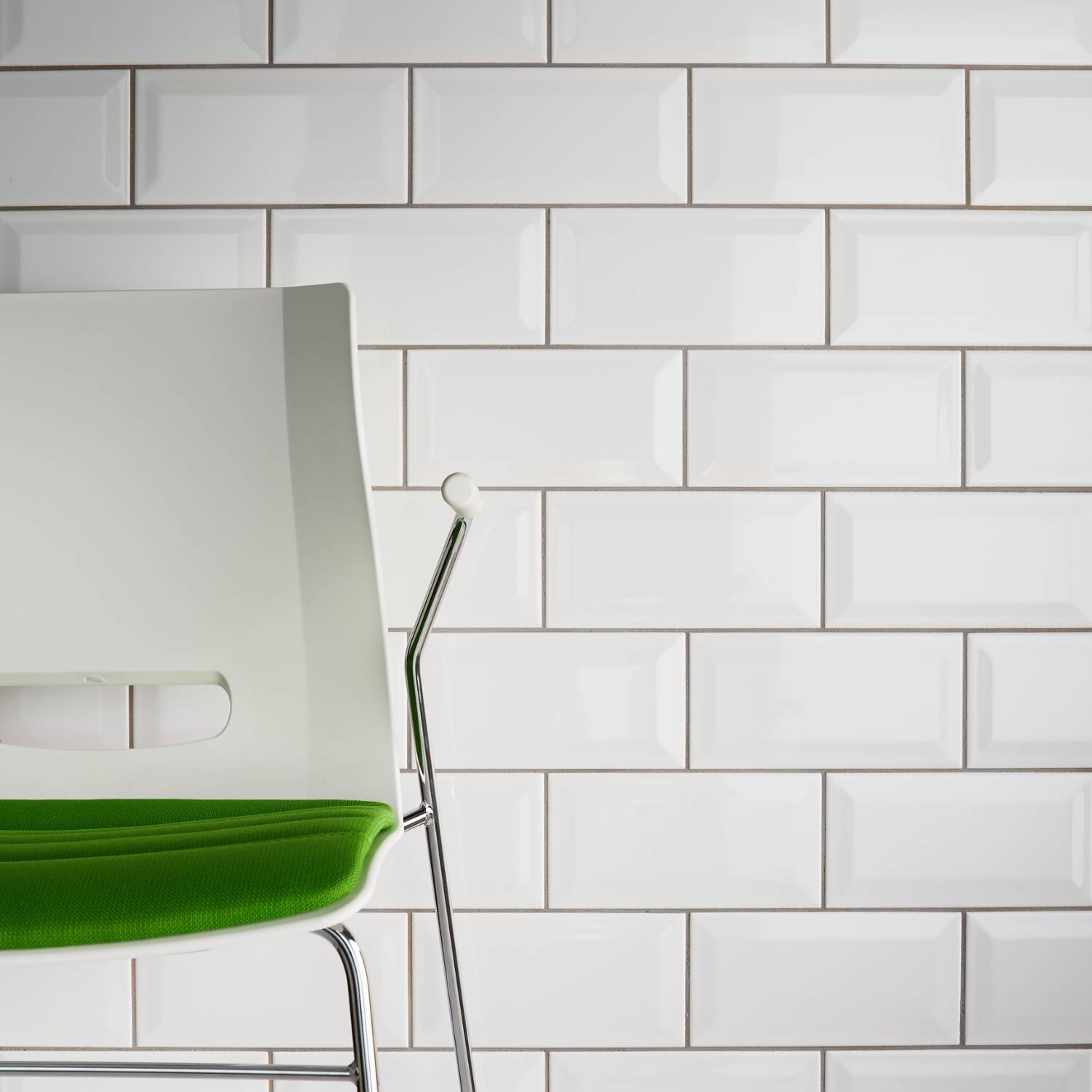

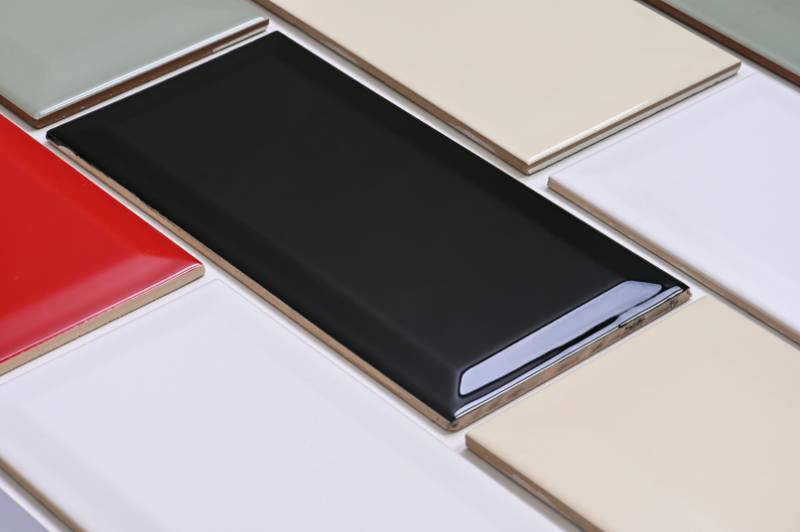

Bevel Brick - Wall Tiles
Verified by manufacturer 10 months ago
AA2010BVBR1AB50
AA2010BVBR1AB50
Glazed ceramic wall tiles.
Application
For internal wall applications.
Description
Glazed ceramic wall tiles.
Features and benefits:
- Up to 10% recycled content.
- Small format.
- Stocked in the UK
- V1, low shade variation.
General information
Color | Black Cream Green Grey Red |
Material | Ceramic |
Shape | Rectangle |
Length | 200 mm |
Width | 100 mm |
Height | 6.5 mm |
Uniclass | |
CAWS | M40/5 Tiling M40/110 Tiling |
SKU Code | AA2010BVBR1AB50, AA2010BVBR2AB50, AA2010BVBR3AB50, AA2010BVBR4AB50, AA2010BVBR5AB50, AA2010BVBR6AB50, AA2010BVBR7AB50 |
Specification data - Ceramic tiles
Classification data | |
Standard | To EN ISO 10545-3, 4, 13, 14. |
Colour | White. Guidance for specification option: LRV 73. |
Finish | Gloss. |
Size | 200 x 100 mm. |
Thickness | 6.5 mm. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Up to 10%. |
Execution | Fixing tiles. |
Weight | 13 kg. |
Tiles | 50 tiles. |
Coverage | 1 m². |
Water absorption | 15-17%. |
Chemical resistance | Class A-B. |
FireRating | Class A1 Non Combustible. |
Sustainability data
Country of material origin | Portugal |
Country of product manufacture | Portugal |
Material | Ceramic |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 10 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type
bevel_brick_-_range_overview_booklet_2024
bevel-brick.black.gloss.wall.tile.shape.rectangular.effect.bevel-structure
bevel-brick.cream.gloss.wall.tile.shape.rectangular.effect.bevel-structure
bevel-brick.dark-grey.gloss.wall.tile.shape.rectangular.effect.bevel-structure
bevel-brick.light-grey.gloss.wall.tile.shape.rectangular.effect.bevel-structure
bevel-brick.red.gloss.wall.tile.shape.rectangular.effect.bevel-structure
bevel-brick.sage.gloss.wall.tile.shape.rectangular.effect.bevel-structure
bevel-brick.white.gloss.wall.tile.shape.rectangular.effect.bevel-structure
