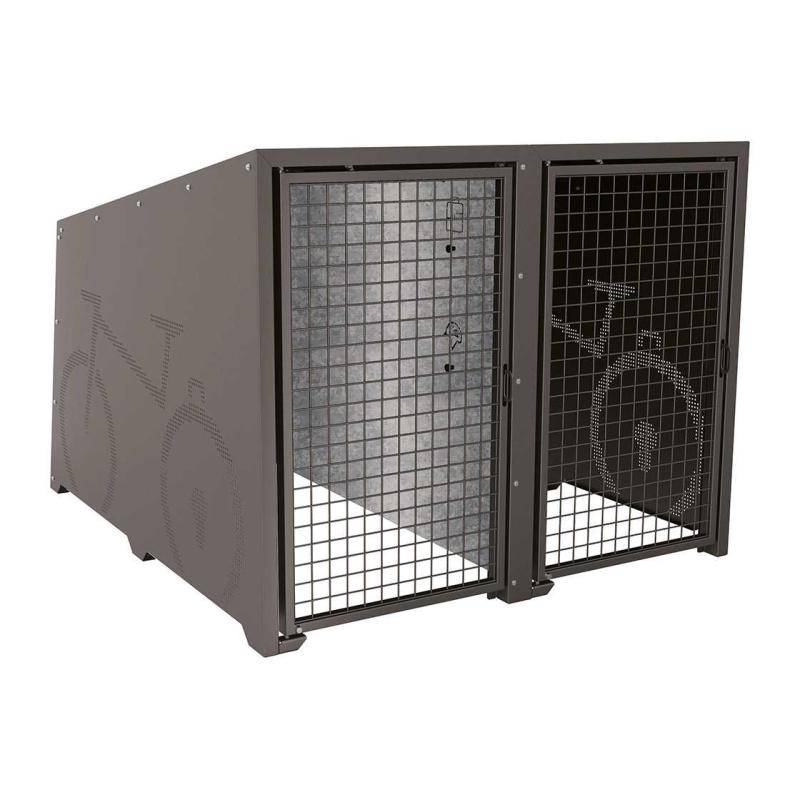

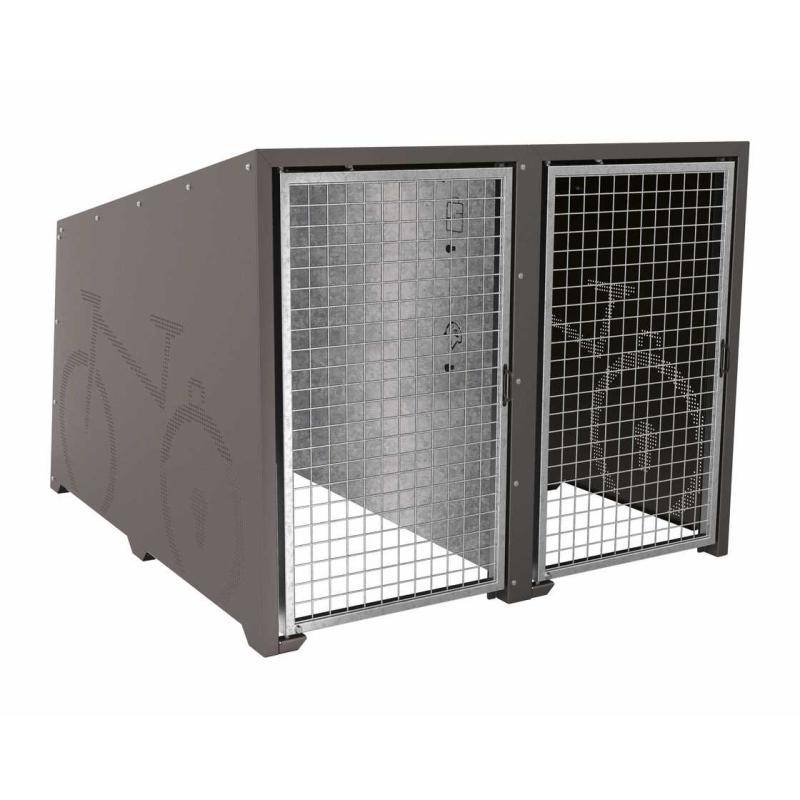

Berlin bicycle locker
Verified by manufacturer 8 months ago
Steel bike locker. Presented in a pair with extensions used in the public realm and private sites.
Application
Suitable for storing bikes.
Bike lockers have several applications in various settings to provide secure storage for bicycles such as public transportation hubs, workplaces, educational institutions etc
Description
The Berlin bicycle locker offers an individual and secure parking solution for two-wheelers, with practical storage for other cycling gear, such as helmets, gloves, pumps and water bottles etc. As options, this bicycle locker offers the possibility to apply a door plate as well as to add a floor rail that will allow to use it to park bikes with more ease.
Features and benefits:
- Individual parking for bikes.
- 2 bicycles per a module with 2-space extension modules
- Available in a range of finish options with single-colour or two-colour painted options.
- Manufactured from galvanized steel.
- Doors in Ø 5 mm mesh welded into a frame, galvanized or galvanized and painted finish.
- Opening and closing of the doors assisted by gas strut.
- Door locked with padlock (not supplied).
- Installed on plates by expansion bolts (not supplied).
- Delivered flat packed for self assembly
- Optional floor guide rail & Secondary security bar in galvanised steel.
- Berlin bicycle locker - Secure shelters - Bicycle and motorbike solutions - Procity UK
General information
Color | Red Blue Green Brown Silver |
Finish | Galvanized Painted Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 2055 mm Guidance for specification option: Depth |
Width | 1820 mm |
Height | 1450 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q50/212 Cycle lockers N10/220 Lockers |
Specification data - Stainless steel cycle lockers
Dimensions | |
Width | 1820 mm. |
Depth | 2055 mm. |
Height | 1450 mm. |
Materials | |
Frame | Steel. |
Panels | Mesh. |
Finish as delivered | Galvanized.Galvanized and painted.Guidance for specification option: RAL colours available for paint: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect. |
Accessories | Door plate.Floor rail.None. |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Recyclability | 100% of steel is recyclable |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
