Application

Suitable for:

  • Restaurants.
  • Fast Food outlets.
  • Retail premises.
  • Industrial and commercial applications.

Description

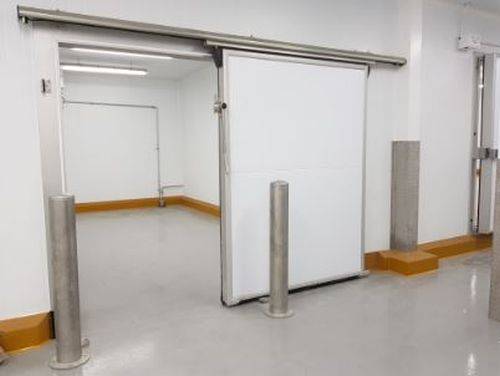

Insulated fridge/ freezer doors are insulated doors with excellent build quality, robust design and competitive pricing.


Features and benefits:

  • Manufactured to size to suit requirements. The door blades are manufactured using a PIR core, capped with silver anodized section, mounted on a silver anodized thermal broken wrap around frame section to suit various panel thickness, all fitted with Fermod furniture as standard.
  • Can be manufactured with various blade thickness ranging from 60 mm, 80 mm, 100 mm, 120 mm and 150 mm, depending on the temperature and customer specification.
  • Product options include: chiller and freezer doors and frames, threshold plates and blocks, blade replacements, various Fermod furniture options, meat rail door, kick plates and blade protection.

General information

Color

White

Finish

Anodized

Material

Stainless steel

Aluminium

Guidance for specification option:

Frame.

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/480 Doorsets

L20/520 Sliding doors

L20/55 Doorsets

Specification data - Aluminium doorsets

Configuration

Slam door.

Slider door.

Doorset size

Guidance for specification option:

Bespoke, consult manufacturer and insert requirements.

Frame

-

Material

Aluminium.

Door leaf

-

Material

Stainless steel.

Accessories

Guidance for specification option:

Bespoke, consult manufacturer and insert requirements.

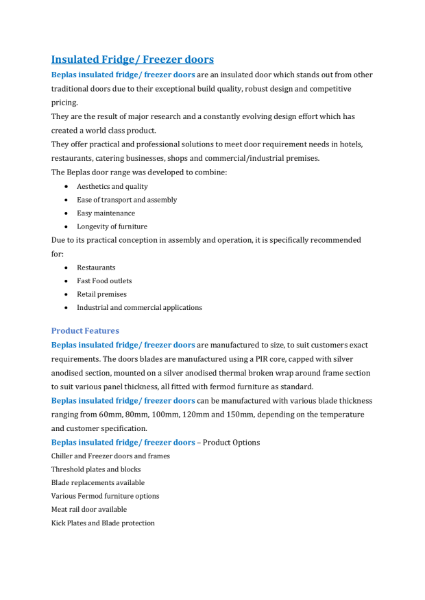

Literature

Fridge/ Freezer Doors

Fridge/ Freezer Doors
