Bench Trunking PVC-U

Verified by manufacturer 25 days ago

Marshall-Tufflex Ltd

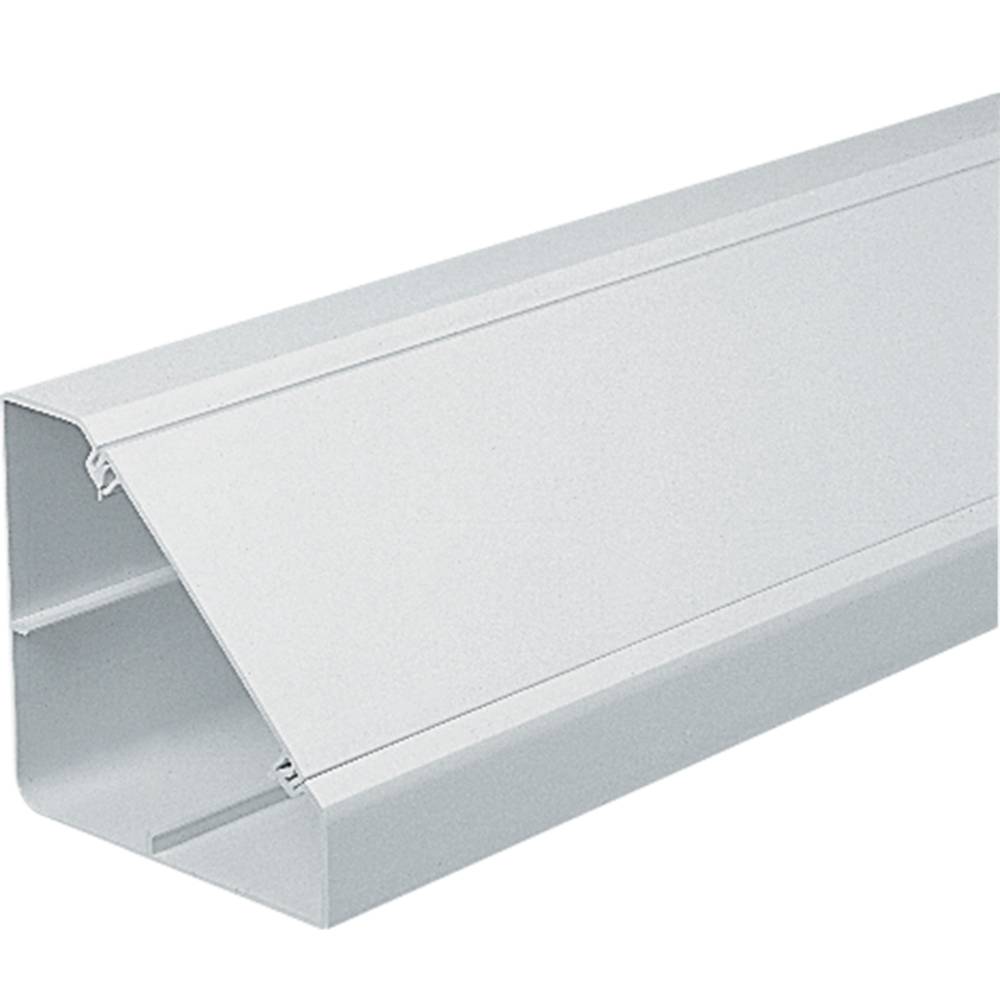

Bench trunking is a robust angled trunking that can be mounted directly on to desks, work benches or fitted under shelving.

Jump to:
+44 (0)1424 856600 Website

Application

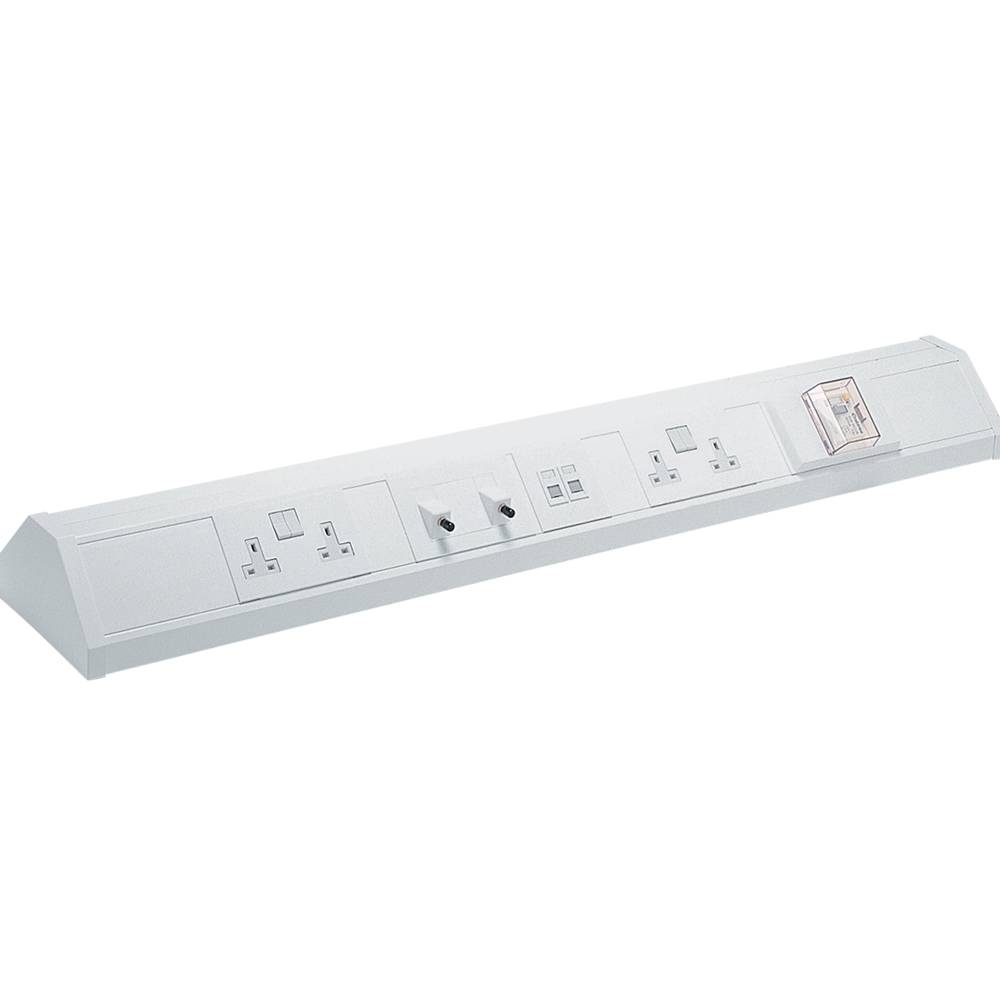

Can be mounted directly on to desks, work benches or fitted under shelving.

Description

Bench Trunking PVC-U.


Features and benefits:

  • 105 x 105 mm.
  • Suitable for desk, bench or worktop applications.
  • Can be subdivided.
  • Adjustable data box 32–47 mm.
  • Compliant up to Cat 7a.
  • Self extinguishing PVC-U.
  • ETL1 lid is available in charcoal as a Part M compliance option.

General information

Color

White

Material

PVC-U

Shape

Triangle

Length

3000 mm

Width

105 mm

Height

105 mm

Uniclass

Pr_65_70_11_96 Wall and ceiling-mounted cable trunking and ductingPrimary

CAWS

V90/350 Cable trunking and cable ducting for wall and ceiling mounting

V90/350 Cable trunking and cable ducting for wall and ceiling mounting

Specification data - Wall and ceiling-mounted cable trunking and ducting

Standards

To BS 7671:2018, BS EN 50085-1:2005+A1:2013, BS EN 50085-2-1:2006+A1:2011, IEC 61084-1:2017, IEC 61084-2-1:2017, BS 5733:2010+A1:2014 and BS EN 60695-2-11:2014.

Installation position

Surface mounted to for desk, bench or worktop.

Resistance to impact

1 J.

Temperature properties

-

Storage and transport temperature (minimum)

-5°C.

Installation and application temperature (minimum)

-5°C.

Application temperature (maximum)

+60°C.

Resistance to flame propagation

Non-flame-propagating.

Protection by enclosure

-

Protection against ingress of solid objects (minimum)

IP4X.

Protection against ingress of water (minimum)

IP4X.

Protection against access to hazardous parts (minimum)

IP4X.

Access method

Access via removable centre lids.

Sizes

105 x 105 mm.

Compartments

One.

Guidance for specification option:

A second compartment can be added with the use of a dividing fillet. Contact manufacturer for details.

Accessories and fittings

-

Types

Couplers.

End caps.

Internal bends.

External bends.

Materials

PVC-U.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

PVC-U

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

68 %

BIM objects

Platform Compatible Version
Revit
-

1

Literature

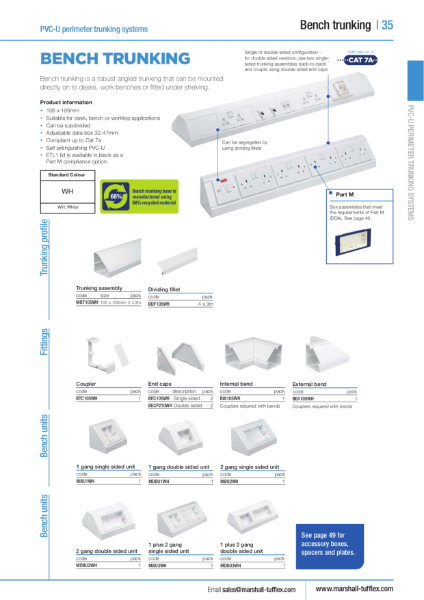

Bench Trunking PVC-U Product Data Sheet

Bench Trunking PVC-U Product Data Sheet
