Bellart Surface Downlight
Application

Residential or commercial interiors including office, hospitality, retail or as architectural feature lighting.

Description

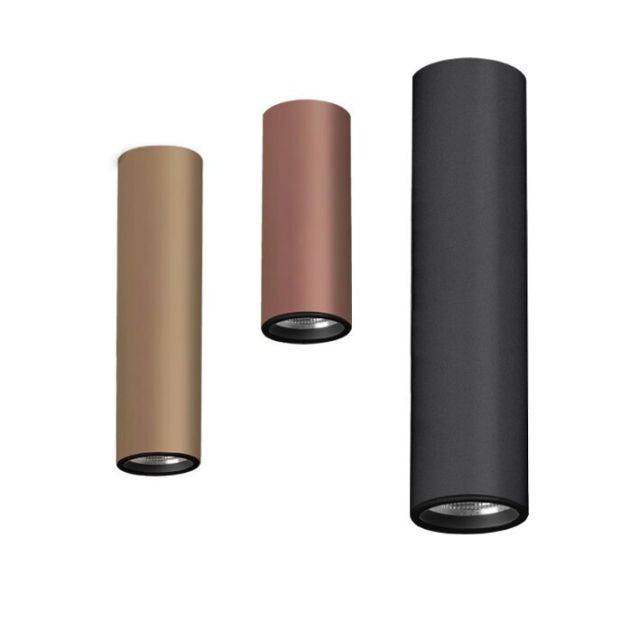

Surface mounted tubular LED downlight.


Features and benefits:

  • Minimalist, slim design for a subtle appearance.
  • Choice of beam angles available.
  • A range of size and colour variations are possible, and different colour front rings are also specifiable.
  • High level of visual comfort.
  • Easy to install.
  • Can be specified with CASAMBI wireless sensor to increase user control.
  • Internal drivers are supplied.

Also available as a mini version and suspended (specified separately).

General information

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Tubular downlight

Size

55 x 180 mm

55 x 260 mm

90 x 260 mm

90 x 350 mm

120 x 180 mm

Show more

WarrantyDescription

Two years

Uniclass 2015

Pr_70_70_48_85 Surface luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Surface luminaires Enhanced data

Standard

Directive 2004/108/EC - EMC.

Third-party certification

Photometrics.

Luminaire description

Surface mounted, tubular pendant.

Classification

-

Electric shock

To BS EN 60598-1, Class I.

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Nominal voltage

230 V.

Luminaire power factor

0.95.

LED luminaires

-

Wattage

6 W/ 760 lm up to 37 W/ 5000 lm.

Colour temperature

2700K.

3000K.

4000K.

Colour rendering index (Ra)

80.

90.

Beam angle

15°.

90 and 120 mm variants only.

20°.

50 mm variants only.

36°.

90 and 120 mm variants only.

40°.

50 mm variants only.

60°.

Available for all variants.

Useful life

50 000 hours (L80B20).

Dimming protocol

DALI Dimming/ Bluetooth.

90 and 120 mm variants only.

Edge cut dimming.

55 mm variant only.

Non-dimming.

Standard.

Integral sensors

Not required.

CASAMBI.

Accessories

Not required.

Honeycomb module.

6/ 9 W.

Optical filters

Sculptural lens

Product Reference

Bellart Surface

Control gear position

Integral within luminaire.

Initial led luminaire efficacy

114 Lm/W.

Duration of emergency mode (minimum)

No emergency.

0 hours.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<19.

Longitudinal

<19.

Efficiency

80%.

Frequency

50–60 Hz.

Output direction

Direct.

Body

Black.

Copper.

Gold.

Graphite.

Grey.

Show more

Front ring

Not required.

Black.

Copper.

Gold.

Graphite.

Show more

Suspension cable

Manufacturer's standard.

Bespoke.

Insert requirements.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
