Bekasport®

Application

  • For multi-sport facilities and areas from schools to professional level.
  • Can be used to provide a robust and safe surround for football, hockey, tennis, netball and basketball courts.
  • The Plus and Super models are suitable for heavier daily uses.

Description

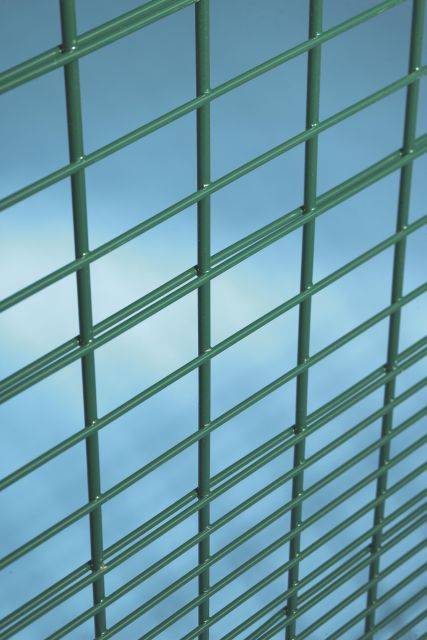

A mixture of purpose-designed welded mesh panels supported by steel posts, with the playing side of the fence flush. The ends of the mesh panels are covered with a continuous cover plate to eliminate the risk of catching on the wires.


Features and benefits:

  • The Bekasport® is for general use in schools and where there is non-intensive use.
  • The Bekasport® Plus is for heavy daily use or where sport is played at a more professional level. Uses Varimesh panels.
  • The Bekasport® Super is for heavy daily use or where sport is played at a more professional level. Uses Varimesh panels. Uses varimesh Securifor 2D panels.
  • The ball court systems are capable of providing a high level of boundary and perimeter security.
  • The fence comes with noise dampening clips which help to reduce noise caused by impacts to the fence.
  • All materials covered by a ten year guarantee.

General information

Color

Green

Grey

White

Black

Finish

Polyester

Material

Steel

Shape

Rectangular

Size

2500 x 3100 mm

2500 x 4100 mm

2500 x 5170 mm

2500 x 6170 mm

WarrantyDescription

Ten years

Uniclass 2015

Ss_25_14_67_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/126 Open mesh steel panel security fencing

Q40/27 Open mesh steel panel general purpose fencing

Q40/30 Proprietary fencing

Specification data - Metal mesh panel fencing systems Enhanced data

Standard

EN 10025-2.

Hot rolled products of structural steels.

ISO 1461.

Hot-dip galvanized coatings on fabricated iron and steel articles.

ISO 3506-1.

Mechanical properties of corrosion-resistant stainless steel fasteners.

ISO 3506-2.

Mechanical properties of corrosion-resistant stainless steel fasteners.

ISO 9227.

Corrosion tests in artificial atmospheres.

ISO 16474-3.

Paints and varnishes - Methods of exposure to laboratory light sources.

Posts

The Bekasport post has specific recesses for attaching the panels using special sound-absorbing clamps. The rectangular post is made of structural steel S235 with a minimum yield strength of 235 N/mm², galvanized and then polyester coated.

Panels

Nylofor 2D Super panel.

Underneath is a Nylofor 2D Super panel with a height of 2030 mm and a mesh size of 200 x 50 mm.


A Nylofor 2D Super panel is fitted at the top, the height depends on the total height of the fencing. Here the mesh size is 200 x 100 mm.

Product Reference

Bekasport®

Bekasport® Plus

Bekasport® Super

Post

Galvanized rectangular hollow section.

Polyester powder coated available in two colours. Coating tested to pass 1000 hours of salt-spray test.

Gates

  • Robusta ball court swing gates are available in single or double leaf options with outer frames constructed from 60 x 60 x 2 mm square hollow section.
  • Galvanized and polyester coated available in two colours. Front hung opening out of the ballcourt. Includes 50 x 10 mm slip latch and 25 mm lockable ground bolt. Double leaf also includes anti-lift brackets.

Accessories

Not required.

Basketball hoop and backboard.

Recessed goalmouth.

Width

2515 mm.

Types

Bekasport®.

Bekasport® Plus.

Bekasport® Super.
