Bekamatic - Gates

Application

  • Factories and workshops.
  • Administrative centres.
  • Public buildings.
  • Play and sport grounds.
  • Schools.
  • Parks.
  • Airports.
  • Military sites.

Description

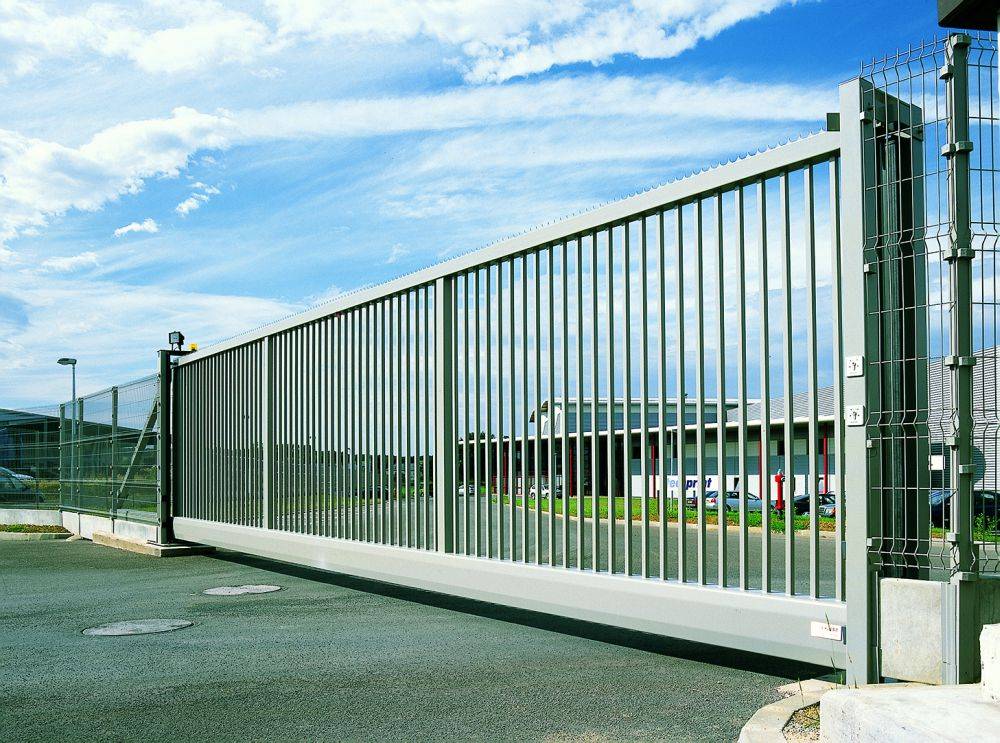

Cantilever automatic sliding gate.


Features and benefits:

  • Intensive use.
  • Highly resistant coating with a strong construction.
  • Special executions possible.
  • Easy installation.
  • The direction of opening (looking from the outside of the fencing): Left/ right.

General information

Color

Green

RAL 6005 (Moss green).

Grey

RAL 7016 (Anthracite grey).

White

RAL 9010 (Pure white).

Black

RAL 9005 (Jet black).

Finish

Polyester powder coated

Plastic coated with polyester. Min. coating thickness: 100 μm. The polyester coating thickness is the average of 10 measurements. At the coast or in corrosive environments, a higher polyester coating thickness is recommended. The typical value is min. 150 μm at an average of 10 measurements (always in consultation between buyer and seller).

Galvanised

Made of galvanized steel sheet (min. 275 g/m² measured double-sided).

Material

Steel

Both the gates and the posts are made of steel grade S250 Z275. Except for the underside beam of the gate wing. For the R2000, the steel grade is S350 Z275, for the R2800 it is S390 Z275.

Frame made of fully welded construction. The tensioning system is built into the gate frame so that the gate itself is kept perfectly horizontal when opening and closing.

Shape

Rectangular

Size

See specification data for options and insert requirements.

WarrantyDescription

Ten years

Standard 10 years guarantee.


Uniclass 2015

Pr_30_59_34_14 Carbon steel gatesPrimary

CAWS

Pr_30_59_34_14 Loose laid gas retardant damp proofing

Primary

Q40/40 Steel

Q40/560 Steel

Specification data - Carbon steel gates Enhanced data

Standard

EN 10346, ISO 9227, ISO 16474-3, G 20, EN 13241-1.

Continuously hot-dip coated steel flat products – technical delivery conditions.


Corrosion tests in artificial atmospheres - salt spray tests.


Paints and varnishes - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps.


Industrial, commercial and garage doors and gates. Bekamatic SC 6000: Product standard - Part 1: Products without fire resistance or smoke control characteristics.


Industrial, commercial and garage doors and gates. Bekamatic SC 10000: Product standard - Part 1: Products without fire resistance or smoke control characteristics.

Dimensions

-

Span

3000 mm.

4000 mm.

5000 mm.

6000 mm.

7000 mm.

8000 mm.

9000 mm.

10000 mm.

11000 mm.

12000 mm.

Other.

Other dimensions available on request.

Height

1200 mm.

1500 mm.

1700 mm.

2000 mm.

2400 mm.

Other.

Other dimensions available on request.

Posts

Carbon steel.

Steel grade S250 Z275. A double guiding and end post is used.

The top of the post is closed off with a cap. That way, any cables can be easily inserted. The post is welded to a floor plate. This floor plate can be attached to the concrete base with 4 M16 ground anchors

Gate leaves

Carbon steel vertical section.

Finish as delivered

-

Applied finish

Powder-coated.

Product Reference

Bekamatic SC 6000

Maximum operation speed: 12 m per minute. With E145 controller.

Bekamatic SC 10000

Maximum operation speed: 18 m per minute. With eP 104 controller.

Colour

Green.

RAL 6005 (Moss green).

Grey.

RAL 7016 (Anthracite grey).

White.

RAL 9010 (Pure white).

Black.

RAL 9005 (Jet black).

Other.

All other RAL colours on request.

Panels

Robusta bar railings.

Square tubes.

Securifor panels.

Nylofor panels 2D.

Nylofor panels 2DS.

Nylofor panels 3D.

Show more

Motorized operation

Single-phase motor.

Bekamatic - Gates Bekamatic SC 6000 - Control E145, Power 370 W, speed 12 m/min.

Three-phase motor.

Bekamatic - Gates Bekamatic SC 10000 - Control EP 104, Power 550 W, speed 18 m/min.

Rails

Poured into foundation.

Standard - Can be reinforced by sliding in 12 mm round iron.

l-iron (PE80).

With 18 mm round iron welded on top.

Access control

Not required.

Card reader.

Code keypad.

Dead man's switch.

GSM module.

Fitted into the control box.

Show more

Beam size

100 x 100 x 3 mm.

Frame constructed with an under-beam (for 3–6 m width).

150 x 100 x 3 mm.

Frame constructed with an under-beam (for 6–9 m width).

200 x 100 x 4 mm.

Frame constructed with an under-beam (for 9–14 m width).

FrameSize

60 x 60 x 2 mm.

Welded frame (for up to 9 m width).

100 x 100 x 3 mm.

Welded frame (for 9–14 m width).

Bar type

Welded bars.

25 x 25 x 1.5 mm, with a distance of 110 mm between the bars. Provided with an external adjustable lock.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

1.3
Revit

Revit 2016

1

1.3
Download now from NBS National BIM Library
