Beech Grove Entrance Canopy - Open sided shelter

Verified by manufacturer 19 days ago

BXMW/BG-ENFO

Broxap Ltd Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • FSC

    FSC

    Certificate type

  • Certificate of Approval

    Certificate of Approval

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • SCI Assessed

    SCI Assessed

    Certificate type

  • TRADA

    TRADA

    Certificate type

An effective yet simple entrance canopy.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Broxap specialise in designing canopies and covered walkways that provide structurally sound and stylish solutions for every type of external requirement. Whether it's their standard or bespoke designs, all canopies work to complement our entire street furniture range.

Canopies and covered walkways are available in both traditional or contemporary styles, these which include glazed structures, polycarbonate canopies, timber structures, cast iron and fabric canopies. In addition, Broxap also have a number of roofing options, which include transparent polycarbonate, glass solutions or opaque architectural cladding.

The versatile canopy styles, materials and flexibility in design means that our canopies suit any application. Uses can include a playground canopycanopies, outdoor dining areas, and passenger waiting shelters, to name a few. Canopies are available as standard or bespoke designed to any requirements

Covered walkways provide a cost effective solution to create a link walkway. Suitable for many purposes from universities and hospitals to shopping arcades and schools. Covered walkways provide a link walkway between existing buildings, providing protection from the weather. Changes in height, direction and roof profile are all easily integrated into our walkway offering which is bolstered by our Design and Build service.

Bespoke Canopies And Walkways

As part of the bespoke Design and Build service, we offer a complete bespoke solution from the initial consultancy through to the installed and finished product. As part of our bespoke canopies and walkways service, they also offer optional extras such as the inclusion of guttering, side screens, solar lighting, a colour range, as well as other add-ins.

Description

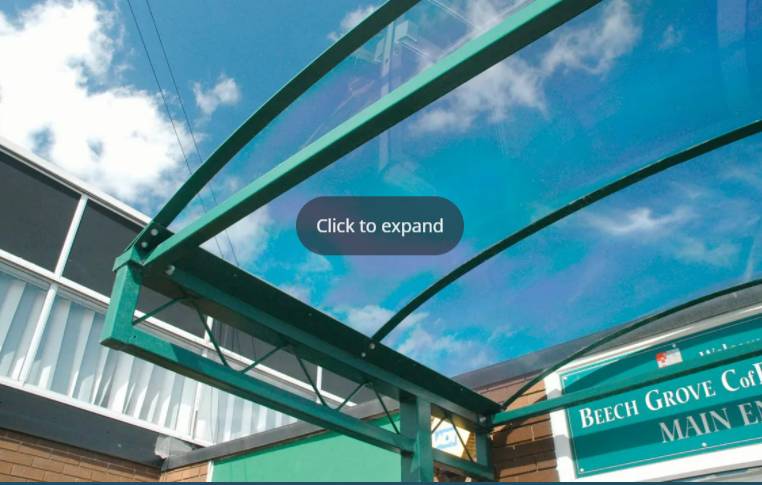

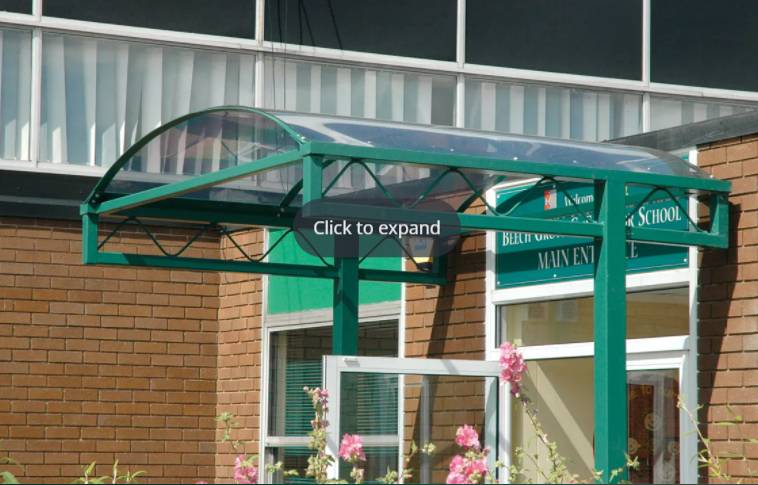

A modest, attractive canopy design with a decorative lattice beam to either side, complete with built in rainwater management draining through the uprights. The Beach Grove is an effective and economical solution to covering an Entrance or Doorway.


Features and benefits:

  • Bespoke Sizes on Request
  • Opal Cladding to the roof
  • Powder Coating to a wide range of colours
  • LED lighting or solar lighting
  • Clear View PETg UV
  • Submerged fixing
  • Integral guttering
  • Robust, tough construction
  • Welded end frames and purlin section made from heavy duty box section assembled with anti-tamper high strength bolts
  • Hot dipped galvanized
  • Full installation service.

General information

Color

Finish

Galvanized

Powder-coated

Primed

Material

Steel

Polycarbonate

Length

2000 mm

Width

2000 mm

Height

2457 mm

Warranty description

One year

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/330 Canopy

B91/385 Shelter

Specification data - Open-sided shelters

Shelter description

Beech Grove Entrance Canopy

Dimensions

-

Plan size

2000 x 2000 mm.

Height

2457 mm.

Frame

-

Finish

Galvanized

Polyester Powder Coated

Zinc Rich Primer

Colour

Cobalt Blue RAL 5013

Goose Grey BS 4800 00-A-05

Holly Green BS 4800 14-C-39

Jet Black RAL 9005

Nimbus Grey BS 4800 10 A 07

Sky Blue RAL 5015

Traffic Red RAL 3020

Traffic White RAL 9016

Traffic Yellow RAL 1023

Anthracite Grey RAL 7016

Roof covering

5 mm PETg UV ClearView.

Rainwater drainage

Channel Guttering.

Accessories

Surface baseplates.

Submerged Baseplates.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA Agrément Certificate

BBA Agrément Certificate

CE Marking Certification

CHAS

CHAS

CHAS Advanced

Constructionline

Constructionline

Constructionline Gold Member

FSC

FSC

FSC® (FSC-C122338) Certification

Certificate of Approval

Certificate of Approval

Insurance

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO14001 Environmental

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

Rospa Safety Charity

Rospa Safety Charity

ROSPA

SCI Assessed

SCI Assessed

SCI Membership

Health & Safety Accreditation

Health & Safety Accreditation

SMAS Worksafe

TRADA

TRADA

Timber Development UK Certificate

Literature

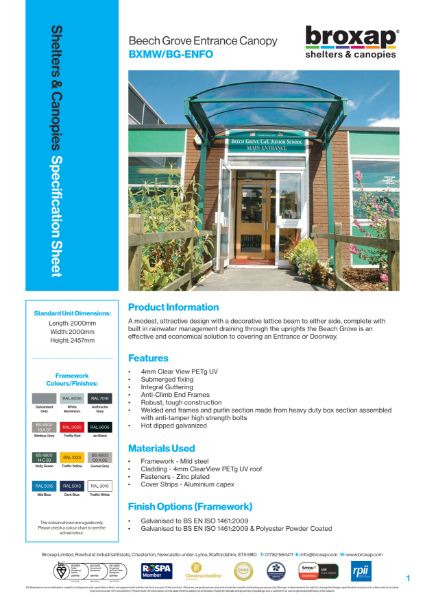

Beech Grove Entrance Canopy Specification Sheet

Beech Grove Entrance Canopy Specification Sheet
