Bed Joint Reinforcement Coil Mesh - Expanded Metal Meshes
Verified by manufacturer 23 days ago

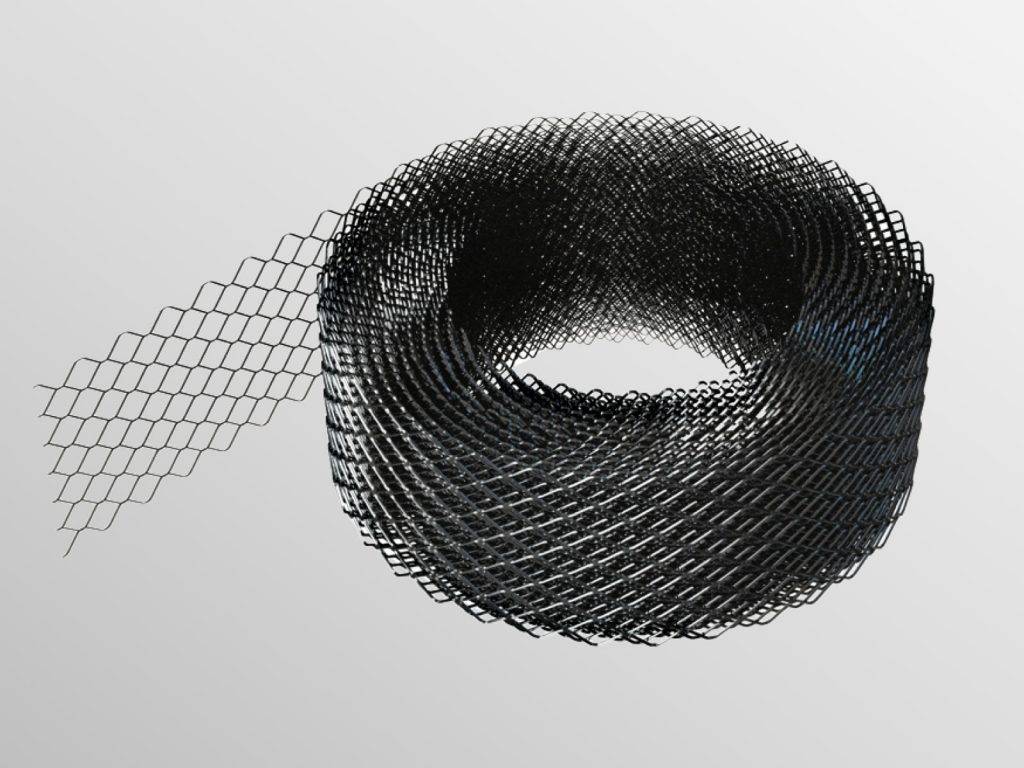

V44 stainless steel reinforcement coil mesh
V44 stainless steel reinforcement coil mesh
Range of expanded metal meshes designed to be incorporated into masonry for crack control.
Application
Bed joint reinforcement designed to be incorporated into masonry for crack control.
Description
Range of expanded metal meshes.
Features and benefits:
- Designed to be incorporated into masonry for crack control.
- Available in stainless steel or galvanized steel.
- Part of a wider range of bed joint reinforcement (ladders specified separately).
General information
Color | Silver |
Material | Stainless steel Steel |
Length | 20000 mm |
Width | 65 mm 115 mm 175 mm 225 mm 305 mm |
Uniclass | |
CAWS | F30/270 Meshwork joint reinforcement |
Specification data - Stainless steel bed joint reinforcement
Standard | Conforms to BS 5628: Part 2 2000. |
Configuration of bed joint reinforcement | Expanded metal.Guidance for specification option: Designed to be incorporated into masonry for crack control. Mesh size: 20 x 10 mm. |
Dimensions | |
Ladder or truss width (overall) | 65 mm.115 mm.175 mm.225 mm.Manufacturer guidanceAlso available in 305 mm widths in galvanized steel (specified separately). |
Reinforcement material | Stainless steel. Guidance for specification option: 1.11 kg/m². To BS EN 10088-2, grade 1.4301. Manufacturer guidanceSupplied as a 20 m coil. |
Accessories | None. WINDOW Window Reveal Support. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature

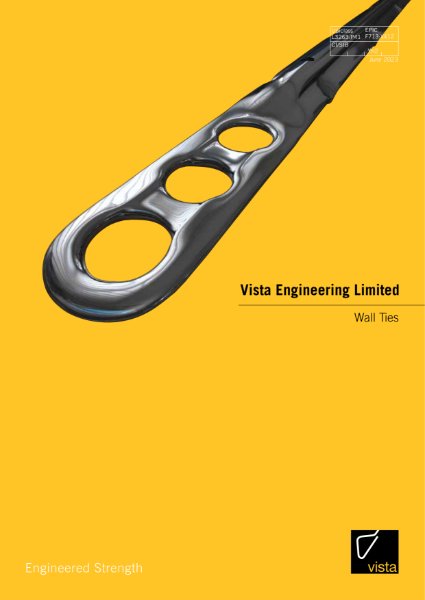

Wall Ties Brochure

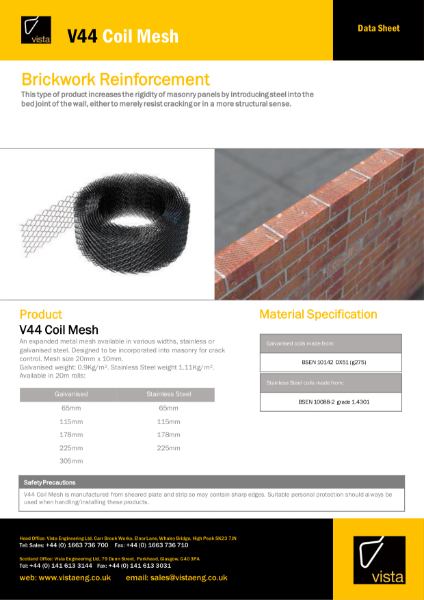

V44 Coil Mesh Data Sheet
