Application

Washrooms, especially for tight spaces.

Description

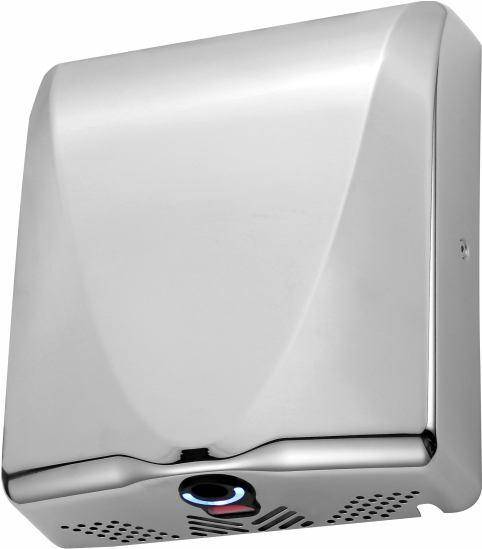

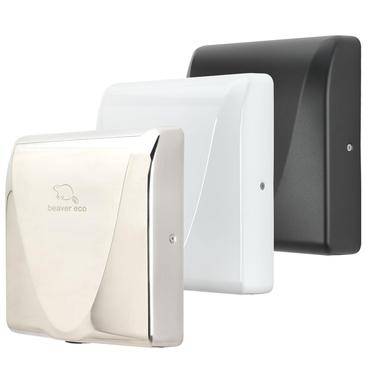

Slim, eco-friendly blade hand dryer available in three colours.


Features and benefits:

  • Ultra-slimline profile, suited to tight washroom spaces.
  • HEPA filter.
  • Solid stainless steel cover - vandal resistant.
  • High-speed single blade air outlet.
  • 10–12 second drying time.

General information

Color

Silver

White

Black

Finish

Powder-coated

Brushed

Shape

Rectangle

Length

102 mm

Width

286 mm

Height

321 mm

Warranty description

Two year

Guidance for specification option:

First year: parts and labour.

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Specification data - Hand dryers

Form

High-velocity air through HEPA filter.

Guidance for specification option:

  • Warm air speed output: 100 m/s.
  • Drying time: 10–12 seconds.
  • Air output temperature: 40°C.

Operation

Automatic.

Timer

Fixed.

Guidance for specification option:

60 seconds auto-shut off.

Electrical supply

-

Power rating

Manufacturer's standard.

Guidance for specification option:

  • Motor type: 600 W.
  • Heater element: 400 W.

Rated operational voltage (Ue)

230 V a.c.

Frequency

Manufacturer's standard.

Body

-

Material

Manufacturer's standard.

Guidance for specification option:

Weight: 3.5 kg.

Finish

Manufacturer's standard.

Guidance for specification option:

See Colour guidance for details.

Colour

Stainless steel.

Guidance for specification option:

Brushed.

White.

Guidance for specification option:

Powder-coated.

Black.

Guidance for specification option:

Powder-coated.

Ingress protection (minimum)

IP23.

Guidance for specification option:

Isolation: Class 1.

Dimensions

321 x 386 x 102 mm.

Guidance for specification option:

Height x width x depth.

Noise level at 1 m (maximum)

60–74 dB(A).

Features

Hands only.

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
