BeamTech CG-Line - Self Contained Beam Light
Verified by manufacturer 6 months ago
BT1SD-B3 - BeamTech Small 1 x 250 lm, 3 h
BT1SD-B3 - BeamTech Small 1 x 250 lm, 3 h

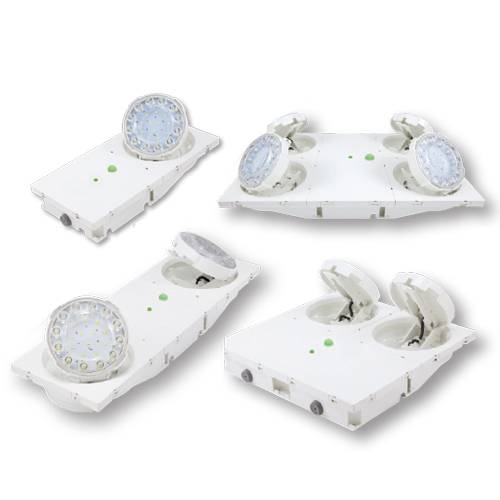

High flux luminaire with configuration of two directional LED lamp heads for escape route and open area lighting.
Application
- Wall or ceiling surface mounting.
- Suitable for use in large open areas (supermarkets, warehouses, cinemas, theatres, factories, shopping malls, industrial units and stadiums etc.).
- Suitable for commercial applications.
Description
BeamTech provides efficient illumination of long, narrow escape routes and general wide coverage of a specific area when positioned at any degree specified to each other, in locations where higher illumination is required.
Designed as an aesthetic alternative to traditional solutions, the battery and configurable light heads are contained in the same unit making it a good choice for public areas. Equally, its IP65 ingress protection and IK07 impact resistance make it perfect for even the harshest of industrial environments.
The LEDs within the BeamTech alongside the automatic testing and monitoring devices (using CGLine+ versions) significantly reduces the operating and maintenance costs of the installation.
Features and benefits:
- High flux luminaire.
- Configuration of two directional LED lamp heads.
- Installation up to 25 m (30 m) with optimum spacing of 34.6 m (40.28 m) for 1 lux (0.5 lux) illumination.
- E-focus programming. Narrow and wide light distribution, programmed by the user.
- One product applicable for escape route or open area illumination.
- User/ installer to define light distribution to fit the application.
- Suitable for use in large open areas.
- New modern and flexible design, wall or ceiling mounted.
- Mains and communication cabling option from all housing sides (back and side entry).
- Locking mechanism of light head preventing accidental change of light heads configuration.
- For autonomous installation or connection to the DALI monitoring system.
- Low operating costs via low connected load.
- Simple fault analysis and status display via a green/ red bi-colour LED.
- Variants of 250 lm, 500 lm and 1000 lm light output.
- Each light head can reach up to 500 lm maximum.
- 12 dedicated LEDs in each light head.
- Optional protection grid.
- Restriction of hazardous substances (RoHS) compliant.
General information
Color | White |
Material | Polycarbonate |
Shape | Other Circle Square |
Length | 311 mm |
Width | 311 mm |
Height | 69 mm |
Uniclass | |
CAWS | V90/530 Self-contained emergency luminaires V90/510 General-purpose luminaires V90/510 General purpose luminaires V90/510 Luminaires |
Specification data - Self-contained emergency luminaires
General requirements | Control gear generally. |
Manufacturer | Eaton Electric. |
Standards | To BS EN 60598-2-22. |
Third party certification | Not required. |
Supply circuit conductor connections | Screw terminals. |
Input voltage | 220–240 V a.c.Guidance for specification option: 50/60 Hz. |
Mode of operation | Non-maintained. |
Duration | 3 h. |
Luminaire type | Safety luminaire for escape route and open area lighting. |
Features | Adjustable light head. |
Ingress protection (minimum) | IP65. |
Control gear position | Locate components necessary for the operation of the luminaire within the luminaire body. |
Indicators | |
Charging | Green/ red bi-colour LED. |
Fault | Green/ red bi-colour LED. |
Position within luminaire | Readily visible. Fix to luminaire body. |
Batteries | |
Type | Sealed nickel-cadmium.Guidance for specification option: NiCd 3D, 3.6 V/ 4 Ah. |
Lamps | |
Number | 1. |
Type | Directional LED lamp heads. |
Wattage | 2.4 W (3 VA). |
Luminous flux | 250 lm. |
Testing | No testing system. |
Dimming protocol | None. DALI. Guidance for specification option: DALI bus through-wiring up to 2.5 mm². |
Connection | Up to 2.5 mm² screwless pushwire and multicore. Manufacturer guidanceConnection terminals. |
Insulation | Class II. Manufacturer guidanceInsulation class. |
Impact protection (minimum) | IK07. |
Ambient temperature | 50°C. Guidance for specification option: Permissible ambient temperature +5°C to +50°C. |
Housing | Polycarbonate (850°C glow wire resistant). |
Housing colour | Signal white (RAL 9003). |
Dimensions | 311 x 311 x 69 mm. Manufacturer guidanceLength x width x height. |
Mounting | Wall-mounted (surface). Ceiling-mounted (surface). |
Accessories | Not required. BeamTech Large/ BeamLite II Grid (54 x 44 x 22 mm) - BTLGRID. |
