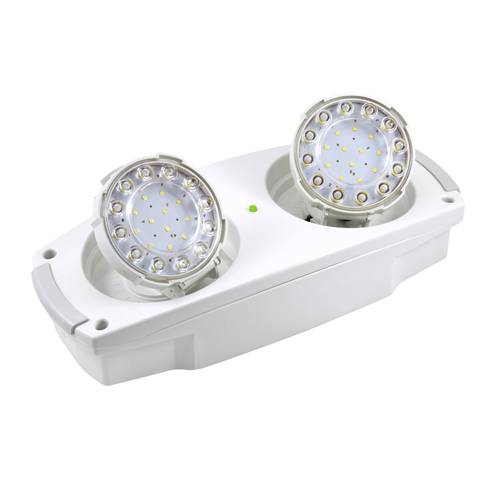

BL2MC-A3 - BeamLite II 2 x 100 lm
High flux luminaire with configuration of two directional LED lamp heads for escape route and open area lighting.
BeamLite II, high-intensity double light sources, provide efficient illumination of long, narrow escape routes, but can also provide general wide coverage of a specific area when positioned at any degree specified to each other, in locations where higher illumination is required. Also provides a complete solution from a single luminaire, whether providing lighting for a large factory floor, a shopping centre or an entertainment venue.
Rated at IP65 ingress protection and with IK07 impact resistance, BeamLite II can be used in even the harshest of environments while the new design, with compact efficient batteries and LED light heads contained in the same unit, also makes these emergency light fittings applicable for commercial applications.
Features and benefits:
Color | White |
Material | Polycarbonate |
Shape | Other Circle |
Length | 417 mm |
Width | 178 mm |
Height | 106 mm |
Uniclass | |
CAWS | V90/530 Self-contained emergency luminaires V90/510 General-purpose luminaires V90/510 General purpose luminaires V90/510 Luminaires |
General requirements | Control gear generally. |
Manufacturer | Eaton Electric. |
Standards | To BS EN 60598-2-22. |
Third party certification | Not required. |
Supply circuit conductor connections | Screw terminals. |
Input voltage | 220–240 V a.c.Guidance for specification option: 50/60 Hz. |
Mode of operation | Non-maintained. |
Duration | 3 h. |
Luminaire type | Safety luminaire for escape route and open area lighting. |
Features | Adjustable light head. |
Ingress protection (minimum) | IP65. |
Control gear position | Locate components necessary for the operation of the luminaire within the luminaire body. |
Indicators | |
Charging | Green/ red bi-colour LED. |
Fault | Green/ red bi-colour LED. |
Position within luminaire | Readily visible. Fix to luminaire body. |
Batteries | |
Type | Sealed nickel-cadmium.Guidance for specification option: 4 Cs NiCd, 4.8 V/ 1.7 Ah. |
Lamps | |
Number | 2. |
Type | Directional LED lamp heads. |
Wattage | 1.6 W (2.28 VA). |
Luminous flux | 200 lm. |
Testing | No testing system. |
Dimming protocol | None. |
Insulation | Class II. Manufacturer guidanceInsulation class. |
Impact protection (minimum) | IK07. |
Ambient temperature | +5°C to +40°C. Manufacturer guidancePermissible ambient temperature. |
Housing | Polycarbonate (850°C glow wire resistant). |
Housing colour | Signal white (RAL 9003). |
Dimensions | 417 x 178 x 106 mm. Manufacturer guidanceLength x width x height. |
Mounting | Wall-mounted (surface). Ceiling-mounted (surface). |
Accessories | Not required. BeamTech Large/ BeamLite II Grid (54 x 44 x 22 mm) - BTLGRID. |
