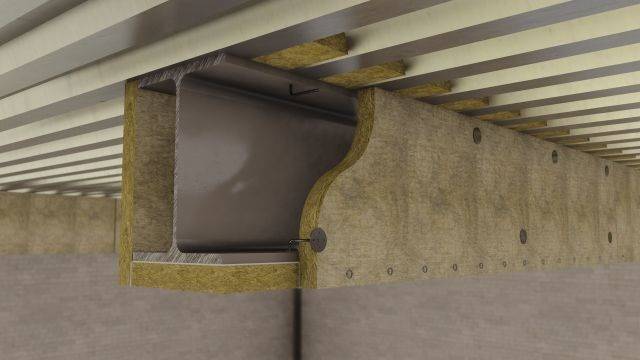

BeamClad®
Verified by manufacturer 3 months ago
A series of ROCKWOOL Insulation boards which offer a comprehensive range of solutions for fire protection of structural steel beams.
Application
Fire protection solutions for structural steel and soffit protection.
Description
BeamClad® is manufactured using high performing, non-combustible stone wool insulation. Available in a plain, foil or tissue faced finish, BeamClad® can provide up to four hours fire protection to structural steel. BeamClad® boards are sized 2000 x 1200 mm, in a range of thicknesses from 25–50 mm (as standard).
Features and benefits:
- Tested to provide up to four hours' fire resistance.
- Choice of fixing systems which include dry joint and glued joint systems.
- Available with a choice of finishes including foil facing and black or white tissue facing.
- Solutions available for structural steel A/V factors up to 350.
- Assessed to provide up to four hours' fire resistance for upgrading concrete floors.
- The product has been authorized for use in LUL surface and sub-surface premises when installed in accordance with the data sheet.
General information
Material | Stone wool |
Shape | Rectangle |
Length | 2000 mm |
Width | 1200 mm |
Height | 25 mm 30 mm 35 mm 40 mm 50 mm |
Uniclass | |
CAWS | K11/885 Fire protection board K11/890 Board K11/60 Board |
Specification data - Compressed mineral wool fire protection boards
Fire rating | To ENV 13381-4:2002 and EN 13881-4:2013, up to 4 hours.Guidance for specification option: ROCKWOOL BEAMCLAD® fire protection materials have been tested in accordance with ENV 13381-4:2002 & EN 13881-4:2013 for the fire protection of loadbearing steelwork for up to 4 hours protection. |
Thickness | 25 mm.30 mm.35 mm.40 mm.50 mm. |
Finish | Plain.Tissue faced.Foil faced. |
Execution | Installing non-gypsum-based panels. |
Density | Nominally 167 Guidance for specification option: 180 kg/m³ |
Fixing | Clip fixed – dry application – dry joints. Glued noggins – dry application – dry board joints. Glued noggins – glued application – glued board joints. Welded noggins – dry application – dry board joints. Welded pins – dry application – glued board joints. |
Accessories | Not required. Small clips. Guidance for specification option: To fit up to 30 mm. Large clips. Guidance for specification option: To fit 35 - 40 mm. FIREPRO glue. Nails. Guidance for specification option: Not supplied by ROCKWOOL. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Can be recycled Manufacturer guidanceROCKWOOL stone wool insulation is recyclable and can be transformed into new ROCKWOOL products. Please contact us for details of how we can work together to recycle waste ROCKWOOL stone wool material that may be generated during on-site installation. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 ARCHICAD | - | 1 |
 Revit | Revit 2016 | 4 |
 AECOsim | - | 1 |
 Vectorworks | - | 1 |
 IFC | IFC2X3 | 3 |
