BC634 Dolphin Behind Mirror Infrared Soap Dispenser

Verified by manufacturer 3 months ago

Dolphin Solutions

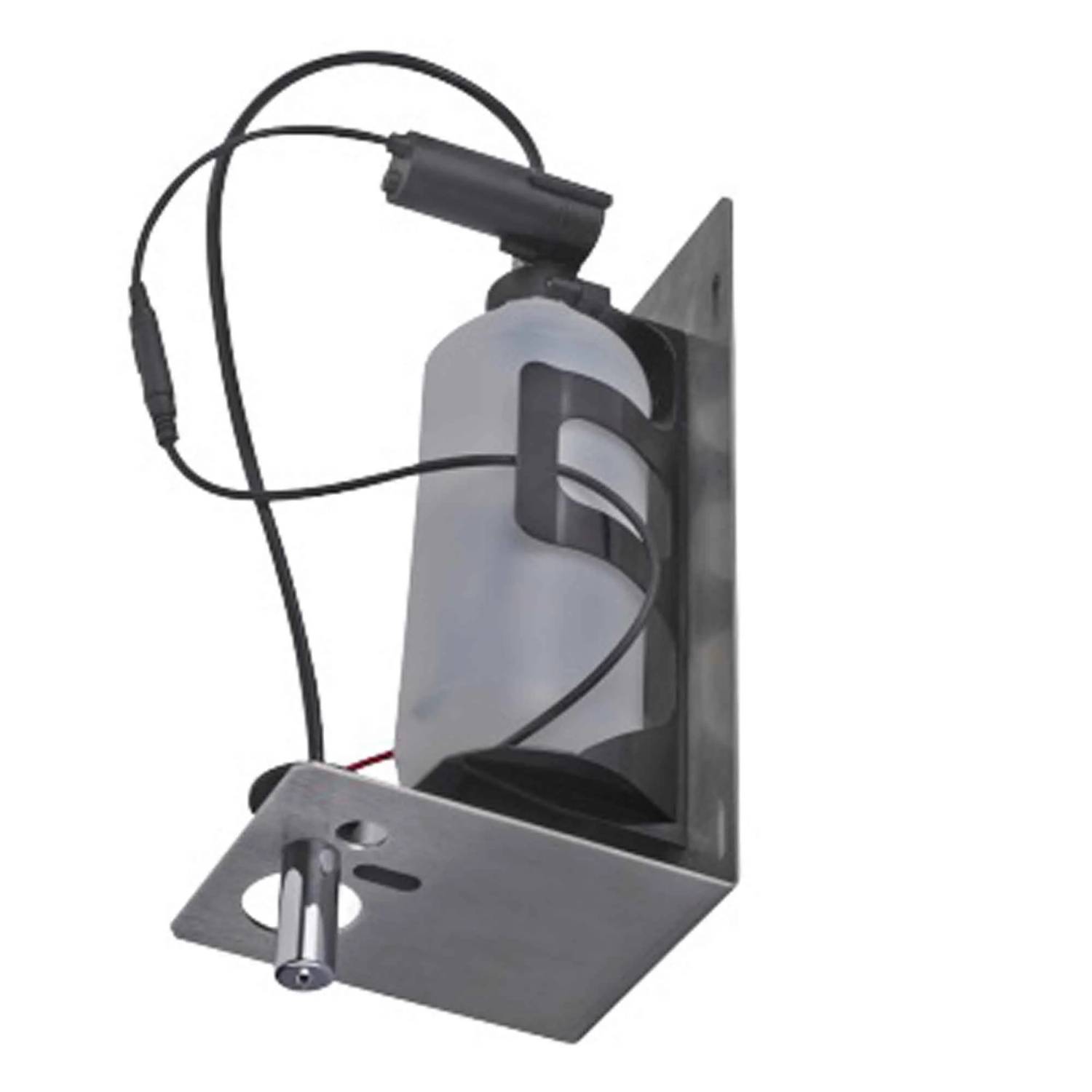

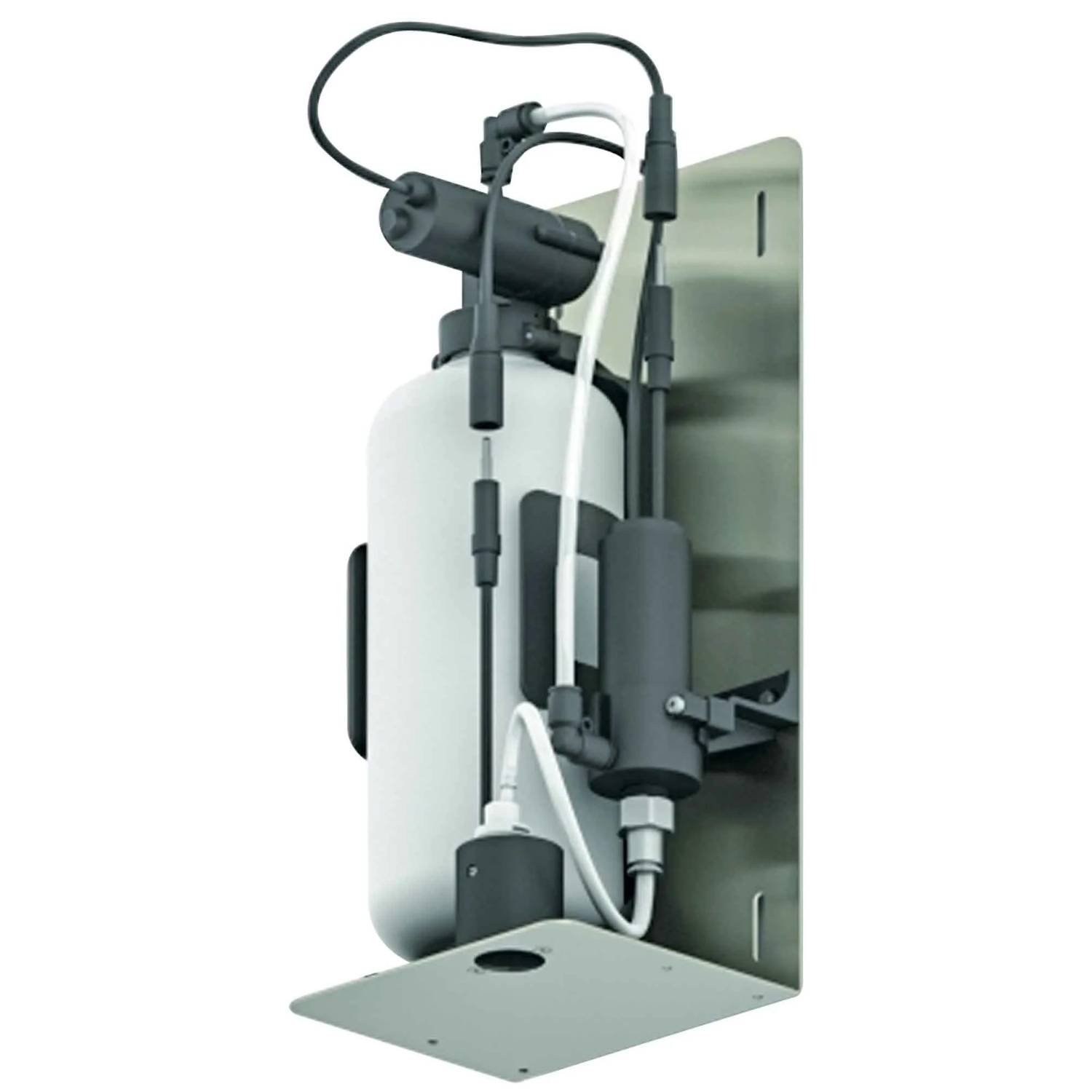

Behind mirror, infrared, soap dispenser.

Jump to:
+44 (0)1424 202224 Website

Application

  • Suitable for use in contemporary washroom areas.
  • Designed to be fitted behind a hinged mirror or panel (access required to replenish soap supply).

Description

Behind mirror, infrared, soap dispenser.


Features and benefits:

  • Vandal resistant.
  • Powered by 9 V transformer.
  • Window in baseplate for checking soap levels.
  • Touch free, thus eliminating cross-contamination.
  • 1.8 ml of soap per dispensing cycle, adjustable on-site with Dolphin keyring.
  • Chrome plated nozzle designed to protrude slightly below the bottom edge of the mirror, making it quick and easy to identify and use.
  • Easy-to-use refill button (either on the dispenser pump or by means of the remote control).
  • The peristaltic pump allows the use of different soap viscosities, including antibacterial gels.
  • 1000 ml refillable plastic container, no need to purchase unique soap reservoirs.

General information

Color

Silver

Black

White

Finish

Chrome plated

Shape

Other

Length

320 mm

Width

140 mm

Height

120 mm

Warranty description

Two year

Uniclass

Pr_40_70_22_81 Soap dispensersPrimary

CAWS

N13/458 Soap dispensers

Product range

Soap dispensers / Behind mirror

Specification data - Soap dispensers

Form

Wall mounted (behind mirror).

Materials

-

Finish and colour

Chrome plated.

Operation

Automatic.

Dimensions

320 x 140 x 120 mm.

PowerSource

9 V transformer.

Capacity

1.8 ml.

BIM objects

Platform Compatible Version
IFC
-

1

Revit
-

1
