BC5085-CWRC Roseless Combined Doc M Set – Wall Mounted Toilet
Verified by manufacturer 5 days ago

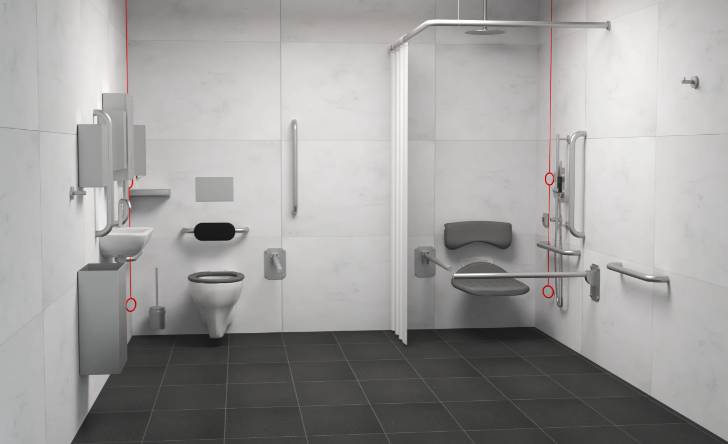

Roseless combined Doc M set with wall mounted toilet, stainless steel accessories and right or left hand transfer.
Application
Suitable for accessible combined WC and shower applications.
Description
Roseless back to wall Doc M WC and shower set is a cost effective alternative to sourcing individual items and delivered in one package for easy installation.
Features and benefits:
- Combined accessible WC and shower set pack.
- Roseless design with wall mounted toilet.
- Cost effective.
- Achieves a consistent and co-ordinated aesthetic throughout the washroom.
- Stainless steel accessories.
- The complete set ensures compliance from specification to installation.
- Right or left hand transfer option.
- Compliant with Part M of the Building Regulation and Doc M.
Complete set includes:
- Tap (DS213.150.150.1).
- Thermostatic mixing valve (AL0220 TMV3).
- Basin (DC1140R/L).
- Waste trap (DB790-316).
- Waste grate (DB798S).
- Toilet tissue dispenser (BC4302).
- Toilet brush (BC727).
- Four coat hooks (BC725).
- Soap dispenser (BC360).
- Paper towel dispenser (BC958).
- Hand dryer (BC2008).
- Waste bin (BC951).
- 400 mm shelf (BC750).
- 200 mm shelf (BC751).
- Two alarm pull cords (BC5083-121).
- Seven 600 mm grab bars (BC5063-02).
- 450 mm grab bar (BC5063-01).
- Three drop down hinged support rails (BC5023-07).
- Back rest (BC5064-08/ BC5083-PAD-WH).
- Concealed cistern (DB595).
- Flush plate (DB595).
- Toilet pan (DC1200).
- Toilet seat ring - grey contrasting (DC1210).
- Wall hung pan frame (DC1200-FRAME).
- Mirror 1000 x 400 mm (BC5083-101).
- Shower valve (DB3100), WRAS certified.
- Shower head (DB3001), WRAS certified.
- Shower arm (DB3060-200), WRAS certified.
- Shower outlet (DB3070), WRAS certified.
- Shower hose (DB3041), WRAS certified.
- Hand held shower head (DB3020).
- Slider rail and holder (DB3090.450).
- Shower curtain rail (BC5083-11).
- Shower curtain rail ceiling stay (BC5083-12).
- Two shower curtains (BC5083-14).
- 24 shower curtain Hooks (BC5083-13).
- Shower back rests (BC5083-34).
- Shower seat (BC5083-33).
General information
Color | Grey White Silver |
Finish | Brushed Powder-coated |
Material | Stainless steel Accessories. |
Shape | Other |
Uniclass | |
CAWS | N13/311 Unisex accessible WC equipment packages (Document M) N13/312 Unisex accessible shower room equipment packages (Document M) N13/12 Unisex accessible WC equipment packages (Document M) N13/14 Unisex accessible shower room equipment packages (Document M) |
Specification data - Accessible WC equipment packages
Standards | In accordance with Approved Document M. |
Form | Complete accessible WC and shower Doc M package and fittings. |
ArrangementWC arrangement. | Wall-mounted. |
Transfer handing | Left-hand.Right-hand. |
Material and colour | - |
WC cisterns | Concealed. |
WC seats | Plastics, grey.Standard. Plastics, white.Optional, please contact manufacturer for more information. |
Handrails | Satin brushed stainless steel.Powder-coated stainless steel. |
Water supply fittings | Thermostatic mixer tap. |
Flowrate | 3.0 L/min. Tap (DS213.150.150). |
Shower curtain and rail | Curtain, white plastic; rail, stainless steel. |
Seat and backrestShower seat and backrest. | Plastics, dark grey. |
MaterialsAccessories material. | Stainless steel. |
FinishAccessories finish. | Brushed satin. Powder-coated. |
LRVAverage LRV (stainless steel fittings). | 39-45%. Contrast difference of 30 between the LRV of fixtures/fittings and surrounding surfaces to assist blind or partially sighted persons in navigating the washroom. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
