BC5063-BTW/L Roseless Doc M WC Set – Back to Wall
Verified by manufacturer 3 months ago
BC5063-BTW - Right
BC5063-BTW - Right

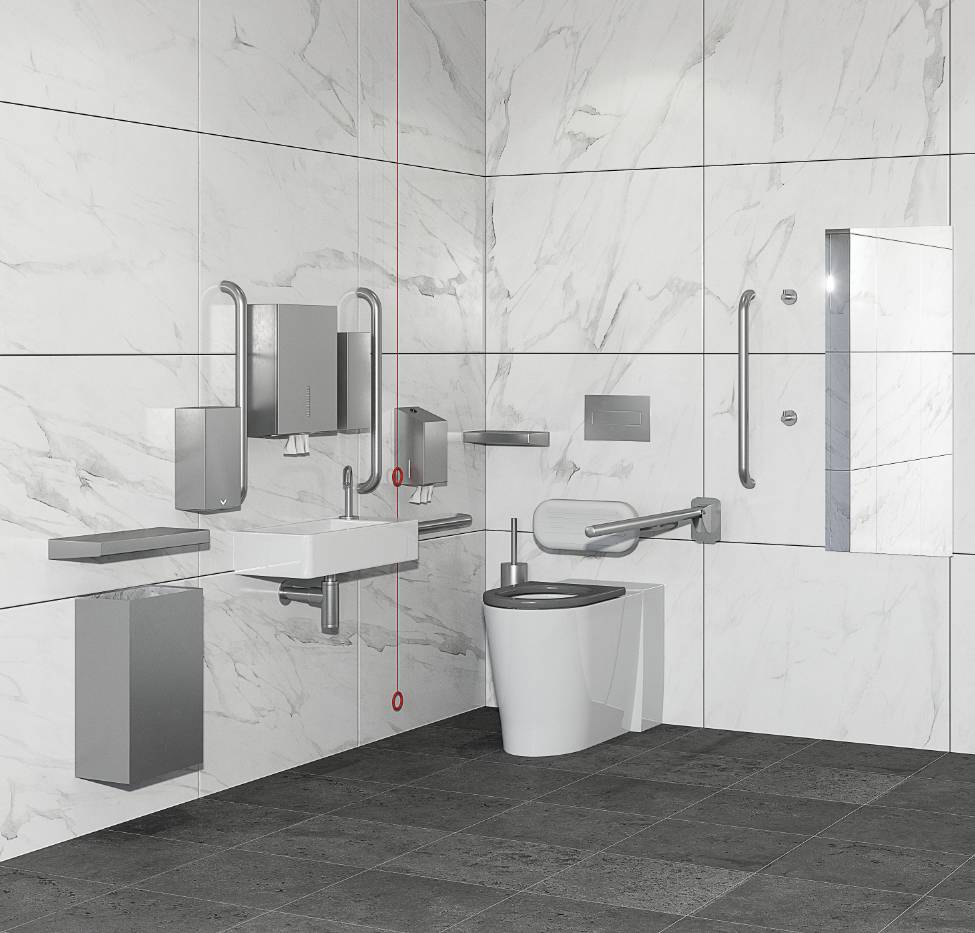

Roseless back to wall Doc M toilet set with stainless steel accessories and right or left hand transfer.
Application
Suitable for accessible WC applications.
Description
Doc M back to wall set is a cost effective alternative to sourcing individual items and delivered in one package for easy installation.
Features and benefits:
- Cost effective.
- Achieves a consistent and co-ordinated aesthetic throughout the washroom.
- Stainless steel accessories.
- Flangeless grab rails give a minimalist appearance.
- The complete set ensures compliance from specification to installation.
- Right or left hand transfer option.
- Compliant with Part M of the Building Regulation and Doc M.
Complete set includes:
- Tap (DS213.150.150.1).
- Thermostatic mixing valve (AL0220 TMV3).
- Basin (DC1140R/L).
- Waste trap (DB790-316).
- Waste grate (DB793S).
- Toilet tissue dispenser (BC4302).
- Toilet brush (BC727).
- Two coat hooks (BC725).
- Soap dispenser (BC238SS).
- Paper towel dispenser (BC958).
- Hand dryer (BC2008).
- Waste bin (BC951).
- 400 mm shelf (BC750).
- 200 mm shelf (BC751).
- Alarm pull cord (BC5083-121).
- Four 600 mm grab bars (BC5063-02).
- 450 mm grab bar (BC5063-01).
- Drop down hinged support rail (BC5023-07SS).
- Back rest (BC5064-10-WH).
- Concealed cistern (DB5510.P).
- Flush plate (DB5550.P.1).
- Toilet pan (DB590).
- Toilet seat ring - grey contrasting (BCZ2038).
- Mirror 1000 x 400 mm (BC5083-101).
General information
Color | Grey White |
Finish | Brushed Powder-coated |
Material | Stainless steel Guidance for specification option: Accessories. |
Shape | Other |
Uniclass | |
CAWS | N13/12 Unisex accessible WC equipment packages (Document M) N13/311 Unisex accessible WC equipment packages (Document M) |
Specification data - Accessible WC equipment packages
Standards | In accordance with Approved Document M. |
Form | Complete accessible WC Doc M package and fittings. |
Arrangement | Back-to-wall pack. |
Transfer handing | Right-hand. |
Material and colour | |
WC cisterns | Concealed. |
WC seats | Plastics, grey.Guidance for specification option: Standard. Plastics, white.Guidance for specification option: Optional, please contact manufacturer for more information. |
Water supply fittings | Thermostatic mixer tap. |
Materials | Stainless steel. Manufacturer guidanceAccessories material. |
Finish | Brushed satin. Powder-coated. Manufacturer guidanceAccessories finish. |
LRV | 39-45%. Guidance for specification option: Contrast difference of 30 between the LRV of fixtures/fittings and surrounding surfaces to assist blind or partially sighted persons in navigating the washroom. Manufacturer guidanceAverage LRV (stainless steel fittings). |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
