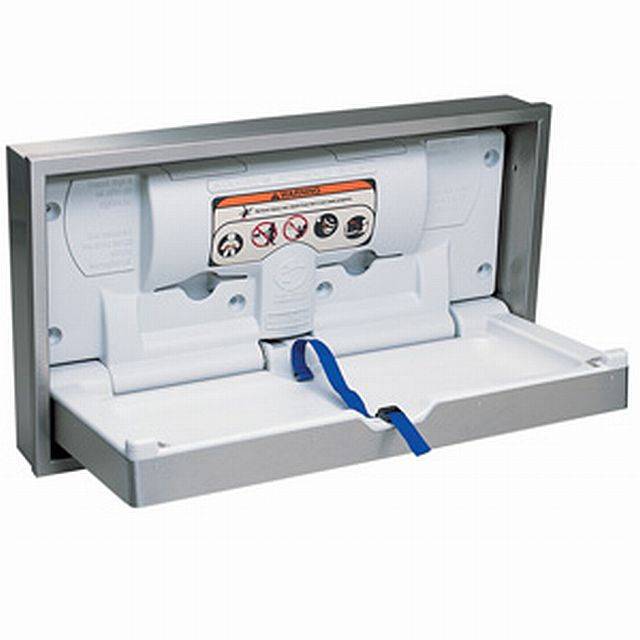

BC100SSC-R Dolphin Clad Stainless Steel Nappy Changing Unit
Verified by manufacturer 3 months ago
A large recessed, wall mounted, stainless steel clad hinged baby changing table.
Application
Suitable for commercial washroom areas.
Description
A large recessed, wall mounted, stainless steel clad hinged baby changing table, constructed from polyethylene with brushed type 304 stainless steel encasement.
Features and benefits:
- Horizontal Changing Table - Recessed
- Designed for age up to 3.5 years and weight less than 22.7kg (50lb)
- Pneumatic gas shock mechanism
- DOC M compliant
- Manufactured from cast 304 grade stainless steel
- ABS tray that is inherently bacterial resistant
- Pneumatic gas shock mechanism to ensure smooth and safe opening and closing
General information
Color | Silver White |
Finish | Satin Brushed |
Material | Stainless steel Guidance for specification option: Encasement. High density polyethylene (HDPE) Guidance for specification option: Body. |
Shape | Rectangle |
Length | 453 mm |
Width | 902 mm |
Height | 585 mm |
Warranty description | One year |
Uniclass | |
CAWS | N13/494 Baby changing units |
Product range |
Specification data - Baby changing units
Form | Wall mounted, fold down. |
Material | Stainless steel, grade 304 (1.4301).Guidance for specification option: Encasement. High density polyethylene (HDPE).Guidance for specification option: Body. |
Finish and colour | Satin silver.Brushed silver. |
Size (nominal) | 956 x 554 mm.898 x 495 x 100 mm.Guidance for specification option: Width x height x depth, recessed. |
Projection | 5 mm. Guidance for specification option: When closed. 345 mm. Guidance for specification option: When open. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 4 |
 Revit | Revit 2015 | 4 |
 AECOsim | - | 1 |
Literature
Dolphin Baby Range
