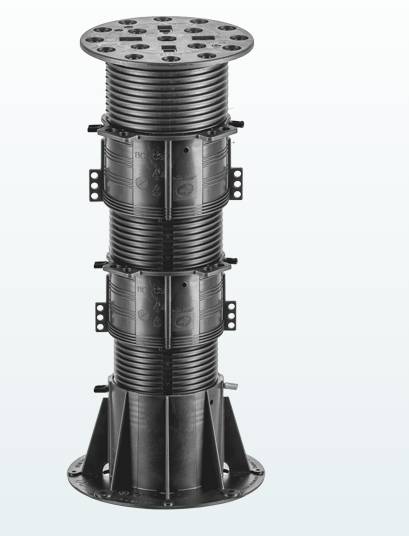

BC-FR fire rated pedestals
Verified by manufacturer 2 months ago
BC-0-FR
BC-0-FR
Class B fire-rated adjustable pedestal range, height between 11 mm and 1025 mm with 13 pedestal models, for any external flooring project where some fire-resistance is required.
Application
Suitable for any hard landscaping or external flooring project requiring a Class B fire-rating.
Description
Fire-resistant adjustable pedestal range with an adjustable height and a full suite of fire-resistant accessories. The unique spacer tab design allows ultimate flexibility of paver shapes and layout.
Features and benefits:
- Class B fire-rated: Bfl s1.
- Tested to Standard(s): EN 13501-1 and EN 45545-2.
- Quick and easy installation.
- Quick and precise slope correction up to 15%.
- Allows for complete drainage.
- UV and weather resistant with excellent acoustic and thermal properties.
- An adjustment range of 11–1025 mm.
- Superior load bearing.
- Ability to conceal services.
- Patented slope correction.
- Excellent drainage capabilities.
- 30 year project warranty.
General information
Color | Black |
Material | Polypropylene Guidance for specification option: Copolymer of polypropylene and fire-retardant material. |
Shape | Circle |
Warranty description | 30 year Guidance for specification option: Thirty-year project warranty. |
Uniclass | |
CAWS | G30/110 Metal profiled sheet decking G30/110 Metal profiled sheet decking J41/90 Precast concrete paving slabs J31/80 Precast concrete paving slabs Q37/460 Support pedestals K41/320 Pedestals J41/467 Support system for precast concrete paving slabs Q25/480 Support pedestals J31/375 Paving tiles J31/377 Support system for paving slabs or tiles J21/85 Precast concrete paving slabs J42/467 Support system for precast concrete paving slabs J21/467 Support system for precast concrete paving slabs Q55/395 Support pedestals J31/370 Precast concrete paving slabs Q55/110 Deck Q37/160 Paving and decking systems |
Product range |
Specification data - Decking and paving pedestals
Classification data | |
Pedestal type | Adjustable. |
Material | Copolymer of polypropylene and fire-retardant material. |
Adjustment | Stackable/ Fixed - 11 mm. Guidance for specification option: BC-0-FR Additional units stack to 19 mm and 27 mm. |
Accessories | Spacer tabs. Joist support. Shims. Couplers. Slope correctors. Edging products. Wind uplift. |
Execution | Installing decking and paving pedestals. |
Fire classification (EN 13501-1) | Bfl s1. |
Head | 160 mm. |
Base | 200 mm. |
Coupler | Not applicable. |
Sustainability data
Material | Polypropylene Guidance for specification option: Copolymer of polypropylene and fire-retardant material. |
Literature
BC-Fire Resistant Adjustable Pedestals Brochure
Case studies
Queen Victoria Street, London
Similar products from Buzon UK Ltd

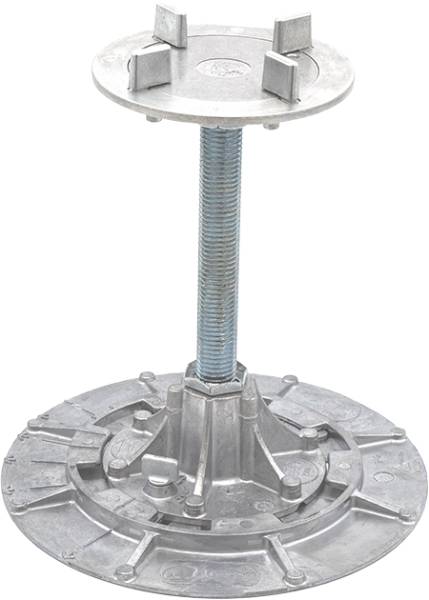

A-PED Fire-rated Aluminium Pedestals

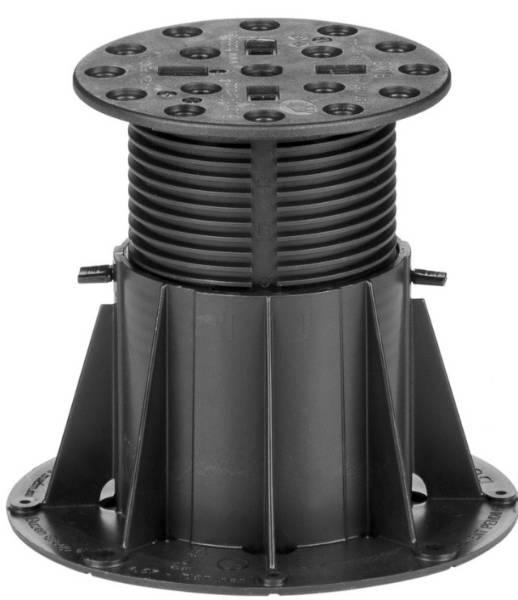

BC Adjustable Pedestal Range for Paving and Decking
