Baywall
Verified by manufacturer 4 months ago
95 mm
95 mm
Pre-stressed concrete retaining wall flat panels.
Application
Suitable for horizontal or vertical use in the following applications:
- King post retaining walls.
- Building cladding.
- Bulk storage.
- Cover sections.
- Baffle walls.
- Soil retention.
Description
Pre-stressed concrete retaining wall flat panels available in four thicknesses for livestock or cladding applications; for loadbearing applications, i.e. silage grain, earth, bulk storage materials (subject to bay sizes and storage heights); and to suit loading requirements above the parameters of certain units.
Features and benefits:

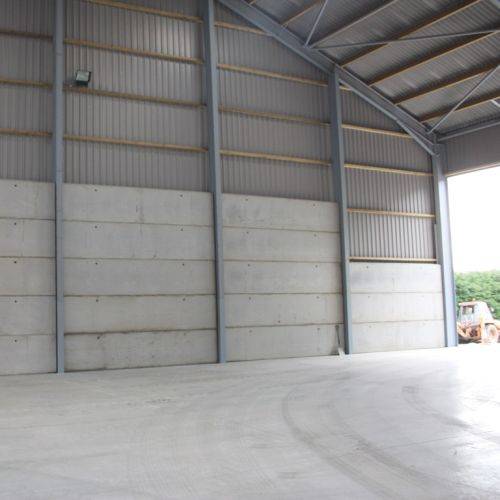

- Suitable for horizontal (between steel or concrete uprights) or vertical placement.
- Offers an economical, flexible, instant retaining wall system to suit many applications.
- The units are formed in steel moulds to ensure a dense, impermeable and durable finish.
- Supplied with tongue-and-groove fitting to facilitate quick and trouble-free installation.
- Fixing clips come as part of the supply package, with optional angles to form panel-to-panel corner securing.
- A free detailing service is available for flat pack installations – consult manufacturer for details.
- Manufactured in accordance with BS 8110-1, BS 5502-20, BS 5502-22 and BS 8500-1.
Applied with hand trowel.
General information
Color | Grey |
Material | Concrete |
Shape | Rectangle |
Length | Bespoke |
Width | 1000 mm |
Uniclass | |
CAWS | D41/310 Drystack interlocking masonry |
Product range |
Specification data - Concrete panels
Standard | To BS 8110-1, BS 5502-20, BS 5502-22, BS 8500-1. |
Configuration | Horizontal.Vertical. |
Dimensions | |
Length | Guidance for specification option: 6500 mm (maximum). Insert requirements. |
Width | 1.0 m.Guidance for specification option: Standard. Special order.Guidance for specification option: Insert requirement; contact manufacturer for information. |
Thickness | 95 mm. |
Finish | |
Exposed faces | Plain finish. |
Concealed faces | Plain finish. |
Edge details | Tongued and grooved. |
Design | As drawing. Guidance for specification option: Insert drawing reference number where applicable. |
Options | Guidance for specification option: Apertures can be cast in to suit requirements, and there is a choice of lifting system, panel finish or stainless steel fixings. Consult manufacturer for information. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.19 kg CO₂ eq/kg Self declared |
