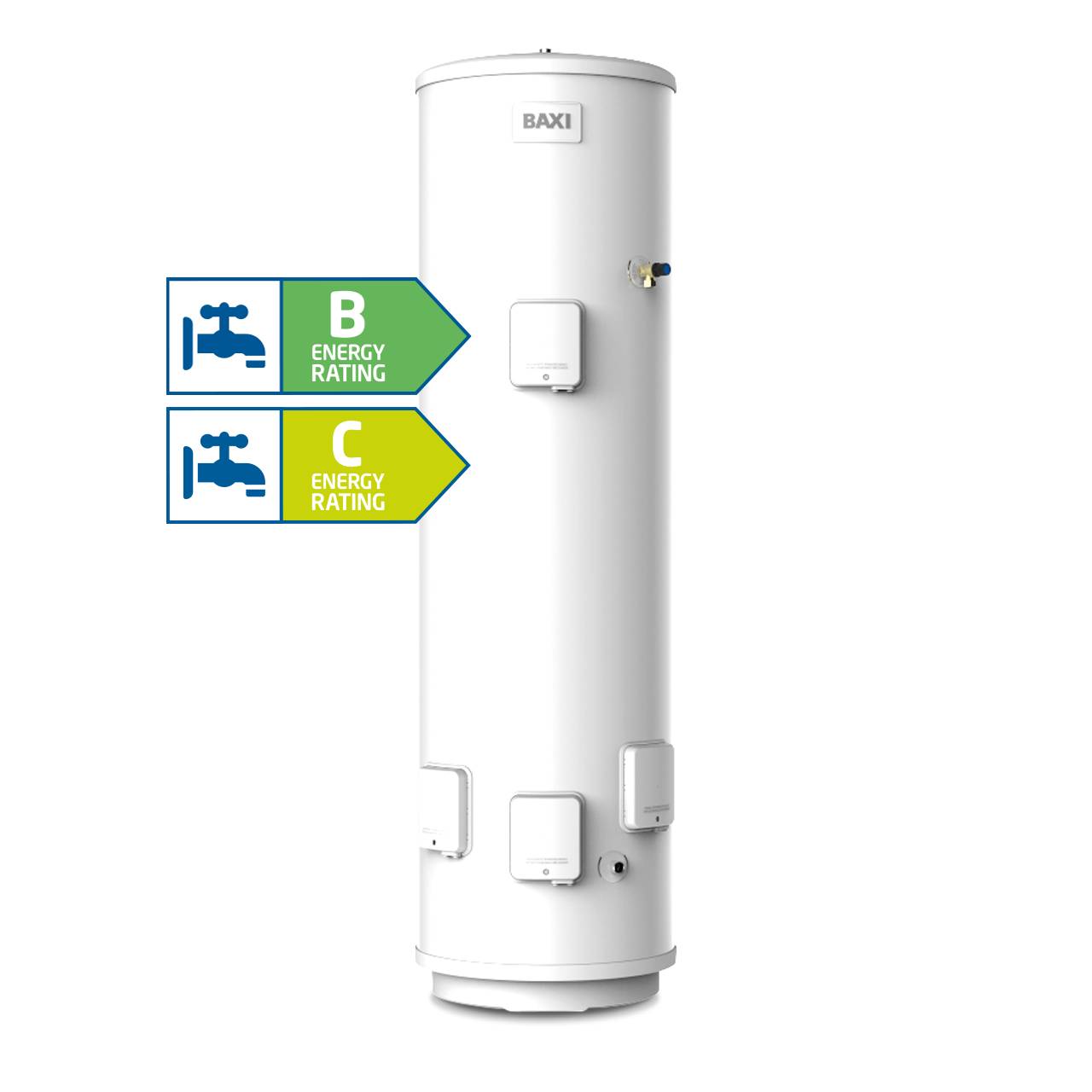

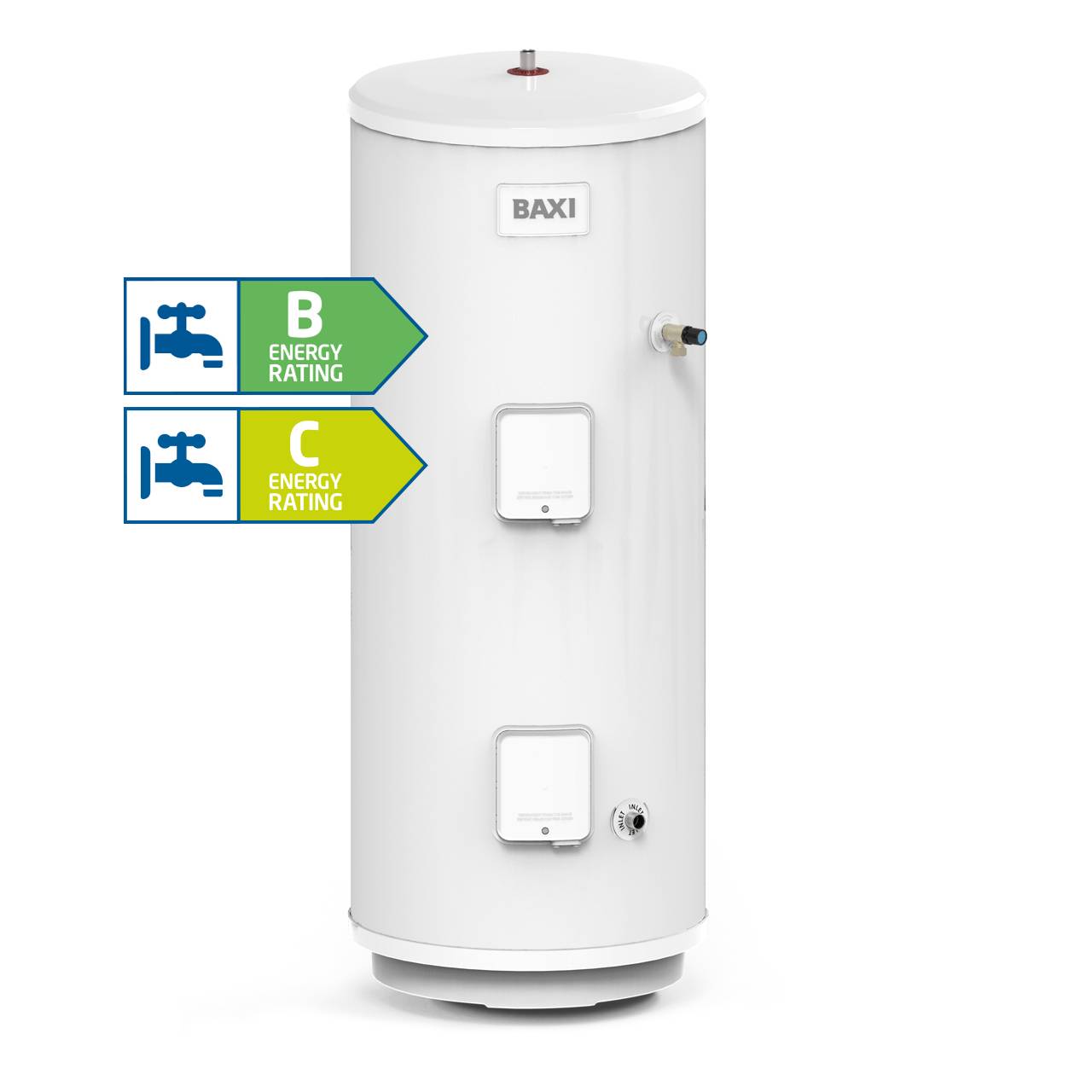

Baxi Assure Direct/ Indirect Cylinder - Unvented Hot Water Cylinder

Name: Baxi Assure Direct/ Indirect Cylinder - Unvented Hot Water Cylinder
Brand: BAXI HEATING UK LIMITED
SKU: roZ5Gtejkted6yde8L131i

Verified by manufacturer 4 days ago

Direct 70d

BAXI HEATING UK LIMITED

Direct and indirect unvented hot water cylinders.

Jump to:

0330 678 0140 Website

Application

Suitable for residential applications.

Description

The Baxi Assure Cylinder range is designed to heat, store, and deliver hot water efficiently across multiple outlets, combining versatility with ease of installation. The Baxi Assure Direct Cylinder provides a reliable solution for a wide range of homes, offering consistent performance and efficiency. For households with higher hot water demands, the Baxi Assure Indirect Cylinder delivers market-leading performance, capable of supplying up to 76 litres of hot water per minute at 3 bar pressure, while maintaining the same versatility, ease of installation, and energy efficiency.

Features and benefits:

Multiple volumes - available in volumes of 70, 125, 145, 170, 210, 250 and 300 litres.
Versatile - a model to suit all house sizes and hot water requirements.
Easy installation - the internal floating baffle expansion system saves space and makes installation easier.
High quality - built with corrosion-resistant, high-quality components.
High performance - delivers up to 76 L/min of hot water at 3 bar pressure.
Fast recovery - high performance 'coil-in-coil' heat exchanger for exceptionally fast recovery times.
Heat-retaining, CFC/HCFC-free injected foam insulation helps save energy and boost SAP ratings.

General information

Color	White
Finish	Coated
Material	Stainless steel
Shape	Circle
Length	600 mm
Width	579 mm
Height	802 mm 1102 mm 1229 mm 1384 mm 1486 mm 1738 mm 2053 mm Show more
Warranty description	Two year Ten year Guidance for specification option: Inner stainless steel tank.

Uniclass	Pr_60_50_20_42 Indirectly heated unvented hot water storage cylindersPrimary
CAWS	S90/410 Indirectly heated unvented hot water storage

SKU Code	7737164

Specification data - Indirectly heated unvented hot water storage cylinders

Classification data
Standard	To BS EN 12897.
Third-party certification	KIWA-approved.
Capacity	70 L.
Pressure	0.3 MPa (3 bar). Guidance for specification option: Maximum supply pressure to incoming mains cold water combination valve (supplied): 1.6 MPa (16 bar). Minimum recommended supply pressure and flow rate: 0.15 MPa (1.5 bar) – 20 L/min. Manufacturer guidance Maximum operating pressure.
Safety equipment	Provide energy cut-out device, temperature relief valve, pressure-reducing valve and backflow prevention in accordance with BS EN 12897.
Accessories	Immersion heater. Guidance for specification option: Immersion heater rating: 1 x 3 kW.
Integral accessories	Coil-in-coil heat exchanger.
Flow rate (maximum)	76 L/min at 3 bar. 45 L/min at 1 bar.
Cylinder	Duplex stainless steel.
Insulation	CFC/HCFC-free polyurethane foam.
Height	802 mm.
Depth	600 mm.
Width	579 mm.
Weight	23 kg (empty); 115 kg (full).
Environmental performance	ErP rating: B.
Options	Not required. Swept Tee for Direct Secondary Return - 94970033.
