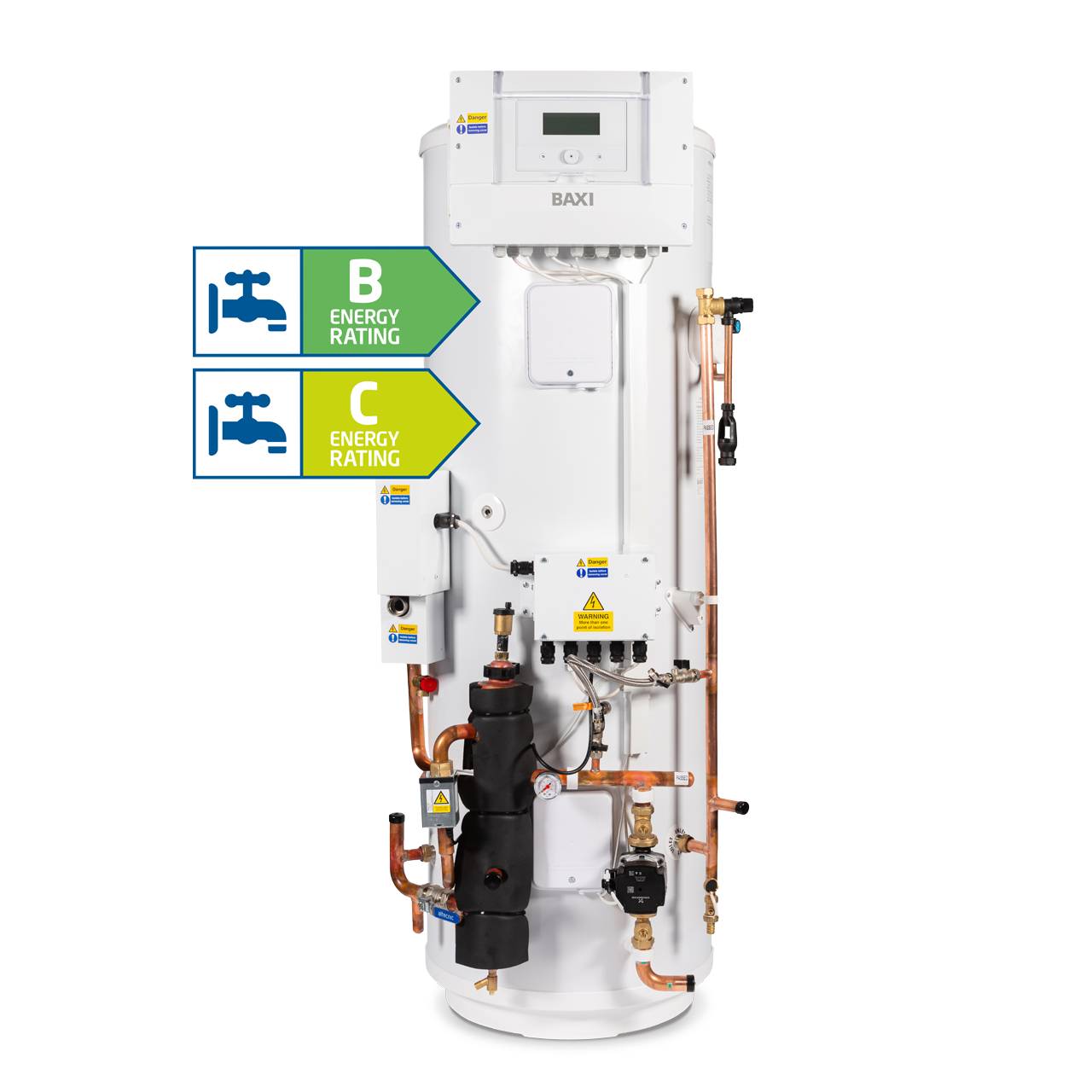

Baxi ASHP Pre-plumbed Cylinder

Verified by manufacturer 4 days ago

170 L

BAXI HEATING UK LIMITED Variant:

Pre-plumbed Cylinder designed to work with Baxi air source heat pumps (ASHP).

Jump to:
0330 678 0140 Website

Application

Suitable for use with Baxi air source heat pumps.

Description

The Baxi ASHP Pre-plumbed Cylinder has been specifically designed to work with Baxi air source heat pumps to provide optimal heating and hot water performance. Available in volumes from 170–300 litres for flexible design, the cylinder comes supplied pre-plumbed and pre-wired for a quicker and easier installation process to save time and effort.

Features and benefits:

  • Available in 170, 210, 250 or 300 litres for design flexibility
  • Pre-plumbed and pre-wired for quicker and easier installation process.
  • Manufactured from "Duplex" stainless steel for superior quality and corrosion resistance.
  • High surface area heat exchanger specifically designed to be used with heat pumps.
  • Compact footprint, enabling installation into standard airing cupboard or smaller spaces.
  • In built back-up immersion heater to support heat pumps for continuous hot water.
  • Optional second zone accessory kit available.
  • Intuitive heat pump controller enabling direct control of domestic hot water and two heating zones.
  • High flow rate, perfect for homes with multiple bathrooms
  • No need for a water storage tank, freeing up household space
  • 76 L/min at 3 bar max flow.
  • Extra large coil in coil heat exchanger for faster water heating up times and more usable hot water.
  • Built in Bluetooth connectivity for easy access to commissioning and servicing information and remote temperature control.
  • Highly efficient PU insulation for minimal heat loss, ErP Class B.
  • Two-year warranty as standard, with ten-year on the inner stainless-steel tank.

General information

Color

White

Finish

Coated

Material

Stainless steel

Polyurethane

Shape

Circle

Length

579 mm

Width

700 mm

Height

1280 mm

1516 mm

1767 mm

2082 mm

Warranty description

Two year

Ten year

Guidance for specification option:

Inner stainless-steel tank.

Uniclass

Pr_60_50_20_42 Indirectly heated unvented hot water storage cylindersPrimary

CAWS

S90/410 Indirectly heated unvented hot water storage

SKU Code

7853985

Specification data - Indirectly heated unvented hot water storage cylinders

Classification data

Standard

To BS EN 12897.

Capacity

170 L.

Pressure

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Safety equipment

Provide energy cut-out device, temperature relief valve, pressure-reducing valve and backflow prevention in accordance with BS EN 12897.

Accessories

Immersion heater.

Guidance for specification option:

Element rating: 3 kW at 240 V.

Integral accessories

Coil-in-coil heat exchanger.

Flow rate (maximum)

76 L/min.

Cylinder

Duplex stainless steel.

Insulation

60 mm CFC/HCFC-free injected expanded polyurethane (PU) foam.

Height

1280 mm.

Width

700 mm.

Diameter

579 mm.

Weight

61 kg (empty); 228 kg (full).

Environmental performance

ErP rating: B.

Ingress protection (IP) rating

IP X1b.

Global warming potential (GWP)

3.1.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Stainless steel
Polyurethane

Recyclability

-

Manufacturer guidance

The unit is largely recyclable:

  • Duplex stainless steel and metal components can be recovered.
  • PU insulation and plastic parts require specialist recycling.
  • Baxi supports responsible disposal practices

Expected Life

20 year
