Baumit PlinthSystem - External wall insulation system
Verified by manufacturer 5 months ago
External wall insulation (EWI) Plinth System XPS.
Application
External wall insulation Plinth System XPS
Description
External wall insulation (EWI) Plinth System XPS.
The plinth (and surrounding perimeter area) are some of the most highly stressed areas of a building. They must contend with rainfall, splashing, and high levels of mechanical stress.
Since the plinth area bears the brunt of the elements over time, the render should always be waterproofed, or at the very least water-resistant to provide additional protection for particularly vulnerable areas.
It is always necessary to apply a reinforcing coat.
Features and benefits:
- Reliable protection in the form of acrylic render.
- Water-repellent and resistant to mechanical stresses.
- A product that is suitable for renovation projects.

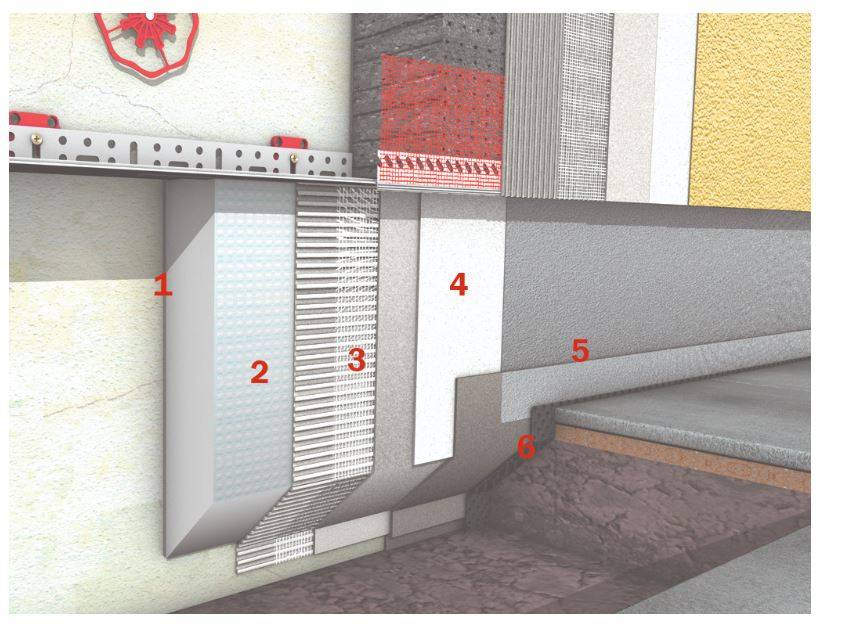

System includes:
Base: In many cases, the substrate consists of bitumen insulation.
- Adhesive: Depending on substrate use either Baumit BituFix 2K or StarContact White
- Insulant: For the plinth insulation, Baumit PlinthTherm, high density XPS board.
- Reinforcement layer: Baumit StarContact White a mineral-based adhesive component used in Baumit's EWI systems.
- Primer: Baumit PremiumPrimer. This product ensures an excellent application of the topcoat due to its filler grain properties.
- Render: Baumit MosaikTop gives a stone quartz effect to the plinth. As an acrylic render, this water-resistant render is optimal for use on plinths and a building’s splash zone.
- Sealant: Baumit DS 26 Flex as a final sealing layer. Paintable using any one of the colours and textures from the Baumit Life range.
General information
Color | White Guidance for specification option: Brilliant white and colours which can be tinted in the Life colours in rows 2 to 9. Other Black Beige Cream |
Finish | Textured |
Material | Render Glass Fibre Polystyrene |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Other |
Uniclass | |
CAWS | M21/210 External wall insulation system M21/20 External wall insulation system . . . . . . |
Specification data - External wall insulation systems
Preparation | Baumit UniPrimer.Guidance for specification option: Ready-to-use, multi-purpose primer to regulate absorption and improve adhesion for all Baumit render and paint finishes. Suitable for use as part of all Baumit EWI Systems. Compliant with ETAG 004 European System Standards for EWI systems with rendering. For external use. Baumit PremiumPrimer.Guidance for specification option: Ready-to-use, waterborne quartz-filled primer for all synthetic and mineral decorative finishes. Use to prepare a surface prior to applying render to regulate absorption and for better application. The new filler grain ensures excellent application and texture of the topcoat. Suitable for use as part of all Baumit EWI Systems. Compliant with ETAG 004 European System Standards for EWI systems with rendering. |
Insulation | |
Material | PlinthTherm XPS.Guidance for specification option: Non combustible EWI mineral wool facade insulation board. Available in different product variants 6-20 cm. Consult manufacturer for details and insert requirements. |
Adhesive | BituFix 2K.Guidance for specification option: Two-component, polystyrene-filled, solvent-free, cold-processable, bitumen-based, rubber-coated thick coating for bonding Baumit Plinth Insulation board XPS TOP onto bituminous sealant background. |
Additional mechanical fixings | Mechanical Fixing.Guidance for specification option: Baumit STR U is designed for mechanical fastening of polystyrene and mineral wool insulation boards. Suitable for concrete, solid brick, hollow and perforated brick, light concrete, porous concrete. Part of Baumit EWI systems. |
Render carrier or reinforcement | |
Material | StarTex Fine Mesh.Guidance for specification option: Fine, non-slip, alkali-resistant textile glass fabric for embedding in adhesive and leveling compounds, system-tested, tear strength ≥ 2.0 kN / 5 cm. Weight: approx. 160 g / m². |
Fixings | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Render | |
Application | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Material | Baumit PuraTop.Guidance for specification option: Weather resistant topcoat render for intense and brilliant colours. Ensure long-lasting colour stability through the excellent pigment binder. Featuring Baumit Cool Pigments technology for darker coloured facades. Available in the full range of Baumit Life colours. Baumit StarContact White.Guidance for specification option: Natural, white, flexible, mineral-based, dry adhesive and basecoat render for Baumit EWI systems. Also suitable as a bonding mortar onto concrete. Suitable for use as part of Baumit StarSystem, StarSystem Mineral, StarSystem Nature and Plinth System. Baumit StarContact.Guidance for specification option: Mineral-based, dry adhesive and basecoat render for Baumit external wall insulation systems. Baumit StarTop.Guidance for specification option: Ready to use, topcoat render (thin coat finish render) for external use to create a stippled texture. Tested to EN 15824 standards and in a system to ETAG 004 standards. GranoporTop.Guidance for specification option: Ready to use, synthetic resin render for exterior use. Water vapour permeable and very resistant to water. Acrylic based decorative finish with scratched or dragged grain texture. Suitable for hand or machine application. |
Decorative finish | Baumit SilikonTop.Guidance for specification option: Ready-to-use, silicone resin render with scratched or dragged grain texture. Highly durable and suitable for almost all requirements. Water vapour permeable, extremely water repellent, dirt-resistant and versatile. Available in the largest range of colours. Baumit SilikonTop Fine.Guidance for specification option: Ready-to-use silicone resin render, for achieving a fine, smooth texture. Highly water resistant and water vapour permeable. For external use. MosaikTop.Guidance for specification option: Baumit MosaikTop is a thin-layer quartz render solution that is perfect for use in the plinth area due to its hardwearing, waterproof properties. As a quartz resin plaster, MosaikTop is also versatile enough to be applied over a wider area. Providing strength and resilience as an entire facade render — not just on the plinth — MosaikTop is an extremely versatile product. |
Colour | Brilliant white.Guidance for specification option: Brilliant white and colours which can be tinted in the Life colours in rows 2 to 9. Consult manufacturer for details and insert requirements. |
Protective coating | Baumit SpeedTop.Guidance for specification option: Ready to use additive for SilikonTop and GranoporTop. Provides accelerated setting and enhanced durability on the façade in high humidity and low temperatures, as well as in fog. Can be added in temperatures of >+1°C and <15°C and with relative humidity of <95%. |
System accessories | DS26 Flex (Waterproof Sealer).Guidance for specification option: Flexible universal sealant for use as a sealing layer in the base area. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Austria |
Country of product manufacture | Austria |
Material | Render Glass Fibre Polystyrene |
Recyclability | Non-recyclable |
Literature

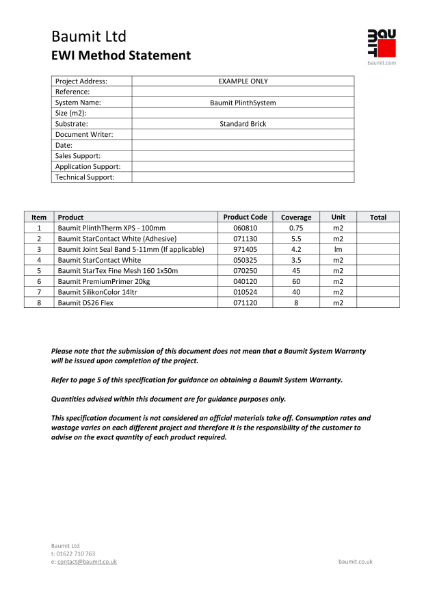

PlinthSystem - Method Statement
