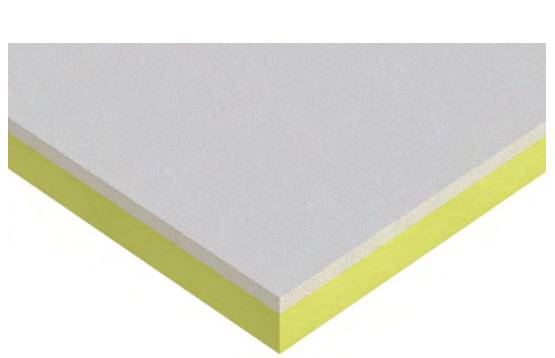

BauderXPS Upstand Insulation

Verified by manufacturer 12 hours ago

Bauder Ltd

Rigid extruded polystyrene (XPS) upstand insulation board.

Jump to:
+44 (0)1473 257671 Website

Application

Provides an impact and weather resistant thermal insulation for use on low level inverted roof upstands including to, and across compartment walls. This product is specifically for use at upstands where BauderXPS (300) and BauderJFRI Inverted Insulation is used on the main flat area.

Description

Rigid extruded polystyrene (XPS) consisting of 50 mm laminated XPS insulation and a 6mm weather resistant fibre-cement facing. The insulation facing provides impact resistance as well as UV protection to the extruded polystyrene core.

General information

Color

Green

Material

High density extruded polystyrene (XPS)

Shape

Rectangle

Length

1200 mm

Width

600 mm

Height

56 mm

Guidance for specification option:

50 mm insulation + 6 mm fibre-cement layer.

Warranty description

-

Manufacturer guidance

A range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. This product should only be used as part of a full Bauder Waterproofing System.

Uniclass

Pr_25_71_63_29 Extruded polystyrene (XPS) boardsPrimary

CAWS

J42/415 Extruded polystyrene (XPS) insulation

J41/26 Thermal insulation

J42/27 Thermal insulation

J41/415 Extruded polystyrene (XPS) insulation

J31/332 Extruded polystyrene (XPS) insulation

J31/26 Thermal insulation

Specification data - Extruded polystyrene (XPS) boards

Classification data

Fire performance

Reaction to fire to BS EN 13501-1, Euroclass F.

Compressive strength (minimum) at 10% compression

300 kPa.

Thermal conductivity (maximum)

0.034 W/mK.

Water vapour permeability

To BS EN 12086: ≥400 MNs/gm.

Thickness

50 mm.

Guidance for specification option:

50 mm insulation + 6 mm fibre-cement layer.

Face size (length x width)

1250 x 600 mm.

Facing

6 mm weather resistant fibre-cement facing.

Edges

Square.

Sustainability data

Country of product manufacture

United Kingdom

Material

High density extruded polystyrene (XPS)
Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Self-declared

Stage
Normalised unit (kg CO₂ eq/kg)
Declared unit (kg CO₂ eq/kg)
Stage:A1–A3 ('Production stage')
Normalised unit : 5 (kg CO₂ eq/kg)
Declared unit : 5

Manufacturer guidance

Please refer to EPD on the Bauder website.

Value guidance: A1-A3

Maximum.

Recyclability

100%

Literature

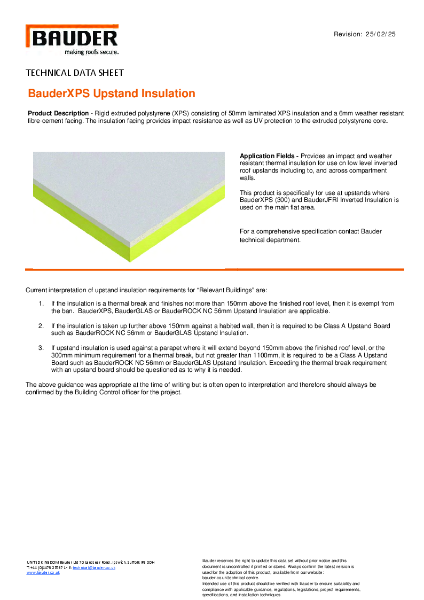

Bauder XPS Upstand Board  - Technical Data Sheet

Bauder XPS Upstand Board - Technical Data Sheet

Similar products from Bauder Ltd

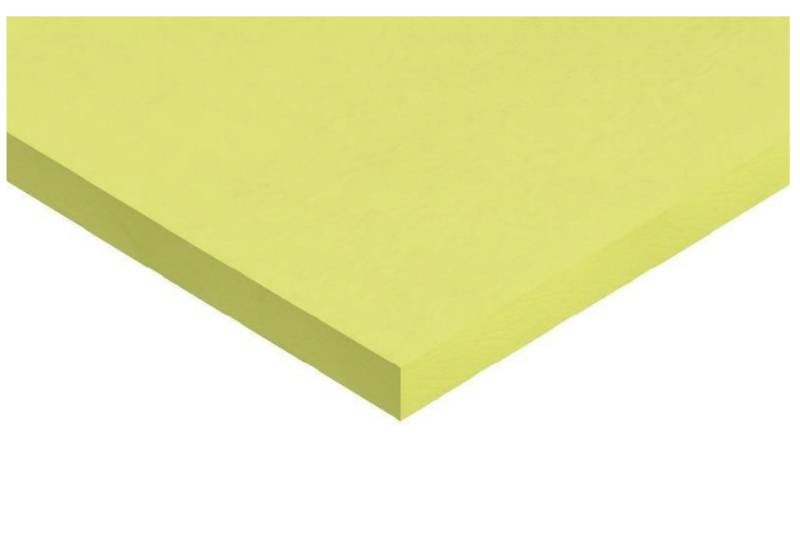

Bauder XPS (300) Inverted Insulation
