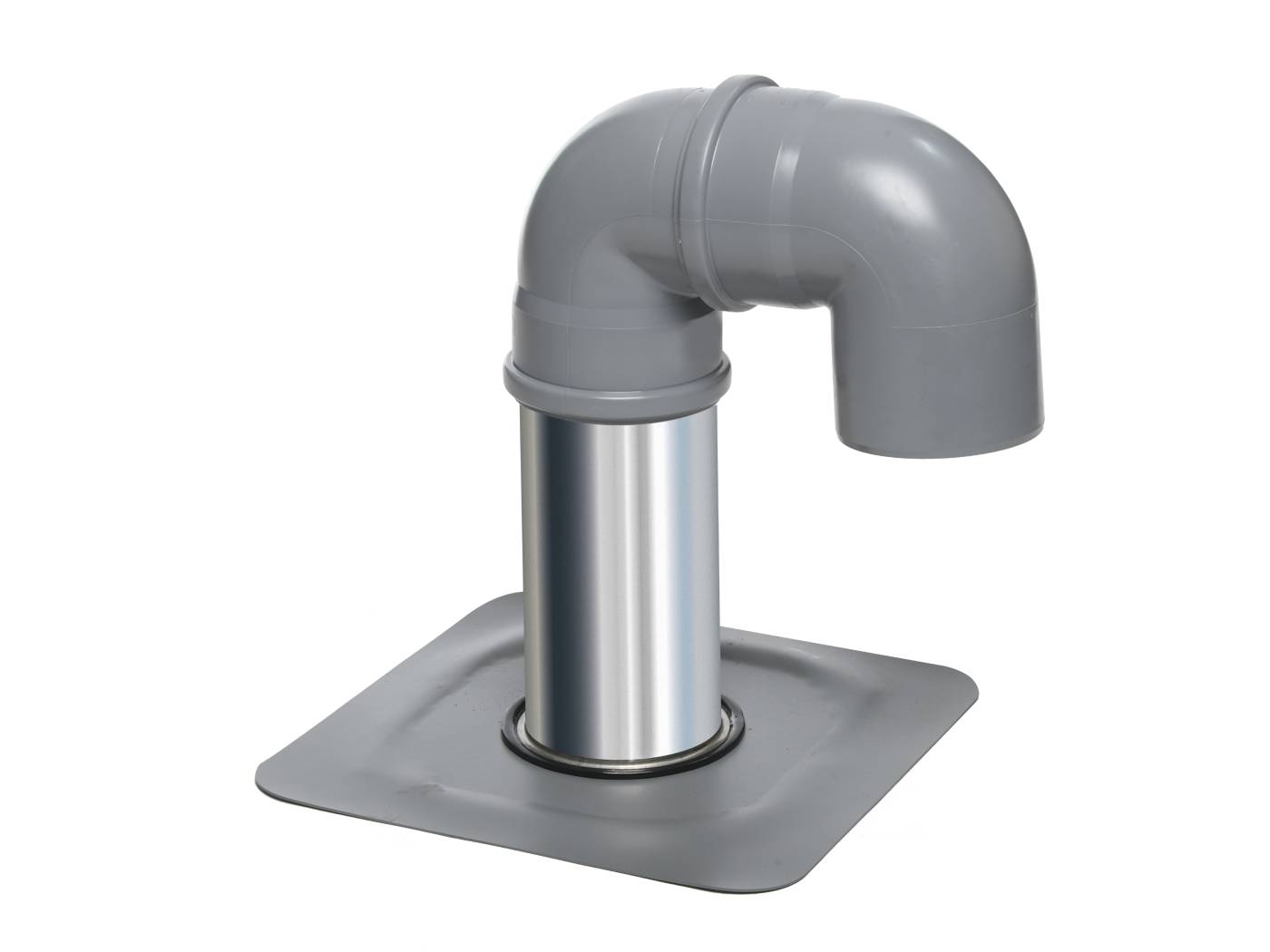

BauderPVC Cable Duct
Verified by manufacturer 3 days ago
Weatherproof sleeve for cables and pipes.
Application
Compatible with Bauder Thermofol waterproofing systems.
Description
Designed to provide a weatherproof sleeve for cables or pipes which penetrate through a flat roof. Supplied with an integral PVC membrane flange for easy installation.
The two elbows direct cables and pipes either horizontally or vertically and shelter the exit point from rain or water ingress.
General information
Color | Grey Silver |
Material | Stainless steel Guidance for specification option: Base plate and pipe PVC Guidance for specification option: Membrane flange and rigid PVC elbows |
Shape | Other |
Length | 230 mm Guidance for specification option: Base plate dimension. |
Width | 230 mm Guidance for specification option: Base plate dimension. |
Height | 380 mm |
Warranty description | Manufacturer guidanceOnly to be use as part of a full Bauder PVC Single Ply Waterproofing System. Please see Waterproofing System for further information. |
Uniclass | |
CAWS | P30/30 Pipeducts P30/320 Pipeducts |
Specification data - Pipe sleeves
Classification data | |
Material | Stainless-steel pipe, PVC membrane flange and rigid PVC elbows. |
Form | PVC = GB14109750. |
Size: | Baseplate: 230 x 230 mm. Membrane flange size: 500 x 500 mm. |
Diameter | Duct diameter: 110 mm. |
Height: | Duct height: 380 mm. |
Sustainability data
Material | Stainless steel Guidance for specification option: Base plate and pipe PVC Guidance for specification option: Membrane flange and rigid PVC elbows |
Literature

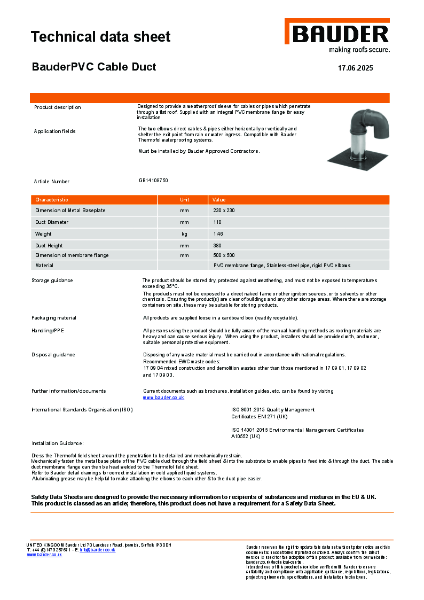

Bauder PVC Cable Duct - Technical Data Sheet
