BauderGREEN PE 02 separation and slip layer
Verified by manufacturer 4 months ago
Separation layer or slip layer
Application
Fitted directly on to the completed waterproofing to separate the landscaping from the waterproofing. Used in a two layer installation on intensive green roof landscaping
Description
Separation and slip layer (on roofs below 5° pitch).
General information
Color | Green |
Finish | Smooth |
Material | Polyethylene |
Shape | Rectangle |
Length | 50000 mm |
Width | 4000 mm |
Height | 0.2 mm Guidance for specification option: Thickness. |
Warranty description | Manufacturer guidanceA comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. |
Uniclass | |
CAWS | Q37/325 Slip layer Q37/335 Separation layer |
Specification data - Plastics sheets
Classification data | |
Material | Polyethylene. |
Purpose | Separation layer. |
Physical properties | |
Weight (minimum) | 0.19 kg/m². |
Dimensions | |
Thickness (minimum) | 0.2 mm. |
Width (minimum) | 4 m. |
Roll length (minimum) | 50 m. |
Sustainability data
Material | Polyethylene |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Guidance for specification option: Polyethylene foil manufactured from recycled granules. |
Literature
Literature type
Green Roof Systems - Bauder Brochure

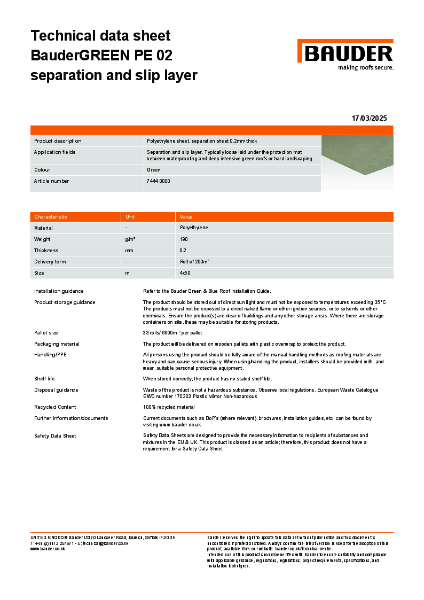

BauderGREEN PE 02 separation and slip layer - Technical Data Sheet
