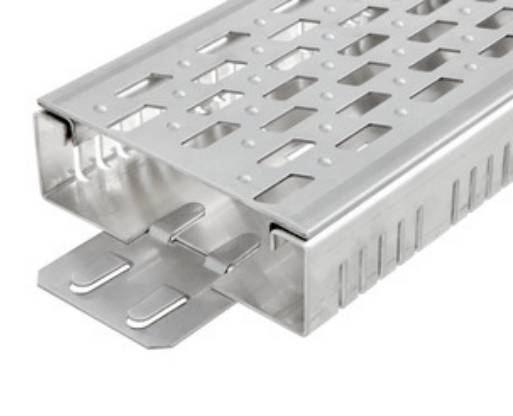

Name: BauderGREEN ER MR 150/60 - Linear Steel Box Drainage Channel
Brand: Bauder Ltd
SKU: 2ZnHNXPQ64xBBqnnG5Pe3Y

Color

Silver

Finish

Galvanized

Material

Steel

Shape

Rectangle

Length

1000 mm

Width

150 mm

Height

60 mm

Warranty description

Manufacturer guidance

A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass

Pr_65_52_24_24 Drainage channels with gratingsPrimary

CAWS

Q10/170 Linear slot drainage channel systems

Q10/30 Linear slot drainage channel system

Q10/35 Drainage channel systems with gratings

Q10/180 Drainage channel systems with gratings

Classification data

Properties

Material

Steel.

Gratings

Material

Steel.

Form

Mesh grid.

Colour

Galvanized.

Load class (minimum)

Manufacturer's standard.

Channel unit dimensions

Width (nominal)

150 mm.

Depth (nominal)

60 mm.

Length

1000 mm.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

Varies.

Guidance for specification option:

Consult manufacturer for details.

Integral accessories

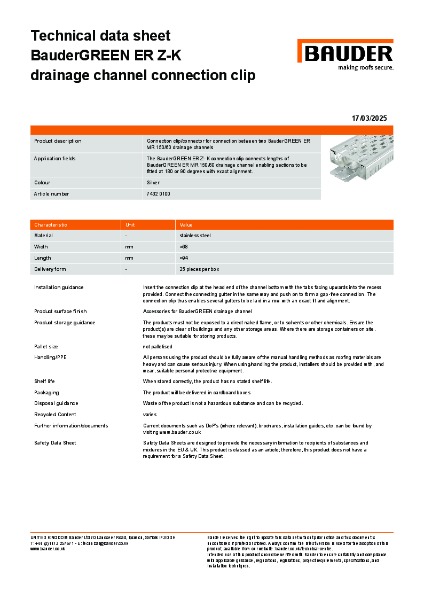

BauderGREEN ER Z-K drainage channel connection clip (74320100).

Guidance for specification option:

Stainless steel connection clip/ connector for connection between two BauderGREEN ER MR 150/60 drainage channels.
Enables lengths of the drainage channel to be fitted at 180° or 90° with exact alignment.
68 x 94 mm (width x length).

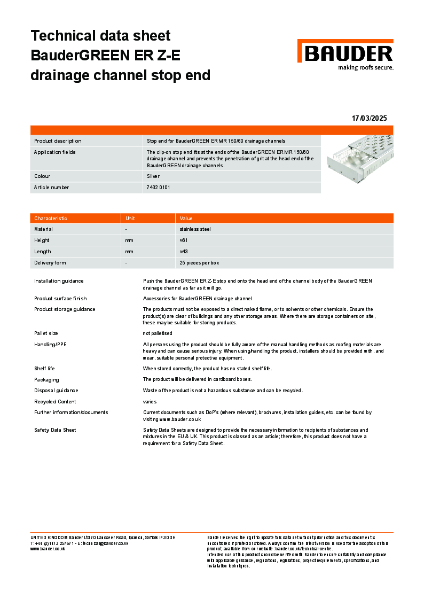

BauderGREEN ER Z-K drainage channel stop end (74320101).

Guidance for specification option:

Stainless steel stop end for BauderGREEN ER MR 150/60 drainage channels.
The clip-on stop end fits at the end of the drainage channel and prevents the penetration of grit at the head end of the channel.
61 x 43 mm (width x length).

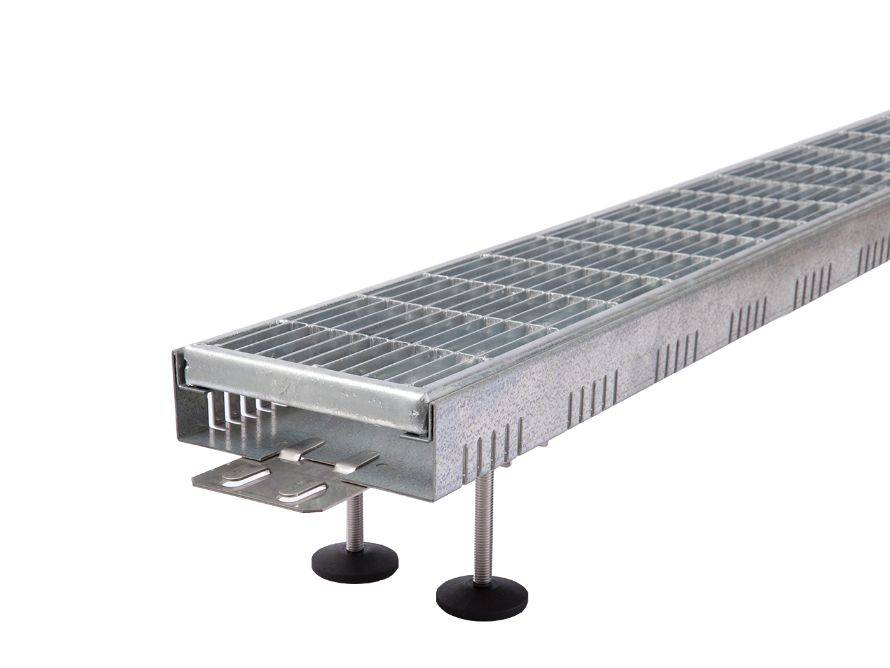

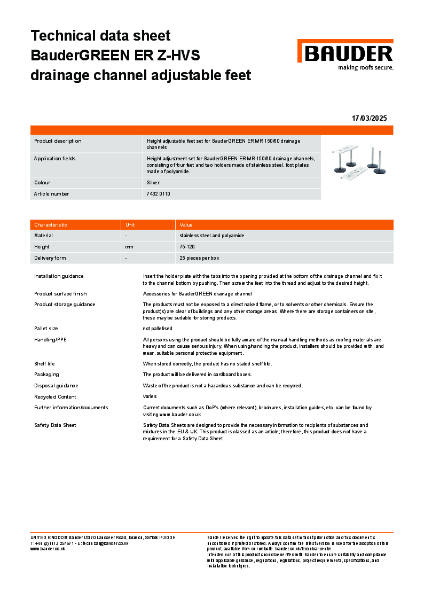

BauderGREEN ER Z-K drainage channel adjustable feet (74320110).

Guidance for specification option:

Height-adjustable feet for BauderGREEN ER MR 150/60 drainage channels.
Consists of four feet and two holders made of stainless steel; foot plates made of polyamide.
75–120 mm height range.

Not required.

Weight

Channel: 7.3 kg per 1 m unit.
