BauderGREEN DE NF 10 drainage and protection mat
Verified by manufacturer 3 days ago
Single layer multi-directional drainage and protection layer.
Application
Filtration and drainage layer used under hard and soft landscaping where space is limited.
Description
Single layer multi-directional drainage and protection layer.
Features and benefits:
- 10 mm (height of cells).
- Loose laid.
- Filtration and drainage layer.
- Used under hard and soft landscaping where space is limited.
General information
Color | White Guidance for specification option: Fleece. Black Guidance for specification option: Drainage layer. |
Finish | Flocked Guidance for specification option: Fleece. |
Material | Polypropylene Polyethylene Guidance for specification option: PET. |
Shape | Rectangle Guidance for specification option: Roll. |
Length | 12000 mm |
Width | 1250 mm |
Height | 10 mm Guidance for specification option: Cell height. |
Warranty description | Manufacturer guidanceA range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. |
Uniclass | |
CAWS | Q37/360 Filter membrane Q37/350 Drainage layer Q2/180 Green roof |
SKU Code | 74680015 |
Specification data - Polypropylene (PP) studded sheets
Classification data | |
Performance characteristics | |
Flow rate | To EN 12958: 0.70 L/s/m at 2% roof slope, 30 kPa load. 0.68 L/s/m at 2% roof slope, 50 kPa load. 0.60 L/s/m at 2% roof slope, 200 kPa load. 0.80 L/s/m at 3% roof slope, 30 kPa load. 0.78 L/s/m at 3% roof slope, 50 kPa load. 0.69 L/s/m at 3% roof slope, 200 kPa load. |
UV resistance | Manufacturer's standard. |
Fire performance | Manufacturer's standard. |
Environmental performance characteristics | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Filter layer | Polypropylene fleece. |
Stud height | 10 mm. |
Sheet thickness | Manufacturer's standard. |
Weight (minimum) | 0.868 kg/m². Guidance for specification option: Drainage material: 0.746 kg/m². Fleece weight: 0.125 kg/m². |
Colour | White fleece; black drainage layer. |
Roll size | 12 x 1.25 m (25 m²). |
Compressive strength | To EN ISO 25619-2, 400 kPa. |
Sustainability data
Material | Polypropylene Polyethylene Guidance for specification option: PET. |
Literature

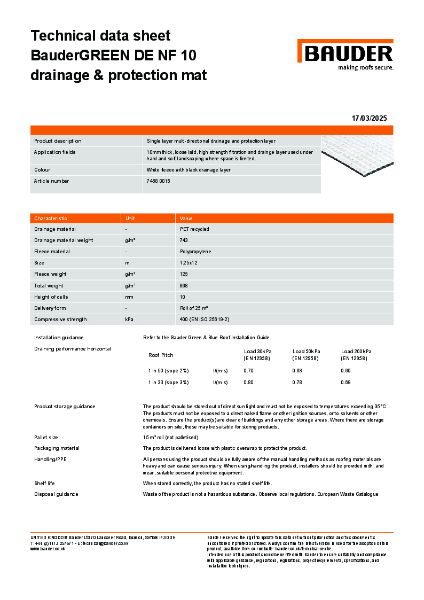

BauderGREEN DE NF 10 - Technical Data Sheet
