BauderGLAS Tapered Insulation
Verified by manufacturer 1 day ago
BauderGLAS Tapered Ready T3+
BauderGLAS Tapered Ready T3+
EPD
Certificate type

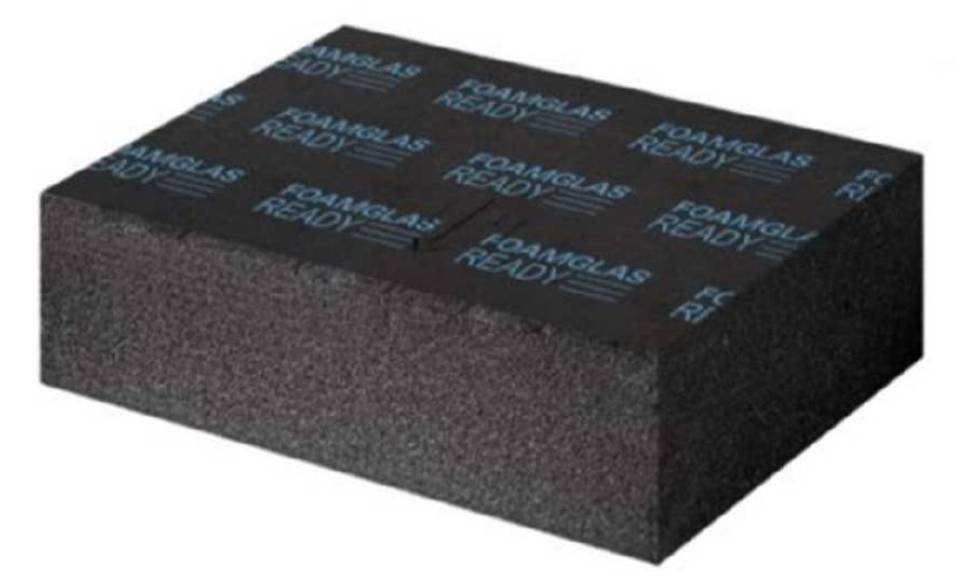

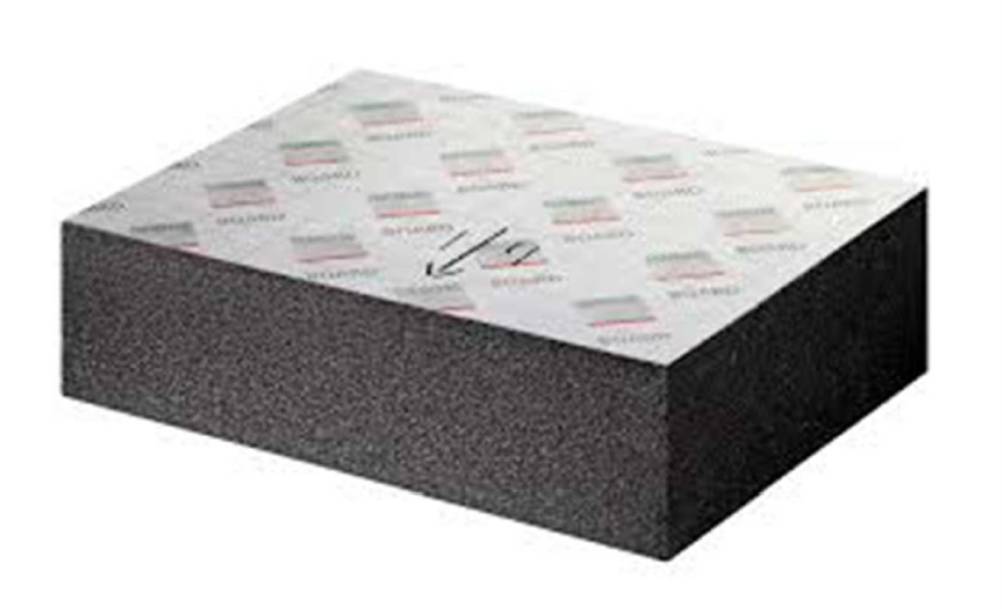

A range of tapered cellular glass insulation boards.
Application
- BauderGLAS Tapered Ready T3+ - to be used as a top layer for tapered insulation on a concrete, plywood, metal or timber deck when using a torch-on membrane as the underlayer.
- BauderGLAS Tapered Roof Block G1 T3+- to be used as a top layer for tapered insulation on a concrete, plywood, timber or metal deck when using a self-adhesive membrane as the underlayer.
- Where base layer is required, use BauderGLAS Slab T3+ on concrete, plywood or timber decks and BauderGLAS Roof Board G2 T3+ for profiled metal decks.
Description
A range of tapered cellular glass insulation boards. Available in standard falls of 1:80, 1:60 and 1:40. Other falls are available upon request.
BauderGLAS is manufactured from specially graded recycled glass (≥ 60%) and natural raw materials which are available in abundant supply. The insulation is totally inorganic and contains no ozone depleting propellants, flame resistant additives or binders. Without VOC or other volatile substances.
The reaction to fire performance is Class E due to the 0.5mm top facing layer, the cellular glass core is Class A1.
Only to be used as part of a full Bauder Waterproofing System.
General information
Color | Black |
Material | Cellular glass |
Shape | Rectangle |
Length | 600 mm |
Width | 450 mm |
Warranty description | Manufacturer guidanceA comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. |
Uniclass | |
CAWS | J42/27 Thermal insulation J42/430 Warm deck roof insulation J41/430 Warm deck roof insulation J31/26 Thermal insulation J31/337 Cellular glass insulation J41/26 Thermal insulation |
Specification data - Cellular glass insulation boards
Standard | To EN 13167. |
Reaction to fire | Core material complying with Euroclass A1. With facings Euroclass E. |
Third-party product certification | Environmental Product Declaration (EPD).Guidance for specification option: EPD-PCE-20150042-IBA1-DE. |
Thermal conductivity (maximum) | 0.036 W/m·K. |
Compressive strength (minimum) | ≥ 500 kPa. |
Density | 100 kg/m³. |
Recycled content | ≥ 60%. |
Facing | Bitumen. |
Edges | Square. |
BendingStrength | ≥ 450 kPa. |
TensileStrength | ≥ 150 kPa. |
Width | 450 mm. |
Length | 600 mm. |
Standard Falls | 1:80. 1:60. 1:40. Other. Guidance for specification option: Other falls are available upon request. Consult manufacturer and insert requirements. |
Sustainability data
Country of product manufacture | Belgium |
Material | Cellular glass |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.45 kg CO₂ eq/kg Manufacturer guidancePlease refer to EPD. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Guidance for specification option: Specially graded recycled glass (≥ 60%). |
Third party certifications
Third party certifications
EPD

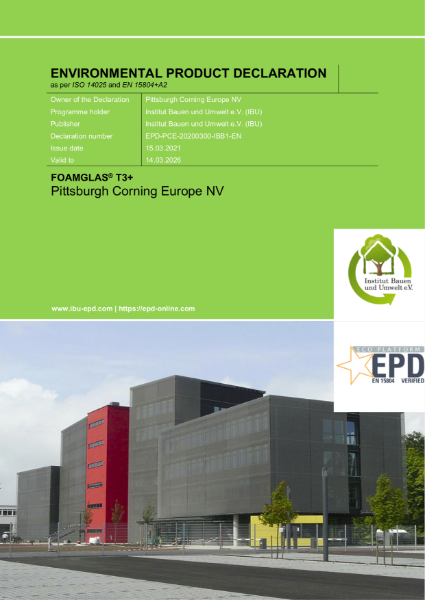

Environmental Product Declaration - FOAMGLAS - EPD-PCE-20200300-IBB1-EN
