BauderGLAS Angle Fillets - Triangular Profiled Insulation Section

Name: BauderGLAS Angle Fillets - Triangular Profiled Insulation Section
Brand: Bauder Ltd
SKU: dcCMCjQ2pPe4iQ1eqXdcLZ

Verified by manufacturer 1 day ago

Bauder Ltd

Product certifications:

EPD
Certificate type

BauderGLAS Angle Fillet is an un-faced triangular profiled section manufactured from specially graded recycled glass (≥ 60%) and natural raw materials which are available in abundant supply.

Jump to:

Request BIM

+44 (0)1473 257671 Website

Application

For use in conjunction with BauderGLAS Insulation (specified separately).
The product is designed to fully support the waterproof membrane at 90° abutments, providing a smooth transition between the horizontal and vertical interface.

Description

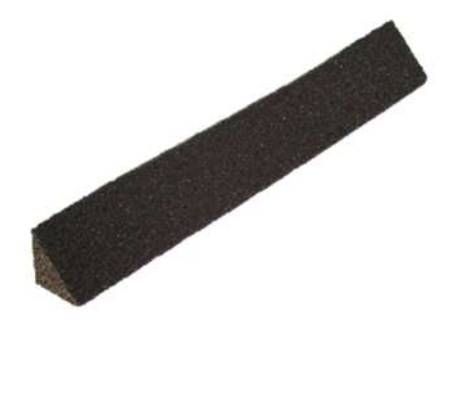

BauderGLAS Angle Fillet is an un-faced triangular profiled section.

Manufactured from specially graded recycled glass (≥ 60%) and natural raw materials which are available in abundant supply (sand, dolomite, lime...).
The insulation is totally inorganic, contains no ozone-depleting propellants, flame-resistant additives or binders. Without VOC or other volatile substances.
The core material is non-combustible.

General information

Color	Black
Finish	Unfaced
Material	Glass Other
Shape	Triangle
Length	450 mm Guidance for specification option: ± 5mm
Width	50 mm Guidance for specification option: Maximum depth (when installed).
Height	50 mm Guidance for specification option: Maximum depth (when installed).
Warranty description	- Manufacturer guidance A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass	Pr_35_90_07_04 Angle filletsPrimary
CAWS	J41/26 Thermal insulation J42/27 Thermal insulation J41/335 Angle fillets J31/26 Thermal insulation

SKU Code	GB30259010

Specification data - Angle fillets

Classification data
Material	Specially graded recycled glass (≥60%) and natural raw materials which are available in abundant supply. Guidance for specification option: Raw materials include sand, dolomite and lime; consult manufacturer for further details.
Size (minimum)	50 x 50 mm, triangular in section. Guidance for specification option: Length per section: 450 mm. Manufacturer guidance To EN 822.
Reaction to fire	To EN 13501-1, core material complying with Euroclass A1, non-combustible, no toxic fumes.
Density	To E N 1602, 115 kg/m³.
Thermal Conductivity:	To EN ISO 10456, λᴅ ≤ 0.036 W/m·K.
Bending strength	To EN 12089, BS ≥450 kPa.
Tensile strength	To EN 1607, TR ≥150 kPa.
Service temperature	From -265°C to +430°C.
Water vapour resistance	To EN ISO 14056, µ = ∞.
Technical characteristics, other	Hygroscopicity: zero. Capillarity: zero. Thermal expansion coefficient to EN 13471: 9 x 10-6 K-1.
Melting point	cf DIN 4102-17: >1000°C.
Specific heat	To EN ISO 10456, 1000 J/kg·K.
