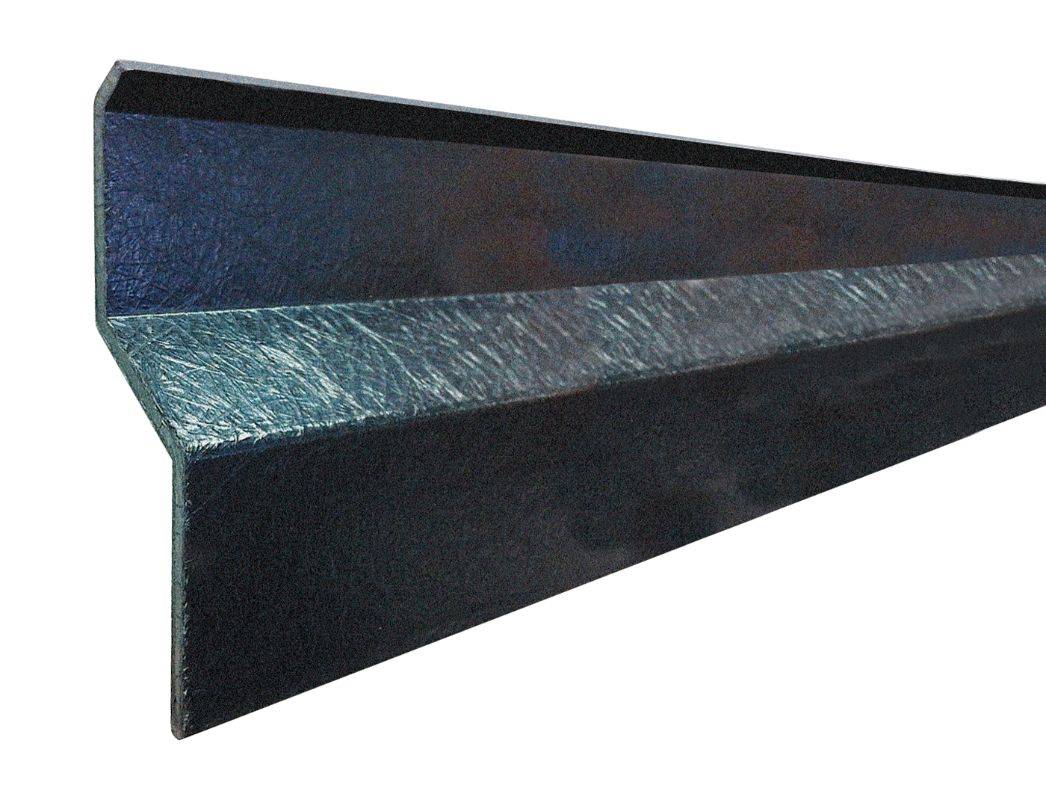

Bauder GRP Termination Bar - Termination Bar
Verified by manufacturer 22 hours ago
GRP termination bar used for terminating waterproofing membranes at wall abutments where specified.
Application
For use terminating waterproofing membranes at wall abutments where specified.
Description
GRP termination bar used for terminating waterproofing membranes at wall abutments where specified.
Offers an alternative to a lead counterflashing for use at upstand details to give protection to the top edge of the waterproofing.
It should be restricted to use on upstands where a chase cannot be cut into the wall.
Also available in aluminium (specified separately).
General information
Color | Black |
Finish | Smooth |
Material | Glass Reinforced Plastic (GRP) |
Shape | Rectangle Other |
Length | 2500 mm |
Width | 82 mm Guidance for specification option: Depth. |
Height | 2.5 mm Guidance for specification option: Thickness of termination bar (GRP) Manufacturer guidanceThickness |
Warranty description | Manufacturer guidanceA comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. |
Uniclass | |
CAWS | J41/345 Perimeter trims |
SKU Code | GB60012210 |
Specification data - Roof membrane perimeter trims
Classification data | |
Description | Termination bars. |
Fire performance | |
Fire resistance | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Reaction to fire | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Material | GRP. |

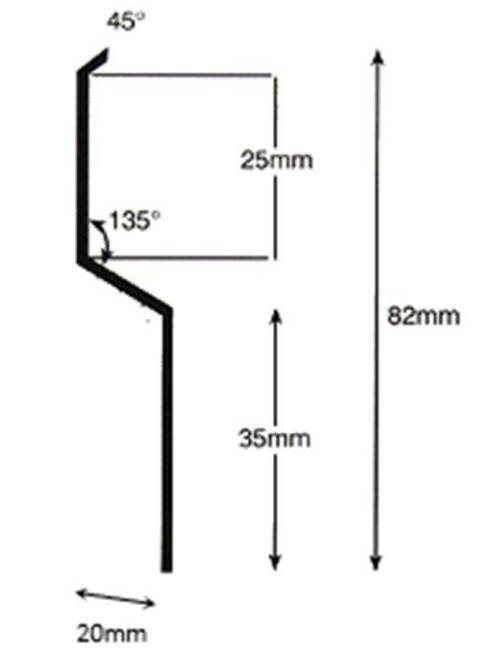

Size | 2.5 mm thick, 82 mm width/ depth. |
Colour | Black. |
Length (maximum) | 2.5 m. |
Fixing | Guidance for specification option: Bauder termination bar, fixed above (and not through) the completed upstand waterproofing where specified.
|
Sustainability data
Material | Glass Reinforced Plastic (GRP) |
Literature

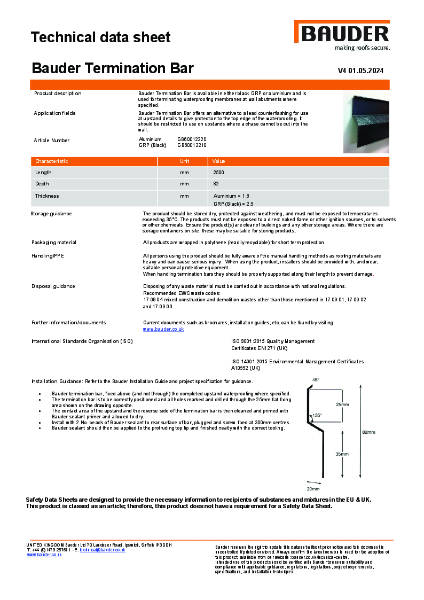

Bauder Termination Bar - Technical Data Sheet
