BASWA Cool

Third party certifications:
  • QA Certificate

    Certificate type

BASWA acoustic AG

Active, seamless thermal-acoustic lining system with double layer granular marble surface.

Jump to:
+44 (0)777 334 2181 www.baswa.com
Application

  • Horizontal, sloped or vertical surfaces.
  • Seamless, even surfaces up to areas of 500 m² on concrete and 100 m² on plasterboard, suspended systems.
  • Simple vaulted surfaces.
  • Suitable for use in commercial and industrial buildings and most public areas.

Description

Thermal-acoustic surfacing system which reduces the reverberation time in ceilings and wall surfaces and controls the temperature of a room. It uses an embedded capillary pipe system to provide thermal comfort. It can be installed directly in concrete ceilings or lowered systems.

Large space water transporting capillary pipe mats are installed close to the surface. While they require only a minimum amount of space and energy, they provide draft-free and noiseless room temperature control paired with outstanding sound absorption. Thanks to the small amount of acoustic rendering coverings and the surface proximate installation, as well as the good heat conductivity of the mineral-based acoustic stucco, the system delivers outstanding heating and cooling efficiency.

Features and benefits:

  • Excellent broadband sound absorption.
  • Cooling capacity at Δt = 8 K: 79 W/m² (to BS EN 14240).
  • Heating capacity at Δt = 15 K: 117 W/m² (to BS EN 14037-2).
  • Minimal installation height.
  • Smooth, seamless surface.
  • Comprehensive colour selection (BASWA Colours, NCS, RAL, etc.)
  • Full airflow management and airtight system to prevent localised accumulation of airborne particles.
  • Full maintenance, cleaning and repair solutions available (BASWA Clean, BASWA Blonde, BASWA Fresh etc.)
  • Installation only by BASWA certified operatives.
  • Building material class B-s1, d0 according to BS EN 13501-1.
  • CE certified/ ETA-No:16/ 0144 (CSTB).

Applications:

  • Horizontal, sloped or vertical surfaces.
  • Seamless, even surfaces up to areas of 500 m² on concrete and 100 m² on plasterboard, suspended systems.
  • Simple vaulted surfaces.
  • Suitable for use in commercial and industrial buildings and most public areas.

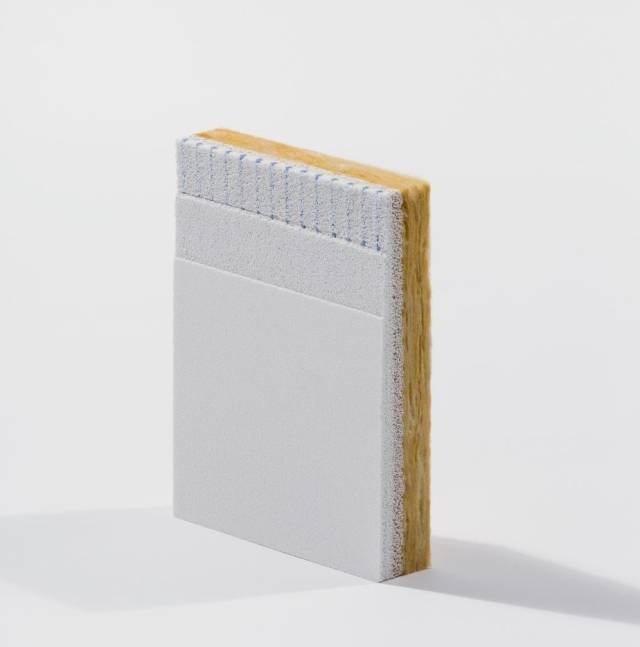

Components:

  • BASWA Fix C cementitious adhesive mortar or BASWA Fix K gypsum adhesive mortar.
  • BASWA Phon acoustic panel.
  • Capillary tube mats PPR.
  • BASWA Fill injected filler layer.
  • BASWA Base first coat layer.
  • BASWA Base, Fine or Top surface layer.

General information
Specification data - Acoustic panel lining systems
Product Reference

BASWA Cool

Thickness

30 mm

40 mm

50 mm

70 mm

Panel adhesive

BASWA Fix C

For cementitious-based substrates.

BASWA Fix K

For plasterboard or Fermacell substrates.

Final layer -
Type

BASWA Base

0.7 mm grain size.

BASWA Fine

0.5 mm grain size.

BASWA Top

0.3 mm grain size.

Colour

NCS S 0500-N

Standard, white.

Special order

Insert BASWA Colour (BC), NCS or RAL colour requirement.

Accessories

Insert requirement; contact manufacturer for information.

Standard product features

Weight:

27-28.5 kg/m².

BASWA Phon:

  • Material: Glass fibre board (pressure and tension-resistant) with a 6 mm open pore pre-coating, constructed from recycled glass granulate (Poraver) organically combined.
  • Size: 600 x 800 mm.

BASWA Fill:

  • Material: Expanded glass granulate based on recycled glass.
  • Grain size: 0.5 - 1 mm.
  • Thermal conductivity: 0.14 W/mK.
  • Drying time (at 20°C/ 50% RH): 72 hours (approximate).

BASWA Base:

  • Material: Marble sand plaster containing acrylic non-water-soluble binder (solvent-free).
  • Grain size: 0.7 mm.
  • Drying time (at 20°C/ 50% RH): 60 hours (approximate).

Final layer:

  • Material: Marble sand plaster containing acrylic non-water-soluble binder (solvent-free).
  • Drying time (at 20°C/ 50% RH): BASWA Base: 60 hours (approximate); BASWA Fine: 48 hours (approximate). BASWA Top: 36 hours (approximate).

Product Options

Panel adhesive:

- BASWA Fix C:

  • Material: Portland cement, calcitic aggregates and mating admixtures.
  • Colour: Cement grey.

- BASWA Fix K:

  • Material: Plaster, calcium carbonate, resin and different reagent.
  • Colour: White/ beige.
  • Drying time (at 20°C/ 50% RH): Hard: 1–1.5 hours; dry: 24 hours.

Literature
Third party certifications
  • CE certified : ETA-No:16/ 0144 (CSTB)
