Application

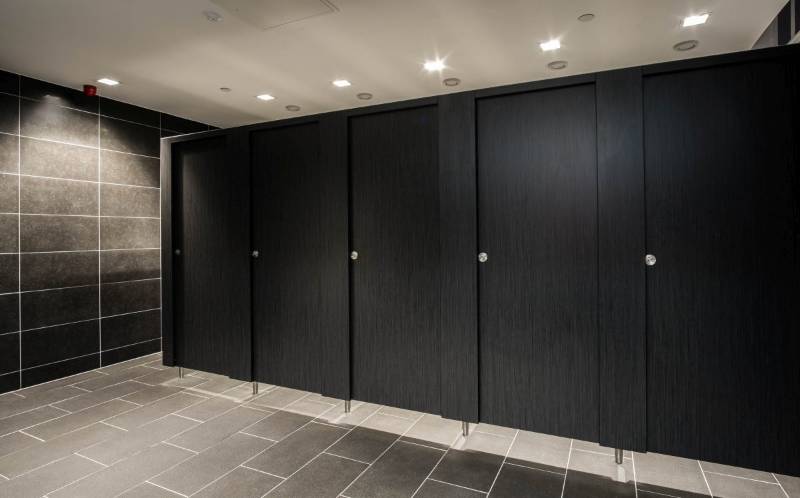

Suitable as toilet cubicles or changing room cubicles.

Description

Features and benefits:

  • Manufactured from 19 mm moisture resistant melamine faced chipboard.
  • Aerofoil profiled headrail.

General information

Color

Sonae.

-

Material

Medium density fibreboard (MDF)

Moisture resistant melamine faced.

Size

1950 mm overall height, including 150 mm floor clearance.

-

Width

1500–1800 mm.

-

Height

1950 mm

Warranty description

One year

From practical completion.

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Basso

Specification data - Panel cubicle systems

Panels

19 mm moisture resistant melamine faced particleboard.

Panel supports

Legs: Tubular and rounded off design manufactured from satin anodized aluminium, fixed to partition panel. Adjustable to suit uneven floor levels.

Pilasters

19 mm moisture resistant melamine faced particleboard.

Doors

19 mm moisture resistant melamine faced particleboard.

Lippings

Edged all round with PVC lipping.

Hardware

Saa indicator bolt.

(compliant with Part M of the Building Regulations).

Coat hook.

D-shaped headrail.

Pedestal legs.

Full length channels.

Stainless steel 4 inch butt hinges.

Colour

To be confirmed from WW standard MFC range.

-

Edge treatment

Edges lipped with matching laminate or corresponding PVC.

Lipped with corresponding PVC.

Lipped with matching laminate.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2015

2

IFC

IFC2X3

2
