Base cabinet with two drawers and pull out

Verified by manufacturer 8 months ago

SieMatic Holding GmbH

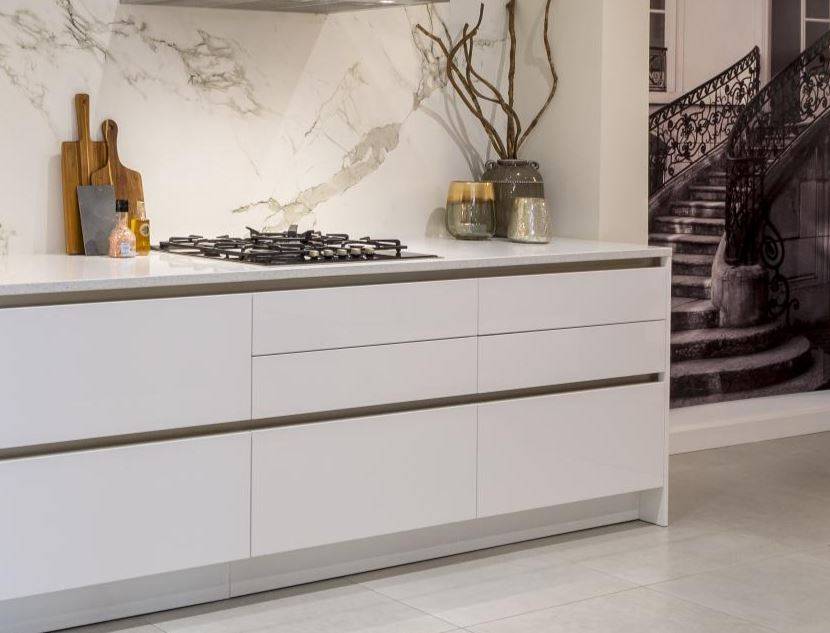

Handle-less base unit with two drawers and a pull out. SieMatic soft close mechanism, plastic lining mats. Recess channel at the top and middle, above the pull out.

Jump to:
BIM object icon
+44 (0)161 660 6895 Website


SieMatic S2, handle-less base unit cabinet with two drawers and one pull out with the SieMatic soft close mechanism and plastic lining mats. Available in height of 78cm, Width of 30cm, 40cm, 45cm, 50cm, 60cm, 70cm, 80cm, 90cm, 100cm, 120cm, Depth of 71cm, 61cm, 46cm, 35.4cm.

The carcass is made up of white, two-sided directly applied triple layer furniture board (emission class E1), 1.6 cm thick. The back wall is 3.0 mm thick hardboard covered with lacquer which protects against moisture. The carcase front edge is an ABS edge, the colour is preselected to match the door front colour but can be changed upon request or fitted with an aluminum coloured edge. All other carcase edges sealed with melamine edging. The carcass front edge is also fitted with a safety profile dust seal in white or grey.

Door styles available in the SieMatic colour system in laminate matt, laminate wood, laminate gloss, SimiLaque velvet-matt, SimiLaque high-gloss, Lacquer matt or gloss, veneer, metal.

General information


The SieMatic colour system






Triple layer furniture board




Rectangular unit


780 x 610 x 300 mm


5 year warranty


Pr_40_30_87_42 Kitchen drawer unitsPrimary


N11/310 Fitted base units

N11/10 Fitted base units and wall units

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
