Barcelona - Freestanding Bath
Verified by manufacturer 3 months ago

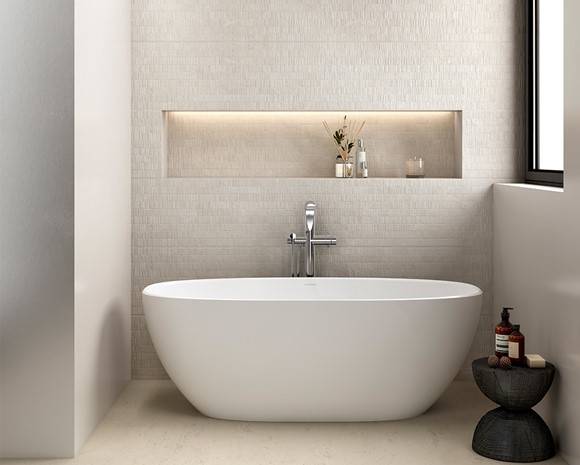

Barcelona 1500 QUARRYCAST™ Standard Matt BA1M-N-SM-NO
Barcelona 1500 QUARRYCAST™ Standard Matt BA1M-N-SM-NO
Freestanding Bath, three sizes. 167 L, 210 L and 236 L capacity.
Application
Luxury freestanding bath suitable for domestic and hospitality settings.
Description
The Barcelona collection is a range of freestanding QUARRYCAST™ baths available in three sizes.
Features and benefits:
- Smooth, pebble-shaped design features a chamfered rim to provide neck and arm comfort.
- Modular sizing and a coordinating range of basins means the Barcelona collection is now accessible for modern bathrooms of all sizes.
- Designed to work in conjunction with Kit 36 and Kit 40 IntelliDrains. (no overflow required)
- Features a void space underneath for waste plumbing.
- Made with QUARRYCAST™ a unique blend of Volcanic Limestone™ and high-performance resins.
- Delivers unrivalled strength, durability, and beauty.
- Available in a gloss or matt finish.
- Available in range of RAL colours.
General information
Color | White Other |
Finish | Gloss Matt |
Material | Limestone Stone |
Shape | Oval |
Length | 1500 mm 1700 mm 1800 mm |
Width | 724 mm 808 mm 866 mm |
Height | 532 mm 539 mm 559 mm |
Warranty description | Eight year Guidance for specification option: Commercial use. 25 year Guidance for specification option: Residential use. Two year Guidance for specification option: Paint finish exterior. Manufacturer guidanceNote: Commercial and residential warranties indicated are for QUARRYCAST™ white products only. Paint finish exterior guaranteed for two years. |
Uniclass | |
CAWS | N13/355 Baths N13/35 Baths |
Specification data - Baths
Form | Free-standing. |
Materials | QUARRYCAST™ volcanic limestone. |
Colour | Matt, RAL.Guidance for specification option: 199 RAL colours available, consult manufacturer and insert requirements. |
Size | 1500 x 724 mm. |
Volume to overflow (maximum) | 256 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | No overflow hole.Guidance for specification option: Drill as required. |
Material Finish | QUARRYCAST™ standard matt. |
Dimensions – height | 532 mm. |
Weight | 80 kg. |
Recommended discharge pipe | Not required. K-12-xx. K-17-xx. K-36-xx. Manufacturer guidance(Recommended wastes): |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
EU_Barcelona_1700_2022
EU_Barcelona_1800_2022
EU_Barcelona_Classic_2022
EU_Barcelona_1500_2023
