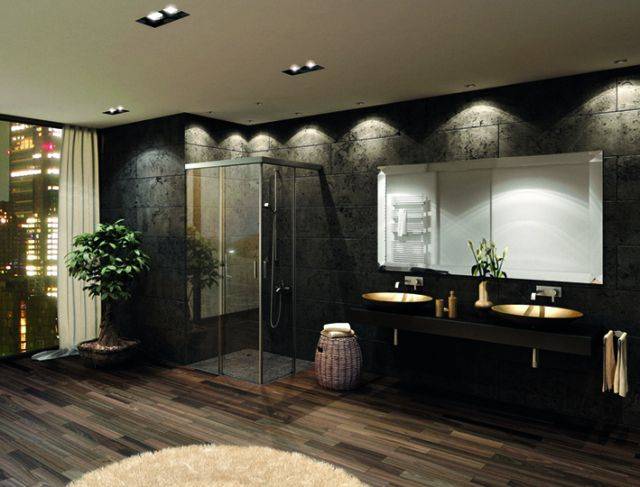

Banio 40 GFE (Shower enclosure hardware)

Verified by manufacturer 23 days ago

Hawa Sliding Solutions AG Third party certifications:
  • EPD

    EPD

    Certificate type

Top running sliding track designed for two all-glass doors, weighing up to 40 kg.

Jump to:
+41 44 787 17 17 Website

Application

Suitable for sliding or fixed glass door combinations in locations such as:

  • Bathrooms.
  • All-glass corner showers.
  • All-glass doors.
  • Private living areas.
  • Interior furnishings.

Description

Designed for two top-running all-glass doors, weighing up to 40 kg each. The glass panels are held at the top by glass clamp shoes that are connected to the running gears. The running equipment moves inside a running track that is also equipped with a fixed glass holder. The soft closing is mounted invisibly in the running track.


Features and benefits:

  • Invisible technology and clean profiles create transparency.
  • Invisible soft close in opening and closing direction.
  • Integrated into running track.
  • Multiple hardware combinations are available.
  • Hygienic use: Sliding doors that pivot without the need for tools, spray and leak-proof closures.
  • Efficient and economical: Simple, quick assembly and installation.


Suitable for use with door panels:

  • Panel thickness: 8–10 mm.
  • Maximum panel width: 800 mm.
  • Maximum panel height: 2200 mm.
  • Maximum panel weight: 40 kg.


Components:

Quantities of each component may vary dependent on variant specified, consult manufacturer for details.

  • Fittings available individually or in set with track.
  • Set for glass wall mounting (clip-on panel).
  • Clip-on panel, to obscure running track.
  • Spare parts available on request.
  • Wall mounting set.
  • Corner connector.
  • Running track.
  • Bottom guide.
  • Panel.

General information

Finish

Anodized

Gloss

Material

Aluminium

Shape

Rectangle

Warranty description

Two year

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

Product range

Glass Sliding Doors

Specification data - Door track and running gear

Standard

To EN 14428/5.5.

Third-party certification

Internal testing.

Classification grades (minimum)

-

Durability

20,000 cycles.

Material/ Finish

Anodized.

Gloss.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Recyclability

Yes

EPD

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

EPD

EPD

Hawa EPD Glass door gear EN
